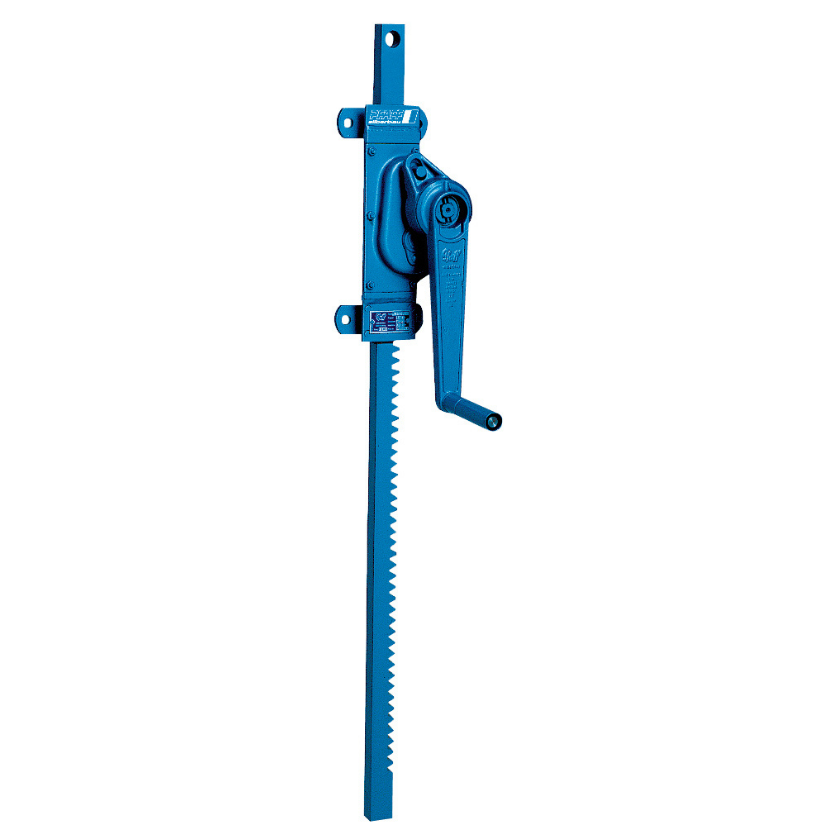

Pfaff ZWW 1500kg Rack & Pinion Jack

Pfaff ZWW 5000kg Rack & Pinion Jack – 700mm Lift

by Pfaff-silberblau
£880.32 - £880.32
£880.32
£880.32 - £880.32
£880.32

Delivery Lead-Time from Order

The current lead-time for this product if not in stock in our warehouse can vary from 3 to 4 weeks.

If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with a 3 to 4 week lead-time please pre-order online and we will confirm order details by email after you have ordered.

Description

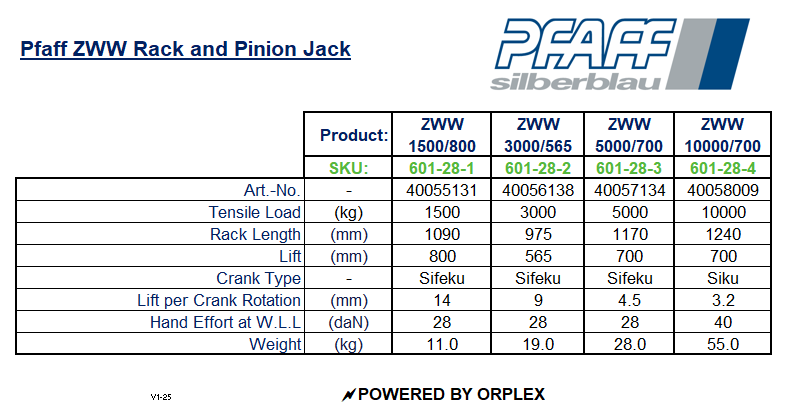

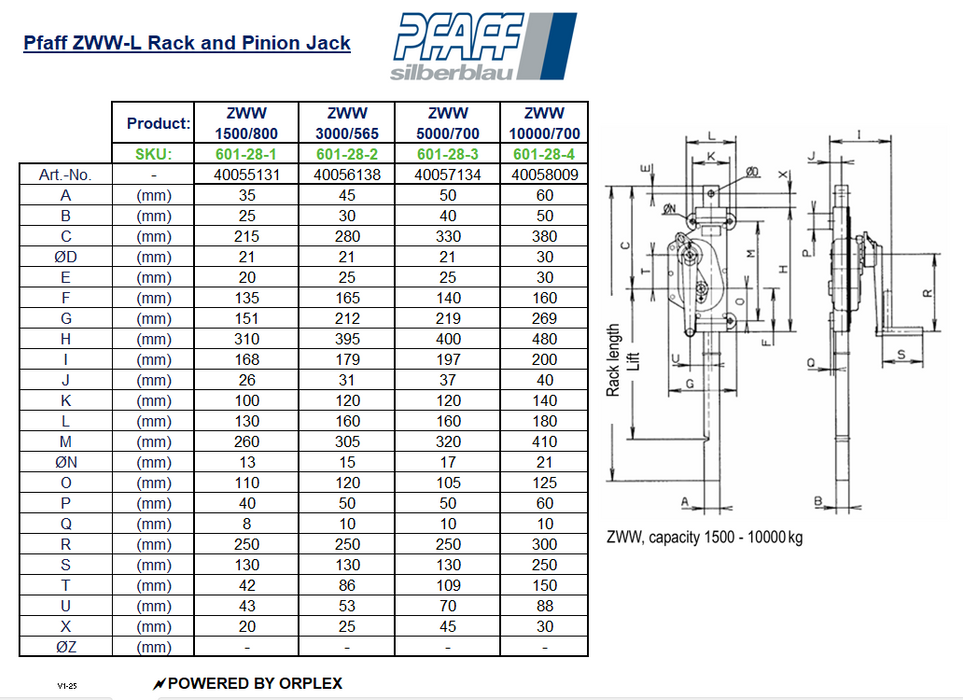

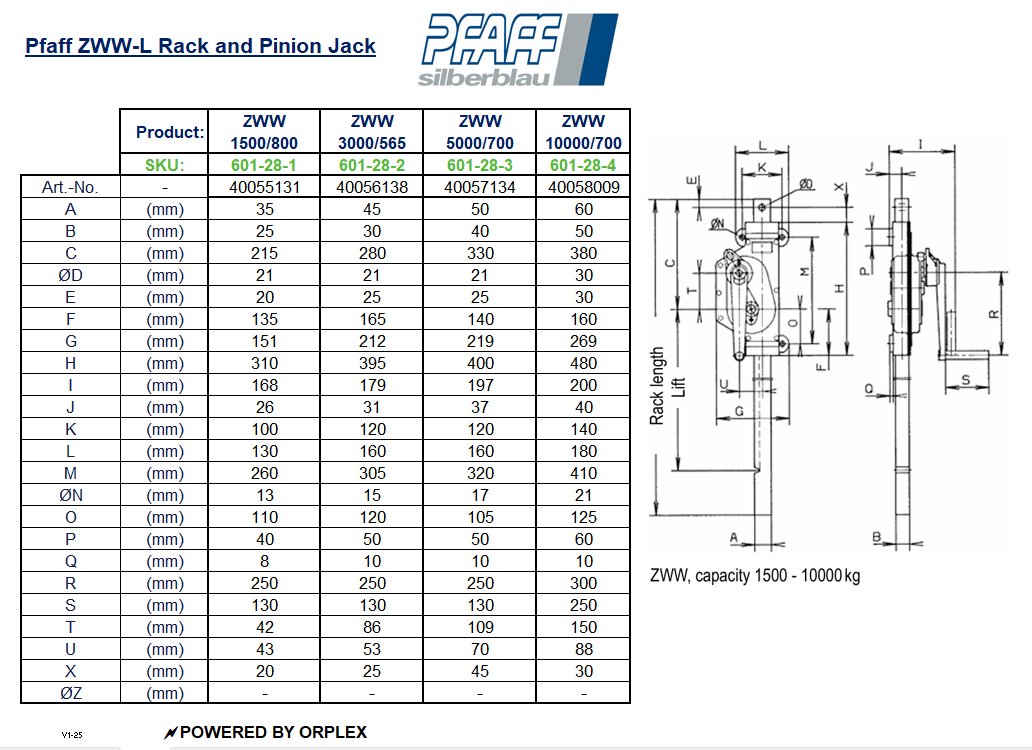

Pfaff ZWW 5000/700 Rack & Pinion Jack with Sifeku – 5000kg Capacity, 700mm Lift

Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.

Features

  • Robust steel design with precisely machined worm and spur gears for smooth and easy manual operation.
  • Solid steel rack with additional bore hole for fastening of the load.
  • Low wear owing to hardened gearing parts and precisely machined teething.
  • Up to 1200 kg lifting load for pushing or pulling loads are equal.
  • At standard tensile load from 1500 - 10000 kg. Compressive load possible on request.
  • Rigid wall mounting.
  • Sifeku Crank Handle

Optional

  • Improved corrosion protection owing to zinc-plating or special coating of rack (from capacity 1500kg).
  • Different rack length on request.
  • Symmetrical toothing for model ZWW on request.

Atex Version Available
