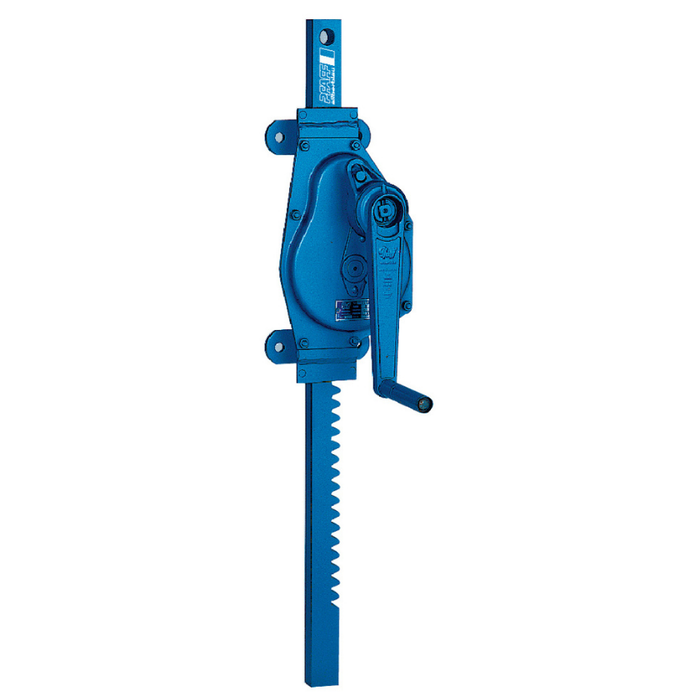

Pfaff ZWW 10000/700 Rack & Pinion Jack with Siku – 10000kg Capacity, 700mm Lift
Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.
Features
- Robust steel design with precisely machined worm and spur gears for smooth and easy manual operation.
- Solid steel rack with additional bore hole for fastening of the load.
- Low wear owing to hardened gearing parts and precisely machined teething.
- Up to 1200 kg lifting load for pushing or pulling loads are equal.
- At standard tensile load from 1500 - 10000 kg. Compressive load possible on request.
- Rigid wall mounting.
- Siku Crank Handle
Optional
- Improved corrosion protection owing to zinc-plating or special coating of rack (from capacity 1500kg).
- Different rack length on request.
- Symmetrical toothing for model ZWW on request.
![]()
Atex Version Available
