Pfaff SW-K GAMMA 500KG Console-Mounted Aluminium Rope Winch

SKU 601-5-2
Availability:
In stock
Original price £1,123.57 - Original price £1,123.57
Original price
£1,123.57
£1,123.57 - £1,123.57
Current price £1,123.57

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

🚚 Order within the next 2 hours, 15 minutes for delivery by 08 Dec, 2025.

Description

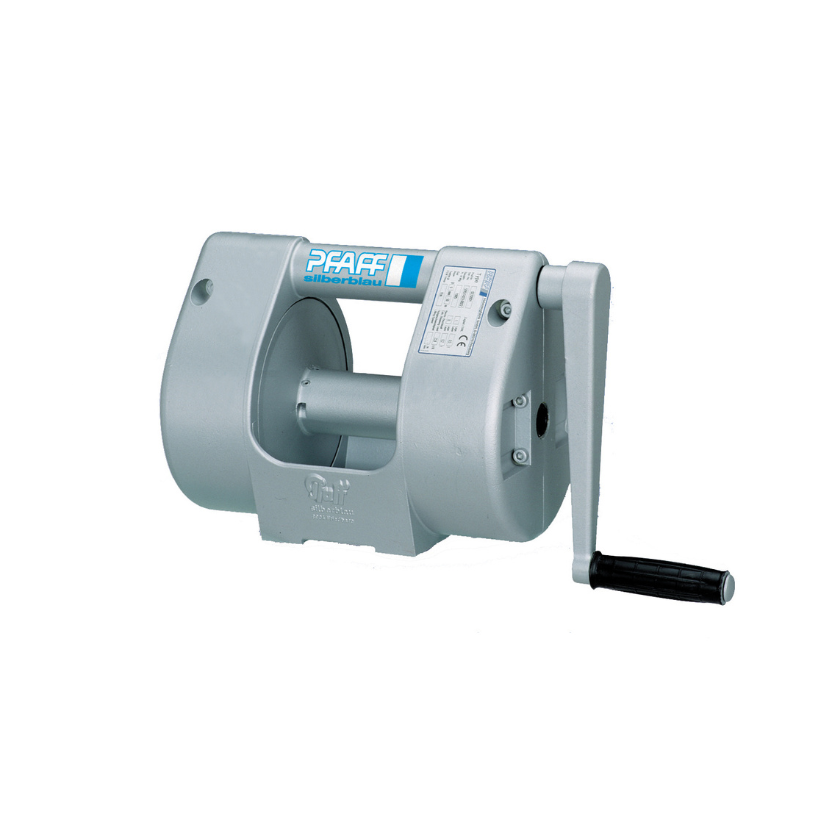

Pfaff SW-K GAMMA 500 Console-Mounted Aluminium Rope Winch - 500kg Capacity

Due to its rugged design, the aluminium rope winch is suitable for operation outdoors

Features and benefits include:

  • Compact aluminium housing and enclosed sprocket wheel drive. From a capacity of 500 kg with speed increasing ratio for small loads and quicker winding and unwinding of the unloaded rope.
  • Spur gear drive for optimal efficiency and comfortable handling.
  • Enclosed gear for the protection of parts inside, also for arduous applications.
  • Low-friction shaft sliding bearings for improved rope lead-off and a longer service life of the winch.
  • Wide rope drum for a large rope capacity with two rope attachment points.
  • Easy and quick mounting.
  • With integrated safety spring brake system and removable crank. The winches can be operated from either side.

Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

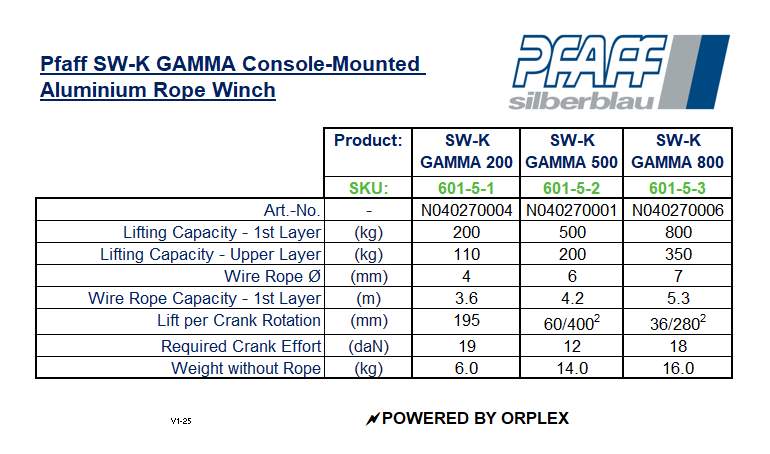

Specification

Specification

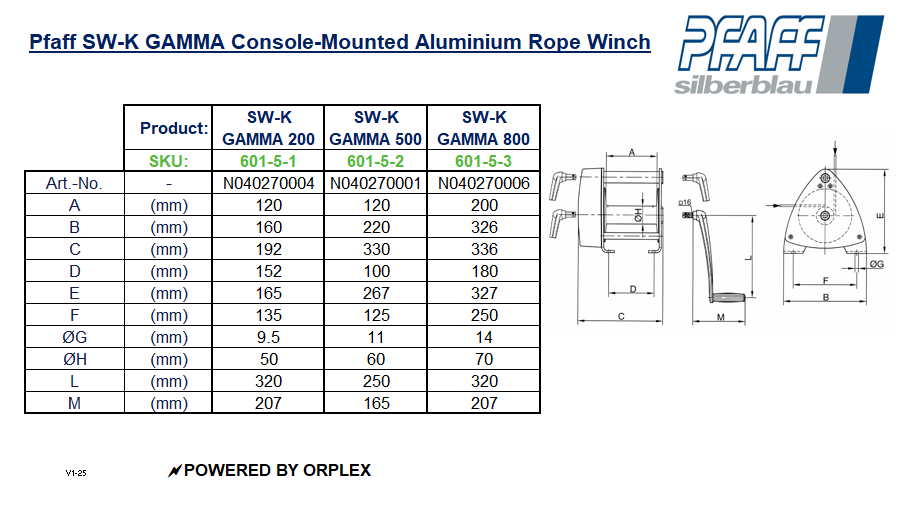

Dimensions
