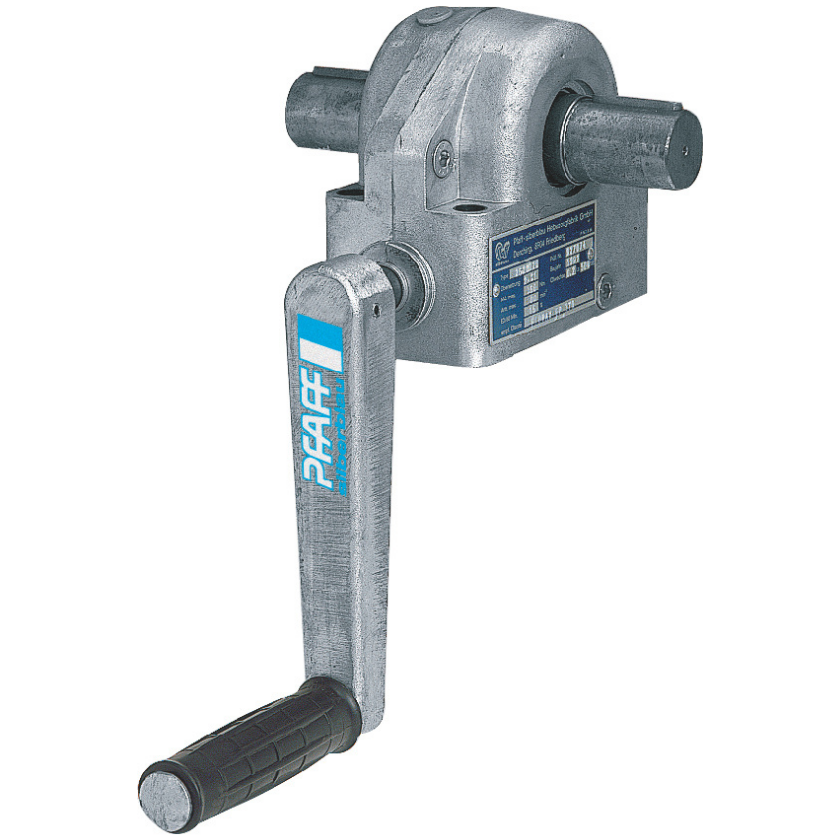

The Pfaff S24 worm gear gearbox is a hand operated drive unit with a 24:1 ratio and a self-locking worm gear that holds the load in any position at standstill.
Pfaff S24 worm gear gearbox features
The higher 24:1 ratio makes the S24 easier to turn by hand at a lower output speed than the S20, so it suits heavier or more controlled moving and rotating of loads, driving rope drums or sprockets as a self-locking worm gear gearbox.
-
Enclosed housing protects the internal parts
-
Enclosed, precisely machined gear for little effort and a long service life
-
24:1 reduction ratio for extra mechanical advantage
-
Manual rotary drive unit for construction and materials handling
-
Weight 8 kg
Specification and lubrication
-
Lubricating grease to DIN 51826 (DIN 51502) GPOH, lubricant quantity 200 cm3
-
Type 032626 020 / 032626 999
For the faster 20:1 option see the Pfaff S20 worm gear gearbox. See more lifting gear in our worm gear winches range.
