Recently upgraded, the Warrior Ninja is a levelled-up version of the extremely popular C 2000A model. With no rivals on the market and no comparisons in strength, the Ninja is a truly outstanding offering thanks to its unique freespool system.
Built to last, the Ninja is packed with life-lengthening, strengthening features such as full steel planetary gearing, chip-resistant paint and a strengthened steel drum. Also protected for all weather, both the controller socket and contactors are watertight. Powered by a sealed high-power motor, you can rely on this heavy-duty winch.
With a line capacity of 2000lb or 907kg, and a pull of 1.0m per minute at full load – you can get the job done with ease. Unbeatable on pulling power, you can also get a handlebar control as an optional extra for ATV application.
If you prefer your 12v ATV electric winch with a steel cable, please view this option - our SKU 161-7-1
Standard Features:
-
Line Capacity: 2,000lb (907kg)
-

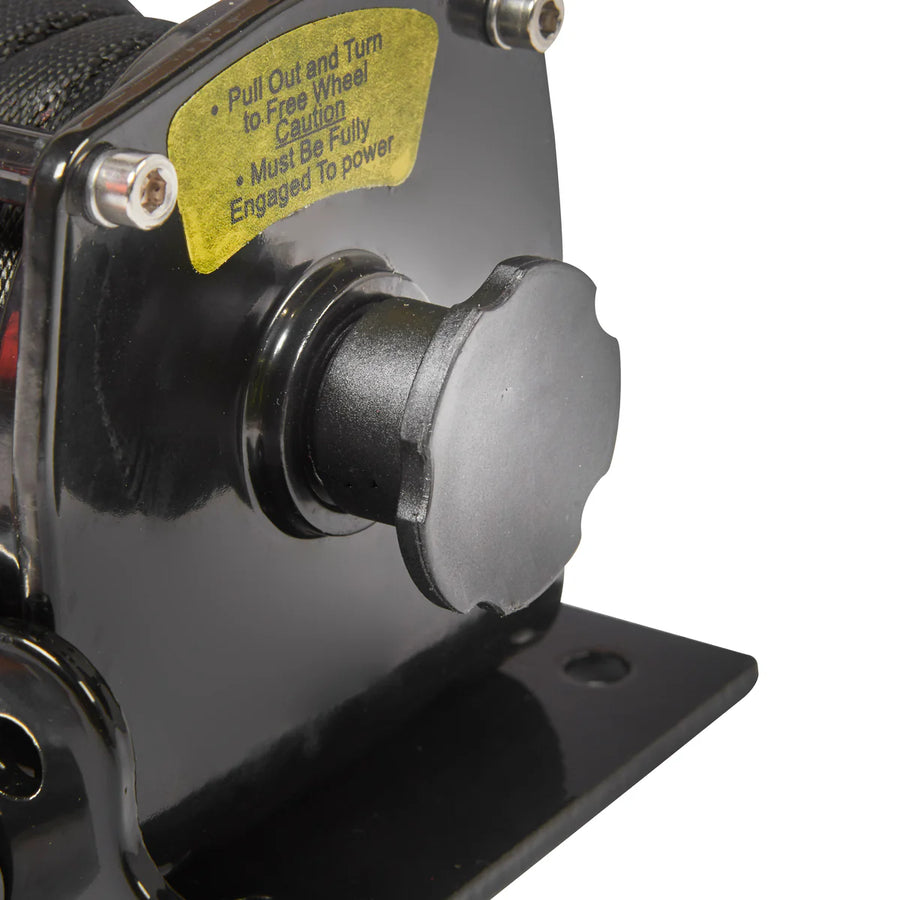

Gearbox: Freespooling Clutch - Allows cable to be unwound manually
-
Warranty: 12 Month Return to Base
Accessories:
-
Wired Hand Control: 3m Wired Hand Control
-
Wireless Control: Available as optional extra
-
Mounting Plate: Included
-
Mounting Bolts: Included for Standard installations
- 1.6m Heavy Duty Battery Cables (May need extending dependant on application)
- 2t Hook Type Pulley Block
- Instruction Manual
Other Information:
-

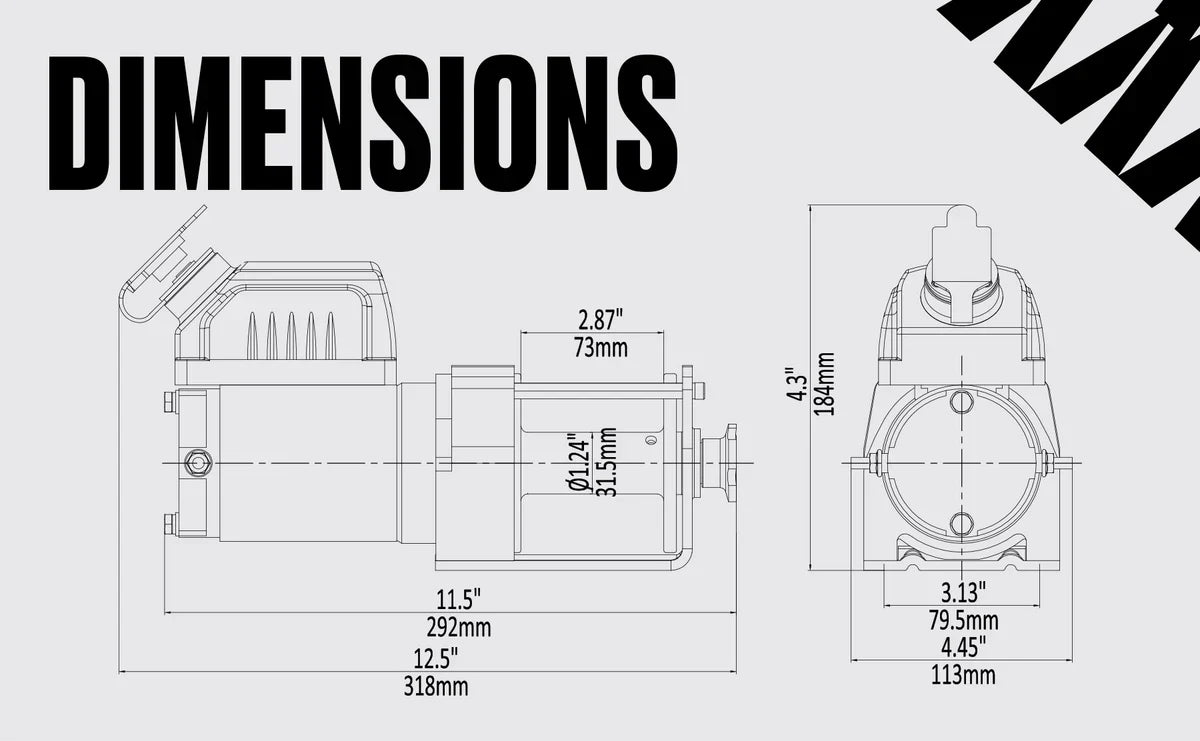

Dimensions: 308mm L x 113mm D x 150mm H
-
Mounting Bolt Pattern: 79.5mm
-
Approx. Shipping Weight: 7kg
-
Line Pull- No Load: 3.2 m/min (12 Amps)
-
Line Pull - Full Load: 1.0 m/min (90 Amps)
Note: For the majority of applications the synthetic rope supplied with this winch will need to be removed from the drum, fed through the hawse fairlead once it is mounted in place and then the cable re-wound onto the drum. A fixed hook will not (and should not) feed through the fairlead
Accessories Included
Specification

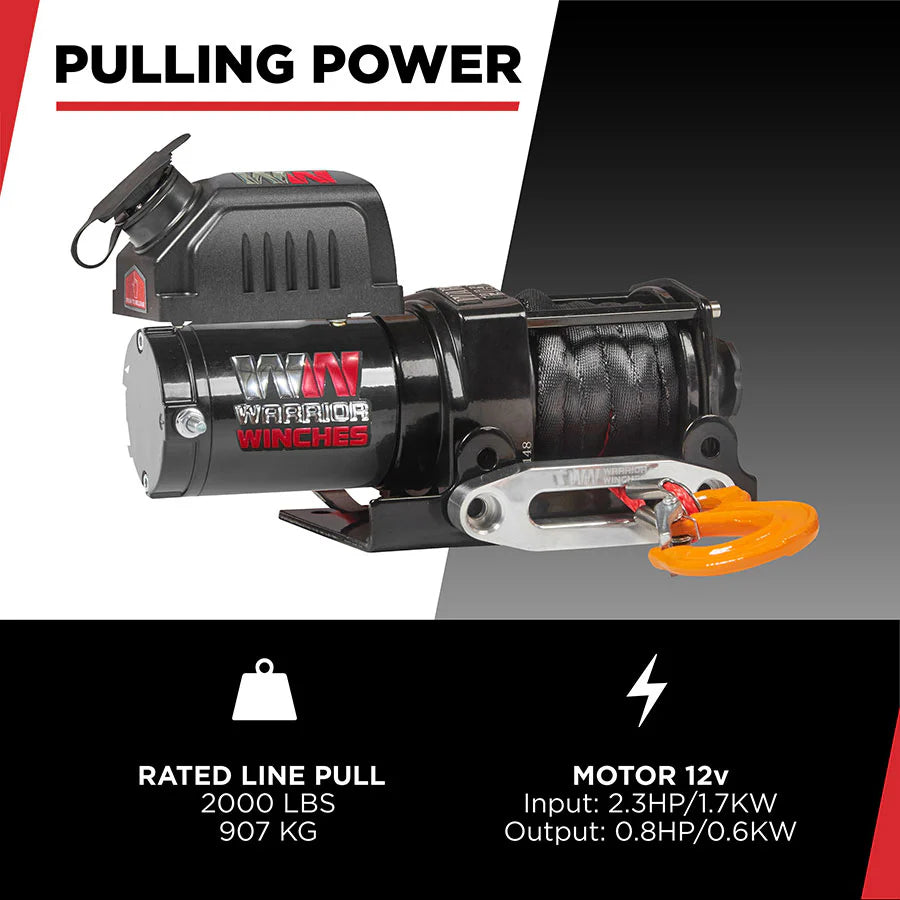

| Rated Line Pull |
2000 lbs |
| Motor Type |
12V: Input: 2.3hp / 1.7kW; Output: 0.8hp / 0.6kW
24V: Input: 2.6hp / 1.9kW; Output: 0.9hp / 0.7kW |
| Gearing |
153:1 |
| Clutch |
Manual |
| Braking Action |
Dynamic |
| Drum Size (Dia x L) |
31.5 x 73 mm |
| Cable Material |
Synthetic |
| Cable – Dia x L |
Synth: 5mm x 15m |
| Mounting Pattern |
79.5 mm : 2-M8 mm |
| Dimensions |
318 x 113 x 184 mm |
| Weight |
5.5kg |
| Warranty |
3 Years |
| Certification |
CE, UKCA |
| Layer of Rope/Cable |
Line Pull: lbs(kgs) |
| 1 |
2000 (907) |
| 2 |
1630 (739) |
| 3 |
1380 (1190) |
| 4 |
1190 (540) |
| 5 |
1050 (476) |
| 6 |
940 (426) |
Line Pull
lbs (kgs) |
Line Speed 12v
ft/min (m/min) |
Amp Draw
12v |
Amp Draw
24v |
| 0 |
10.5 (3.2) |
12 |
6 |
| 500 (227) |
9.2 (2.8) |
25 |
10 |
| 1000 (454) |
7.5 (2.3) |
40 |
15 |
| 1500 (680) |
5.9 (1.8) |
60 |
25 |
| 2000 (907) |
3.3 (1.0) |
90 |
55 |

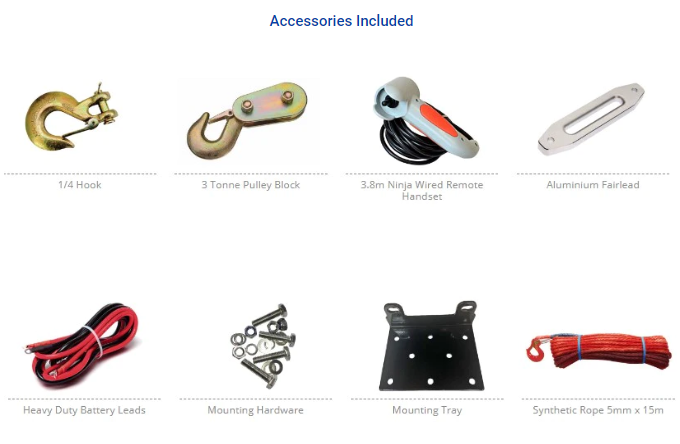

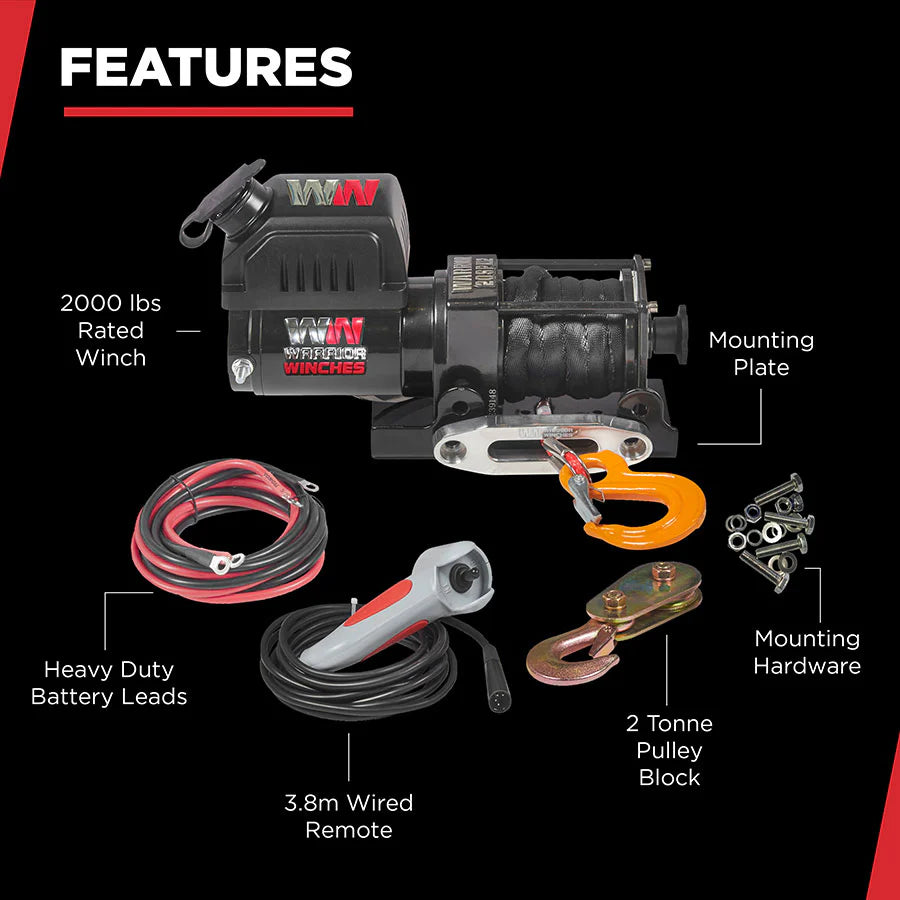

What's included with the winch in the box:
- 1/4 Hook
- 2 Tonne Pulley Block
- 3.8m Ninja Wired Remote Handset
- Aluminium Fairlead
- Synthetic Rope
- Mounting Tray
- Mounting Hardware
- Heavy Duty Battery Leads
