RUNPOTEC - MULTI-FUNCTION MANDREL

RUNPOTEC - MULTI-FUNCTION MANDREL

by RUNPOTEC
SKU 123-1-38
Availability:
3 in stock, ready to be shipped
£61.80 - £61.80
£61.80
£61.80 - £61.80
£61.80

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

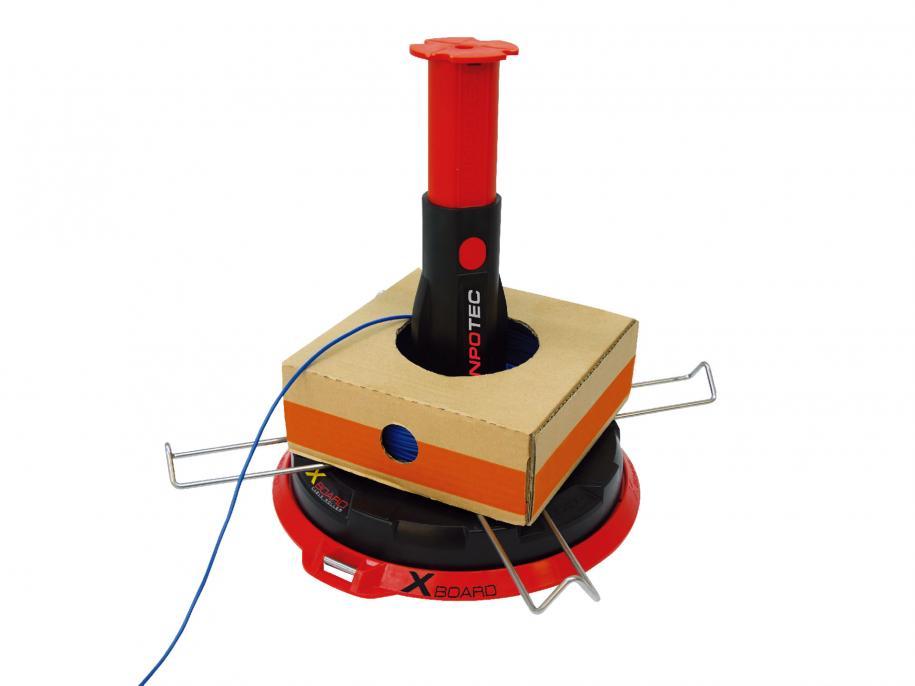

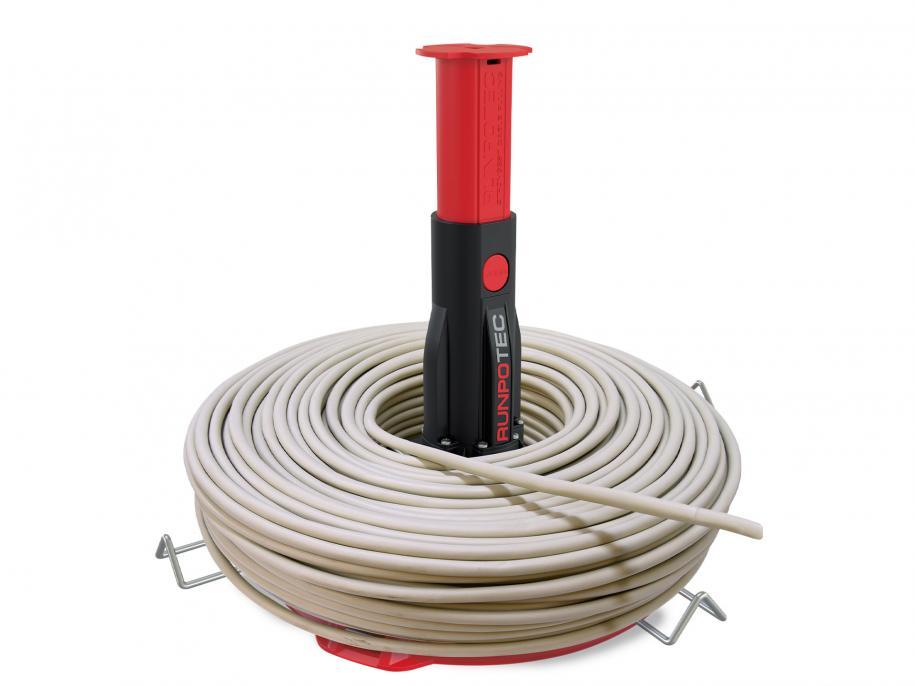

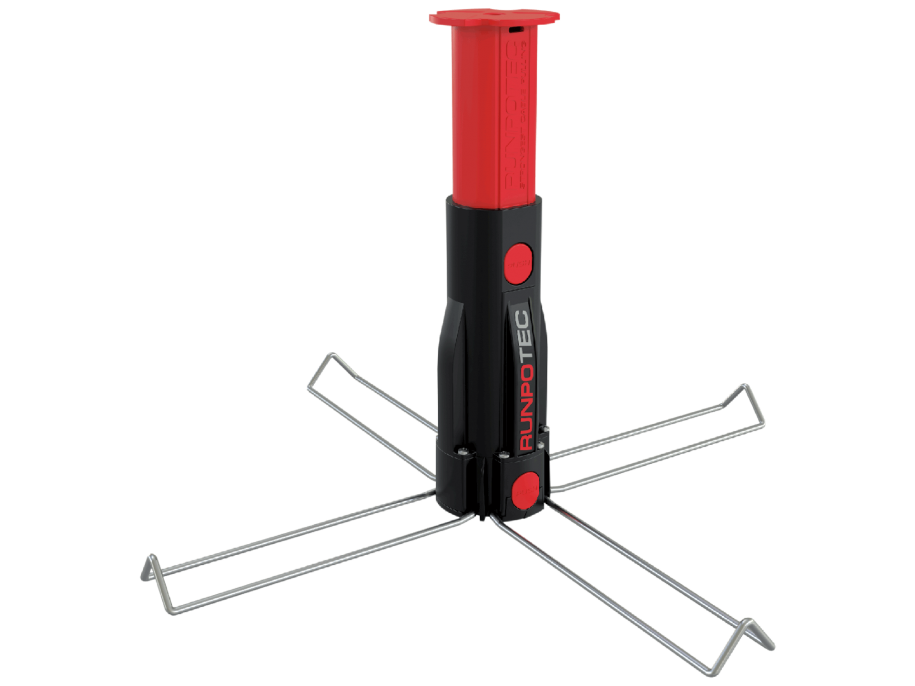

The multi-function mandrel has been specially developed for the X BOARD XB 300 and XB 500 cable rolling systems. Loose cable bundles can also be rolled by attaching them to the stainless steel centre mandrel of the XB 300 and then folding out the 4 side brackets. The telescopic centre mandrel measures 72 mm in diameter. It
is therefore also ideal for rolling a thinner cable bundle with a small inner diameter or individual wires. The normal height of the multi-function mandrel is 196 mm, which can be extended up to max. 294 mm via the telescopic mechanism. This means high cable bundles or corresponding tube bundles can also be rolled. When the 4 side brackets are unfolded, there is a total contact surface of 430 mm in diameter. Ideally, this should correspond to the respective cable or tube bundle. A designated opening allows the unit to be combined with the RUNPOSTICKS.

Optimum area of application: rolling of loose cable bundles or individual wires up to a max. height of 294 mm and a max. diameter of 430 mm
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.

Scope of delivery: 1 x multi-function mandrel

ADVANTAGES

  • Can be used in combination with XB 300 and XB 500
  • allows loose cable bundles and individual wires to be rolled
  • Telescopic centre mandrel, ex- tendable up to 294 mm
    this allows high cable bundles or corre- sponding tube bundles to be accommodated

Spec

Diameter: Unfolded: Height 294 mm, Ø 430 mm Closed: Height 196 mm, Ø 72 mm
Weight: 0,49 kg
Material: Special plastic
EAN-Code: 9120045476538

Tech Area

Duct rod data sheetProduct Data Sheet
