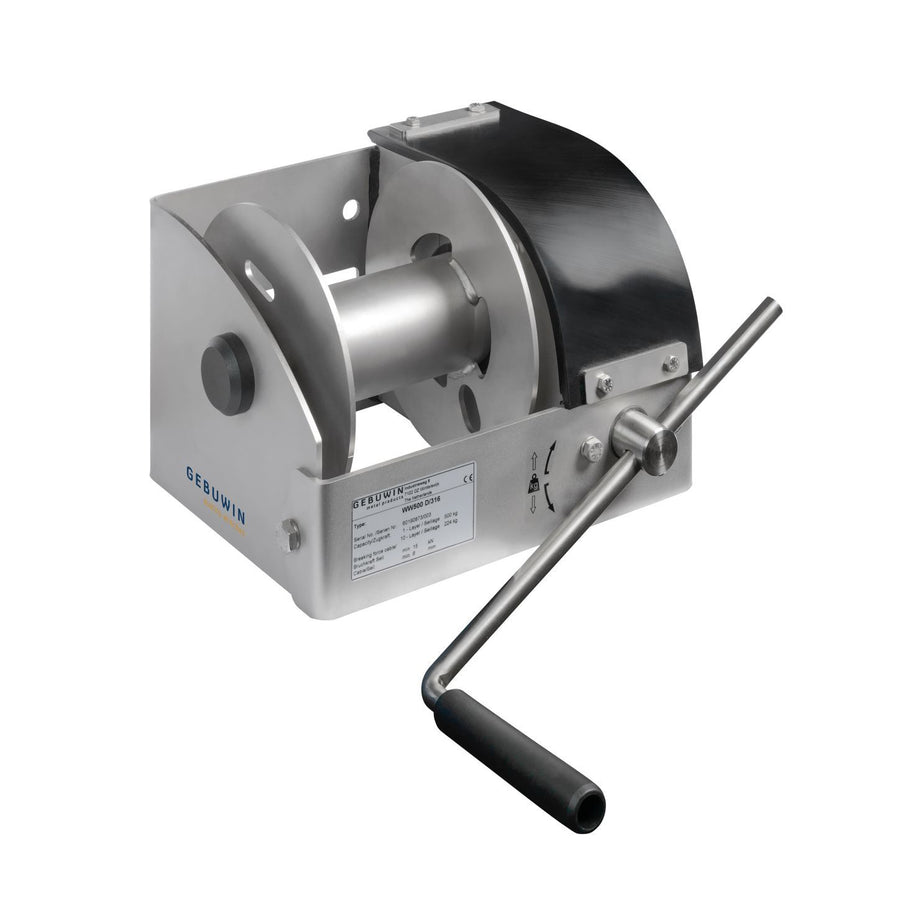

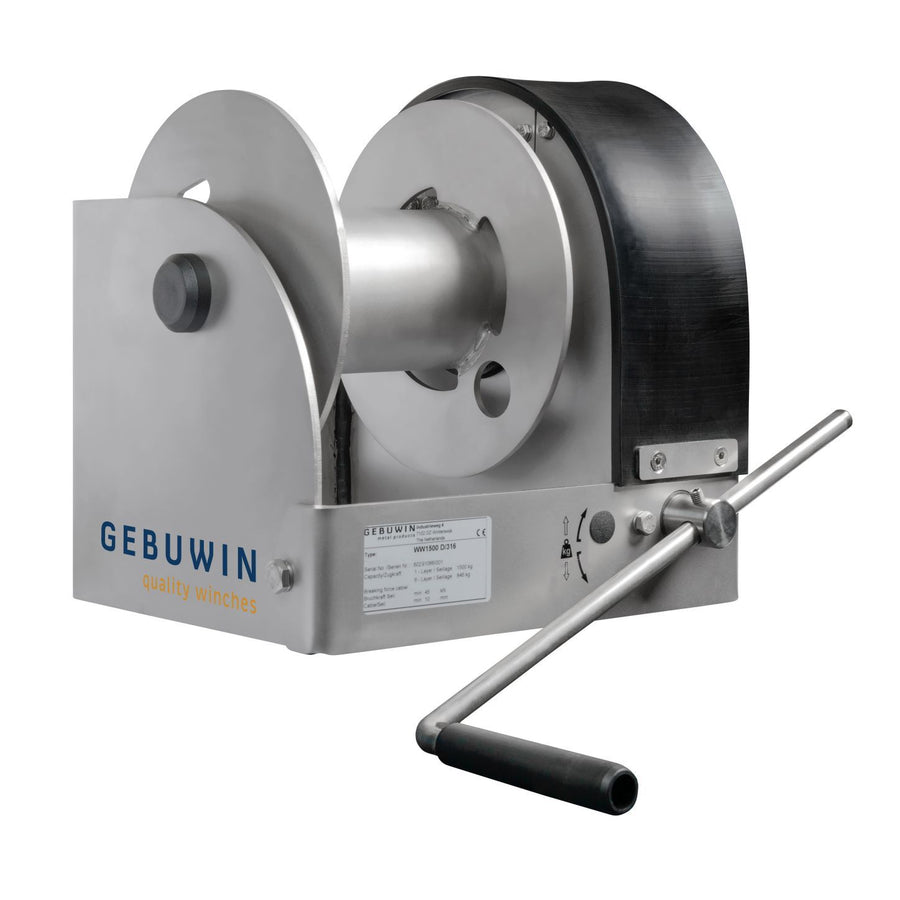

MR5000 (SST) Marine Worm Gear Winch 5000kg

The MR5000 (SST) marine worm gear winch is a 5000kg Gebuwin hand winch built entirely in 316 stainless steel for demanding salt water, marine and offshore work.

5000kg stainless steel marine worm gear winch

Rated 5000kg on the first rope layer, this is the heaviest model in the SST range, combining a full stainless steel 316 body, drum, crank and outgoing parts with a load pressure brake and double ratchet system for a safe, stable hold.

• 5000kg first layer capacity for lifting and pulling

• Complies with EN13157 and DIN 15020, static safety factor 4:1

• Closed IP54 gearbox resists splashing water and dust

Full stainless build for offshore duty

The all stainless construction delivers a very high corrosion resistance rating, distinct from the painted C5M 5000kg model, with the cable outlet configurable upwards, downwards or at the rear.

• Single, twin drum and ATEX options available

• Pre-order item, lead time approximately 3 to 4 weeks

Explore painted and stainless options in our Marine Grade Winches range.

Note: These are not a stocked item, so lead-time from order point is approx. 3 to 4 weeks but would be confirmed on order. Please email your enquiry for these models to sales@winchshop.co.uk

Specification

• Robust and safe lifting and pulling winch in compliance with EN13157, DIN 15020
• Static safety factor 4:1
• Two lifting speeds (3t and 5t only)
• Right angled, easy to grease worm transmission and maintenance free bearings
• Load pressure brake with double ratchet system for safe stable hold of the load
• Closed gearbox to protect against environmental influence – protection classification IP54
• Cable outlet upwards, downwards or at rear

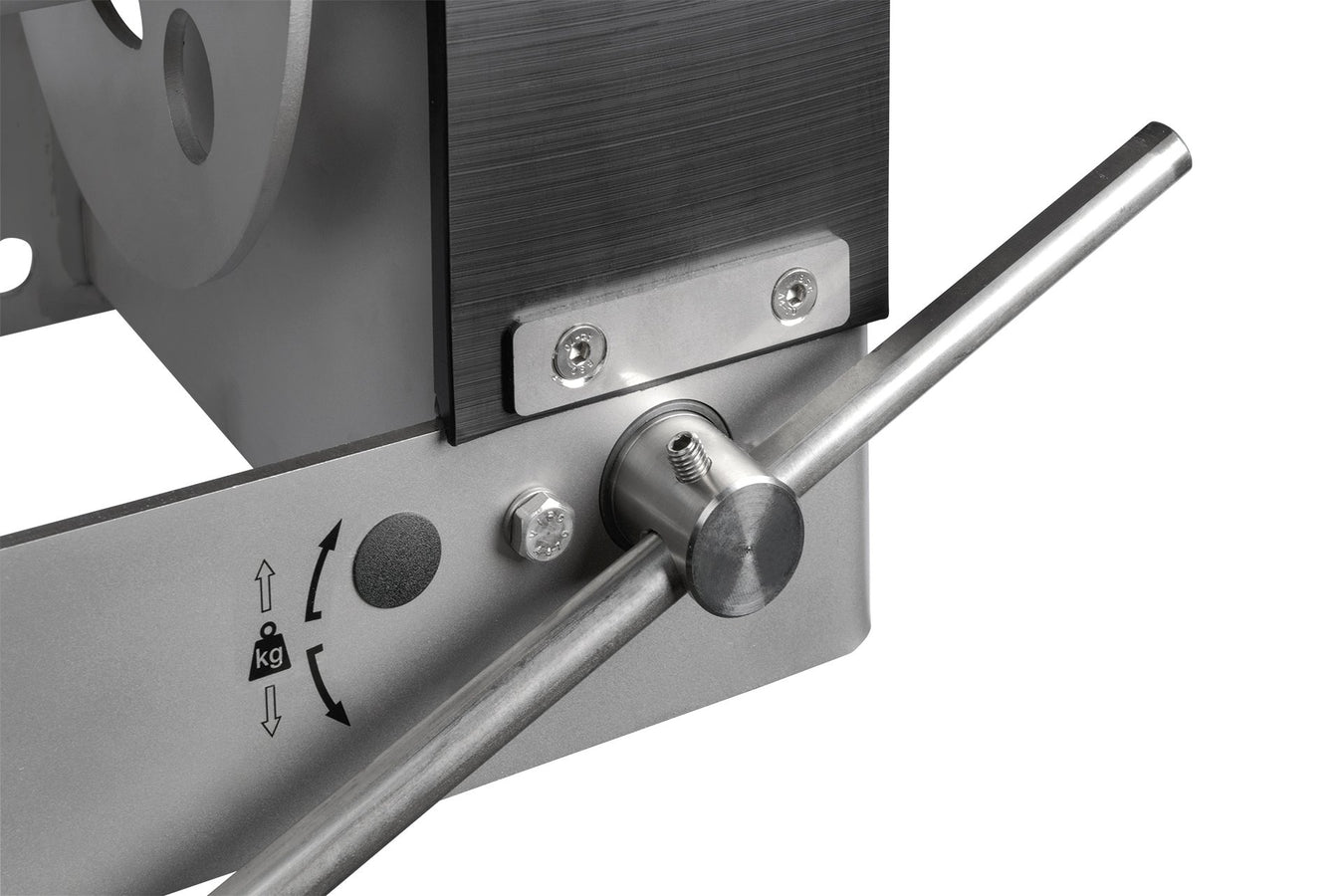

• Adjustable crank, with ergonomic grip
• Suitable for wall and floor mounting
• Large rope capacity
• Simple and quick attachment
• Full stainless steel 316 body, drum, crank and all outgoing parts
• Corrosion resistant
