MR500 (SST) Marine Worm Gear Winch 500kg

by Gebuwin
SKU 156-30-1
Availability:
Out of stock
Availability:
Out of stock
Sold out
Original price £1,236.00 - Original price £1,674.00
Original price
£1,236.00
£1,236.00 - £1,674.00
Current price £1,236.00

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

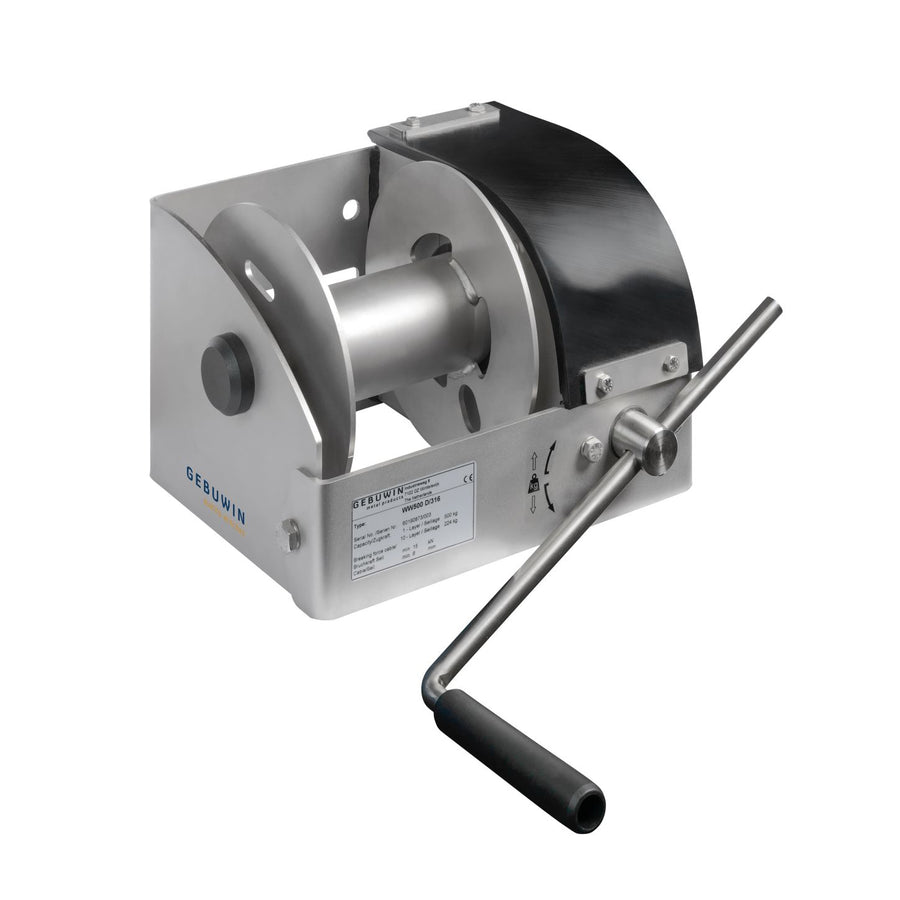

The MR500 (SST) marine worm gear winch is a 500kg Gebuwin hand winch in full 316 stainless steel, sized for light marine, offshore and salt water lifting and pulling.

500kg stainless steel marine worm gear winch

This entry capacity model is rated 500kg on the first rope layer and runs a fine 8mm rope, making it the lightest, most portable winch in the SST range at just 16kg.

  • 500kg first layer capacity, 8mm rope diameter

  • 16kg unit weight, rope capacity up to 40.2m

  • Complies with EN13157 and DIN 15020, static safety factor 4:1

Compact corrosion resistant 316 build

Full stainless steel 316 body, drum, crank and outgoing parts give a very high corrosion resistance rating, while the closed IP54 gearbox keeps out splashing water and dust for reliable light duty marine access work.

  • Single Drum model held in UK stock

  • Twin Drum and ATEX are pre-order, approximately 3 to 4 weeks

See heavier capacities in our Marine Grade Winches range.

Note: Whilst we generally stock the Single Drum Model, the Twin Drum and ATEX models are not a stocked item in the UK, so lead-time from order point is approx. 3 to 4 weeks but would be confirmed on order. Please email your enquiry for these models to sales@winchshop.co.uk

Specification

  • Robust and safe lifting and pulling winch in compliance with EN13157, DIN 15020
  • Static safety factor 4:1
  • Two lifting speeds (3t and 5t only)
  • Right angled, easy to grease worm transmission and maintenance free bearings
  • Load pressure brake with double ratchet system for safe stable hold of the load
  • Closed gearbox to protect against environmental influence – protection classification IP54
  • Cable outlet upwards, downwards or at rear

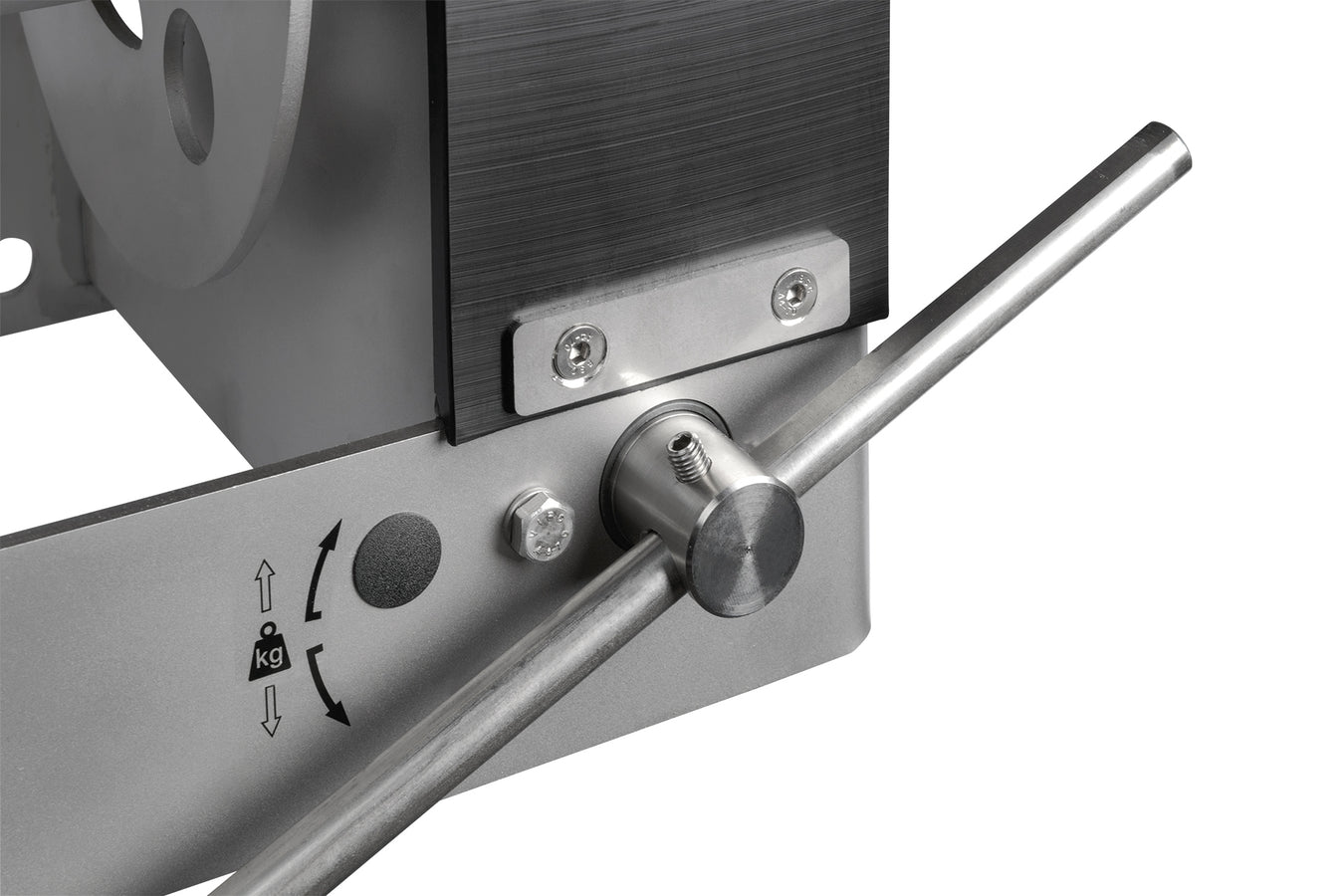

  • Adjustable crank, with ergonomic grip
  • Suitable for wall and floor mounting
  • Large rope capacity
  • Simple and quick attachment
  • Full stainless steel 316 body, drum, crank and all outgoing parts
  • Corrosion resistant

Tech Area

Capacity 1st layer

500 kg

Capacity 4th layer

326 kg

Capacity top layer

242 kg

Rope diameter-Ø

8 mm

Rope storage 1st layer

3,2 meter

Rope storage 4th layer

18,5 meter

Rope storage top layer

40,2 meter

Lift per crank rotation

20 mm

Crank effort at full load

10 daN

Weight (without rope)

16 kg

Cable JacksData sheet
