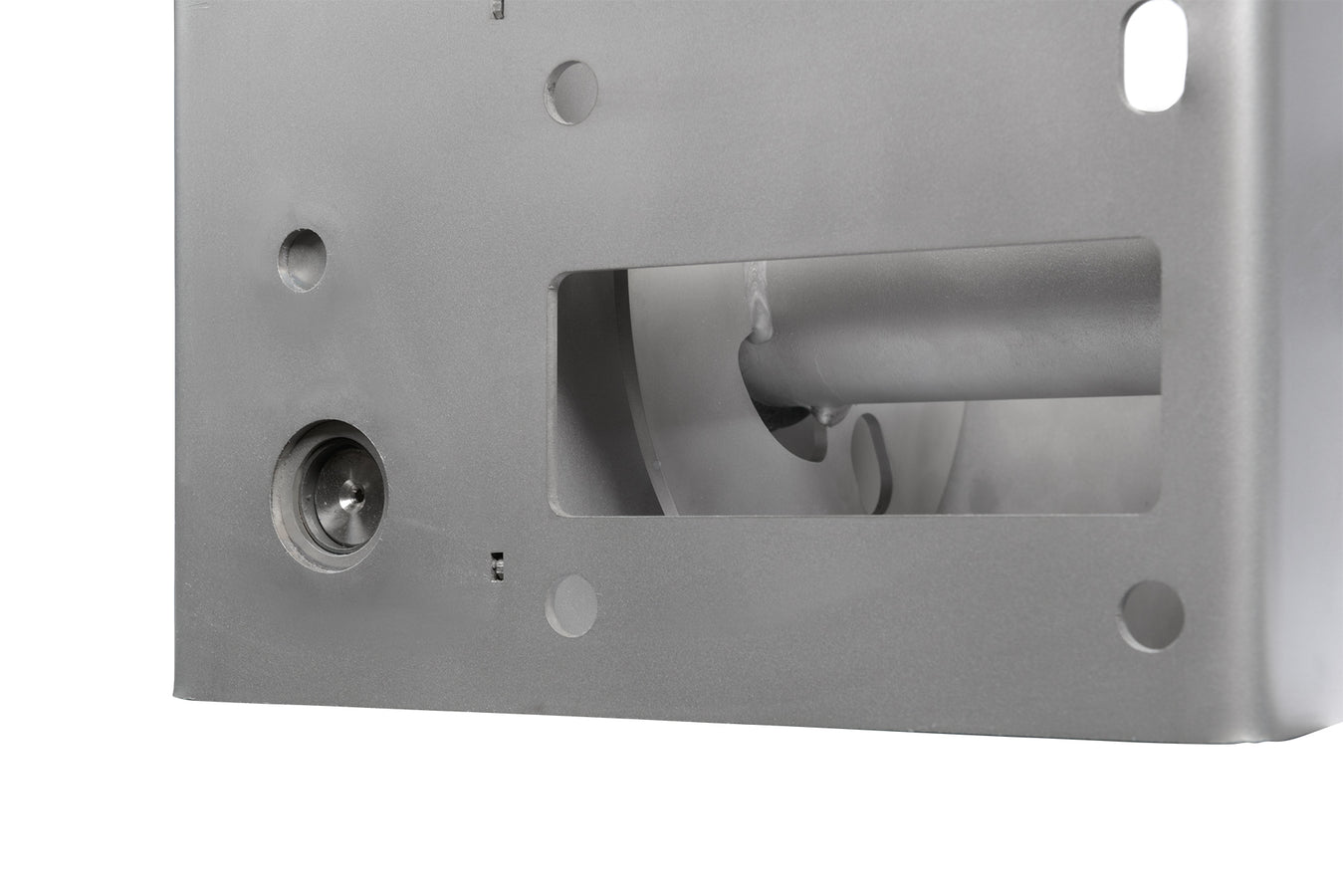

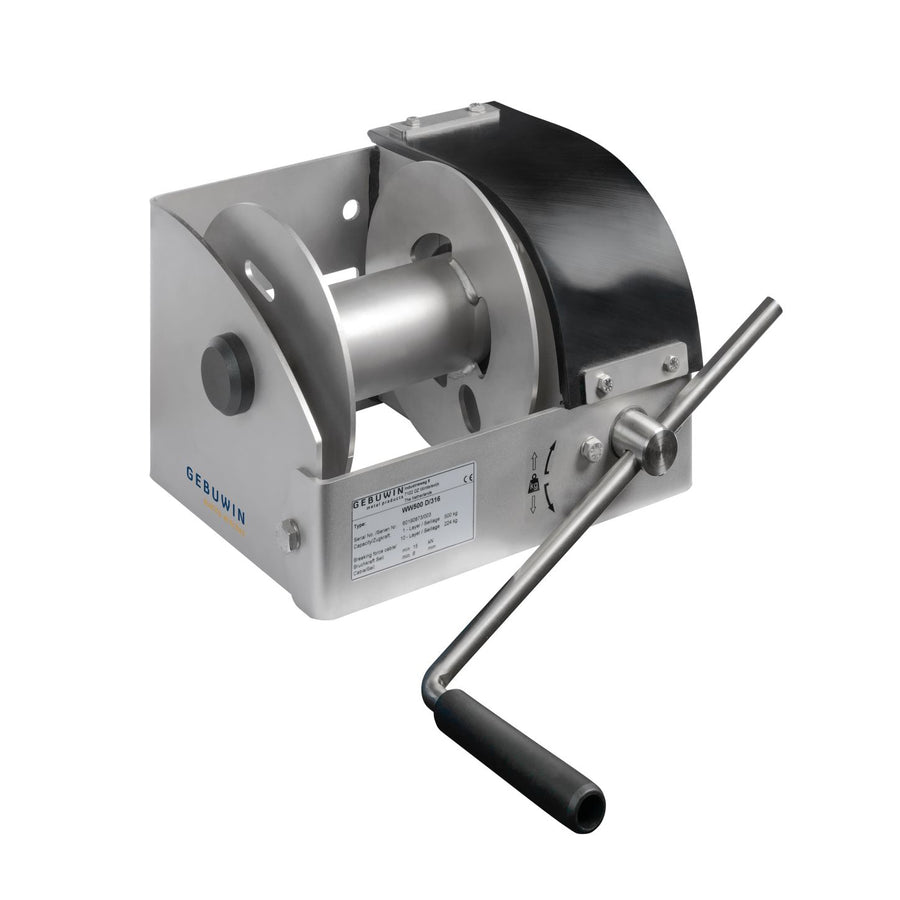

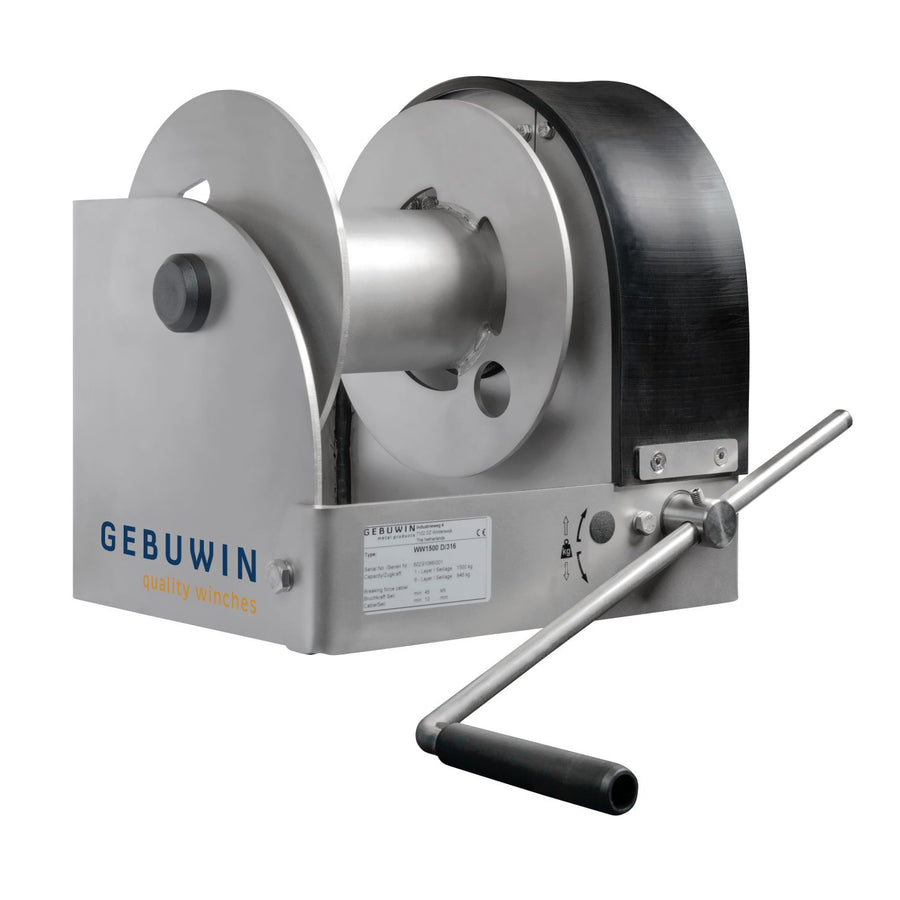

MR3000 (SST) Marine Worm Gear Winch 3000kg

The MR3000 (SST) marine worm gear winch is a 3000kg Gebuwin hand winch built entirely in 316 stainless steel for salt water, marine and offshore lifting and pulling.

3000kg stainless steel marine worm gear winch

Rated 3000kg on the first rope layer, this winch pairs a full stainless steel 316 body, drum, crank and outgoing parts with a load pressure brake and double ratchet system for a safe, stable hold.

• 3000kg first layer capacity, 16mm rope diameter

• 104kg unit weight, large rope capacity to 41.9m

• Complies with EN13157 and DIN 15020, static safety factor 4:1

Corrosion resistant 316 stainless build

The closed IP54 gearbox resists splashing water and dust, while the all stainless construction gives a very high corrosion resistance rating for the toughest marine conditions. Cable outlet can be set upwards, downwards or at the rear.

• Single, twin drum and ATEX options available

• Pre-order item, lead time approximately 3 to 4 weeks

Compare painted and stainless models in our Marine Grade Winches range.

Note: These are not a stocked item, so lead-time from order point is approx. 3 to 4 weeks but would be confirmed on order. Please email your enquiry for these models to sales@winchshop.co.uk

Specification

• Robust and safe lifting and pulling winch in compliance with EN13157, DIN 15020
• Static safety factor 4:1
• Two lifting speeds (3t and 5t only)
• Right angled, easy to grease worm transmission and maintenance free bearings
• Load pressure brake with double ratchet system for safe stable hold of the load
• Closed gearbox to protect against environmental influence – protection classification IP54
• Cable outlet upwards, downwards or at rear

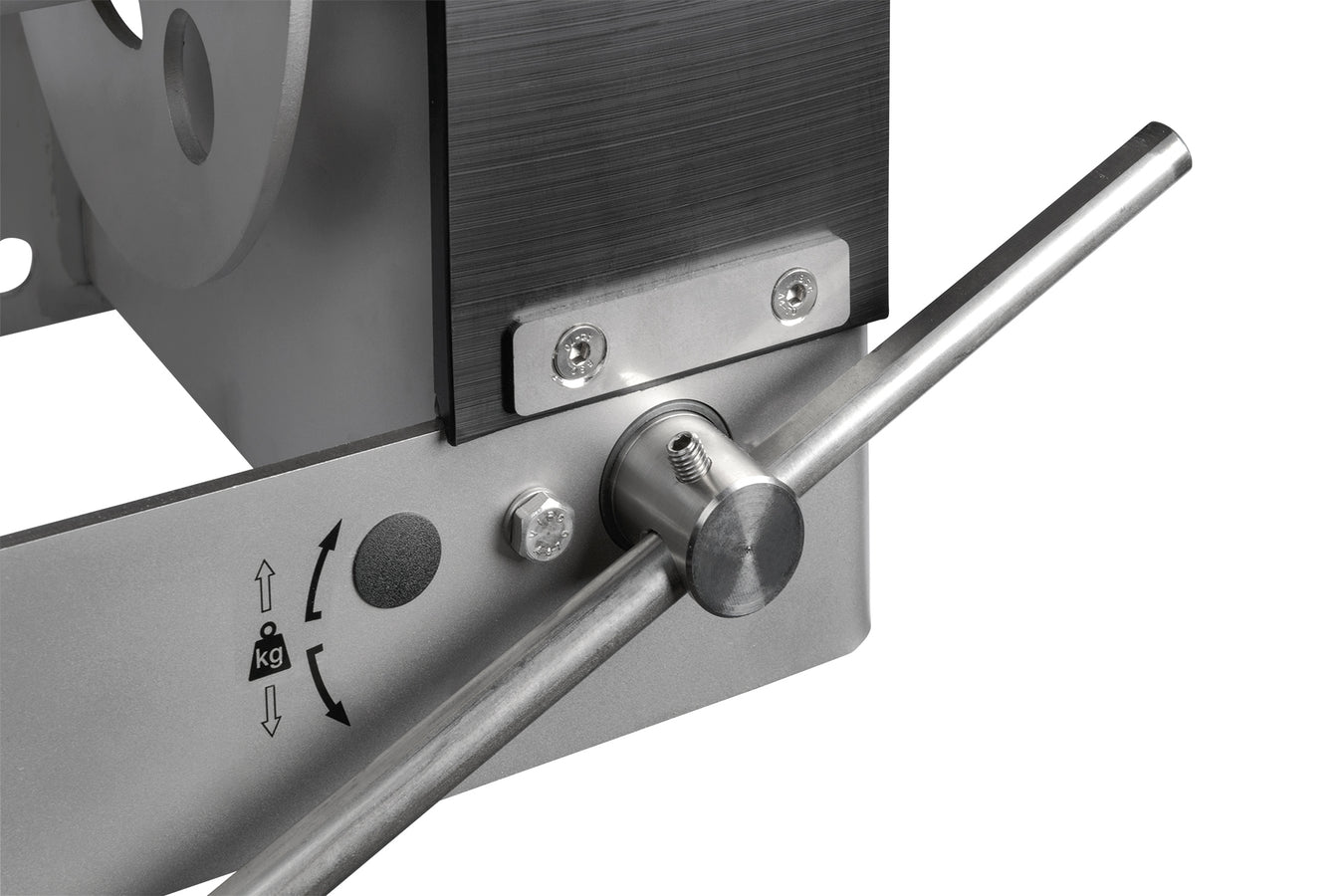

• Adjustable crank, with ergonomic grip
• Suitable for wall and floor mounting
• Large rope capacity
• Simple and quick attachment
• Full stainless steel 316 body, drum, crank and all outgoing parts
• Corrosion resistant
