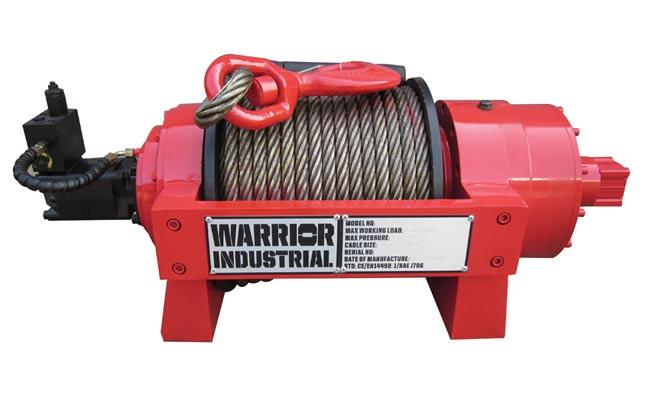

![JP 10 Industrial Hydraulic Winch from RiggingUK](http://www.winchshop.co.uk/cdn/shop/products/13JP0IH-small_3e22eb26-f320-4678-a792-bf53c6cfca59_650x402.jpg?v=1617798323)
JP 10 Industrial Hydraulic Winch 22000 lbs (10000 kg)
Delivery Lead-Time from Order
The lead-time for this product if not in stock in our warehouse can vary from a few days to 8 weeks.
If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.
If you are happy to go ahead with up to an 8 week lead-time please pre-order online and we will confirm order details by email after you have ordered.
DESCRIPTION
Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard
Outstanding Features
- Full Float Heavy Duty Planetary Gearing
- Multi Disc Friction Brake
- High Torque Industrial Motor
- Air and Manual Clutch Operation
- Heavy Duty Rope Tensioner as Standard
- Minimum 10:1 Rope/Drum Ratio
- Balance Valve as Standard
ACCESSORIES INCLUDED
Spec
Rated Line Pull | 22000 lbs (10000 kg) |
---|---|
Gearing | 39:1 |
Braking Action | Auto Hydraulic |
Drum Size - Dia x L | 138 x 316mm (5.43 x 12.44 in) |
Cable - Dia x L | 15mm x 48m (0.59 in x 157 ft) |
Dimensions | 830 x 390 x 320mm (32.6 x 15.3 x 12.6 in) |
Mounting Pattern | 431 x 64 / 192 mm (16.9 x 2.5/7.5 in) |
Weight kg | 188 kg (414.4 lbs) |
Clutch | Air Clutch |
Certification |
CE Certified |
Layer of Rope/Cable | Line Pull: lbs(kgs) |
---|---|
1 | 22046 (10000) |
2 | 16889 (7661) |
3 | 14615 (6630) |
4 |
12881 (5843) |
Line Pull lbs (kgs) |
Line Speed ft/min (m/min) |
Flow L/min (G/min) |
Pressure Mpa |
---|---|---|---|
0 | 5.9 (1.8) | 15 | 25 |
4000 (1814) | 11.7(3.6) | 30 | 42 |
8000 (3629) | 19.6 (6.0) | 50 | 85 |
15000 (6804) | 23.6 (7.2) | 60 | 140 |
22046 (10000) | 29.7 (9.0) | 75 | 175 |
