ISC Offset Oval Keylock Screwgate Steel Karabiner - 40kN

by ISC
SKU 298-24-5
Availability:
4 in stock, ready to be shipped
Original price $20.00 - Original price $20.00
Original price
$20.00
$20.00 - $20.00
Current price $20.00
Inc Vat

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

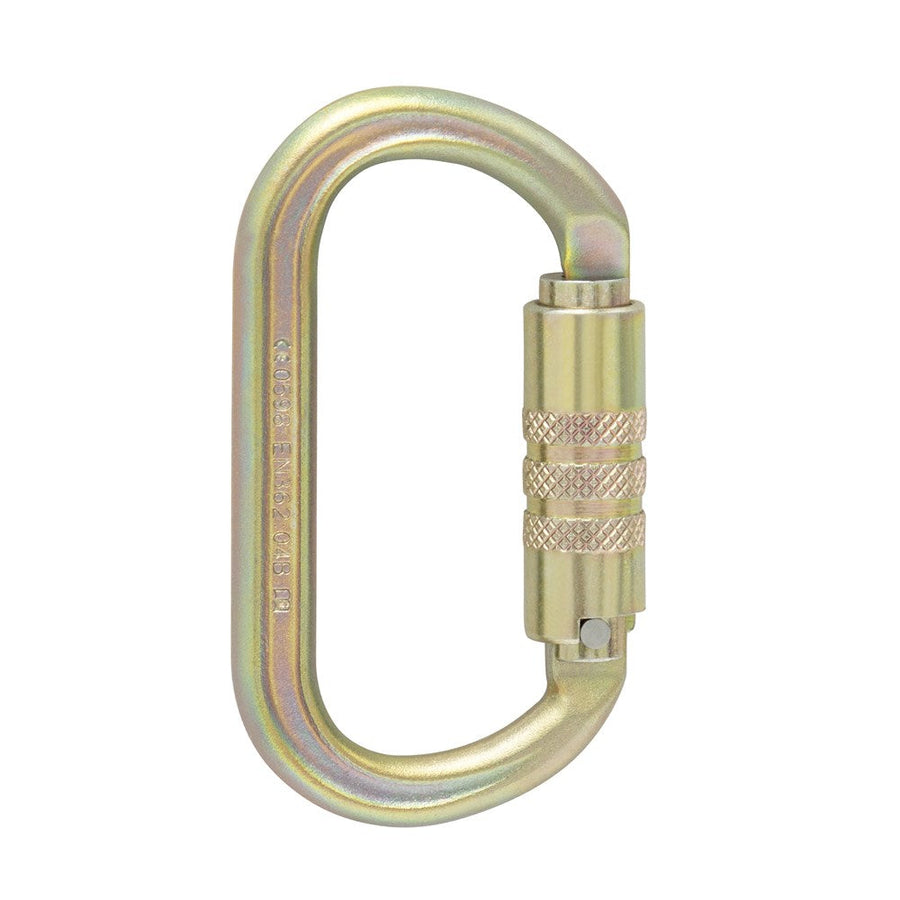

ISC Offset Oval Keylock Screwgate Karabiner - 40kN

The Offset Oval Keylock Karabiner combines the specification of an Oval with that of a 'D' shape Karabiner. True Ovals are not capable of achieving high breaking loads, as their symmetrical shape shares the load between the spine and the gate of the Karabiner.  The weakest part of any Karabiner is the gate and so wherever possible, designers will try to bias the load toward the spine of the Karabiner.  This is why 'D' shape Karabiners (typically) give the highest breaking loads.

However, in many industries such as Rope Access & Rope Rescue, the Oval is a popular shape...hence the introduction of this new hybrid Offset Oval.

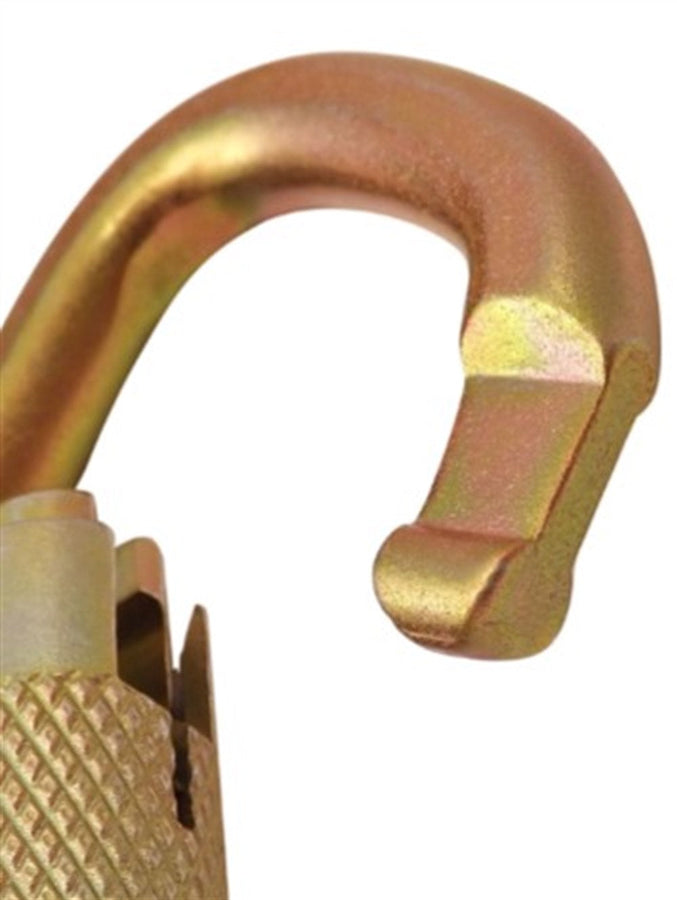

We have now developed the process of cold forging, which allows us to offer the common Keylock style (anti-snag) noses on several Karabiners in our range, including the new Offset Oval.

Gate options:

This model the SG Screwgate (SKU 298-24-5)
Or choose the SS Supersafe (3-way)  -see our SKU 298-25-6

Spec

(MBS) Minimum Breaking Strength (kN): 40
(MBS) Minimum Breaking Strength (lbf): 8800
Gate opening gap (mm): 17
Gate opening gap (inches): 5/8
Weight (grams): 193
Weight (ounces): 6.8

Approved Standards

CE EN 362
