Samurai - Winch Installation Plate - For Winches up to 20000lbs

SKU 161-28-6
Availability:
Out of stock
Sold out
Original price £135.96 - Original price £135.96
Original price
£135.96
£135.96 - £135.96
Current price £135.96

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

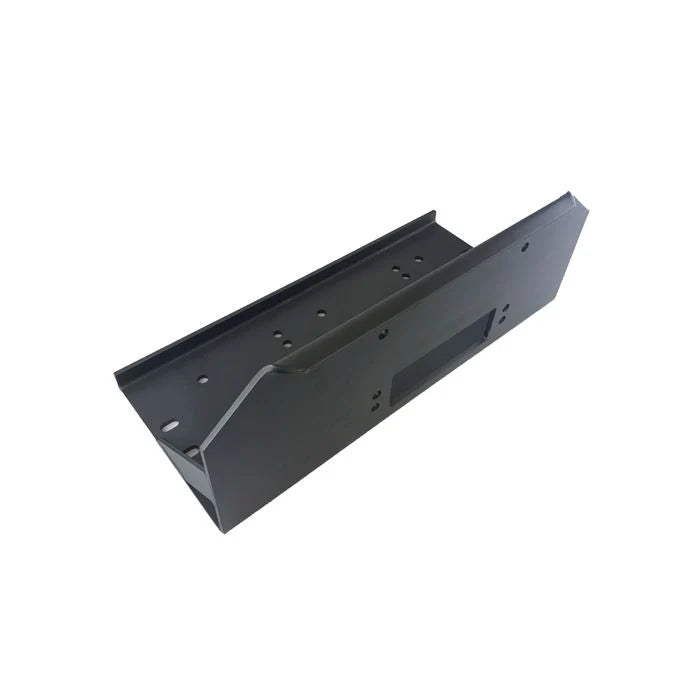

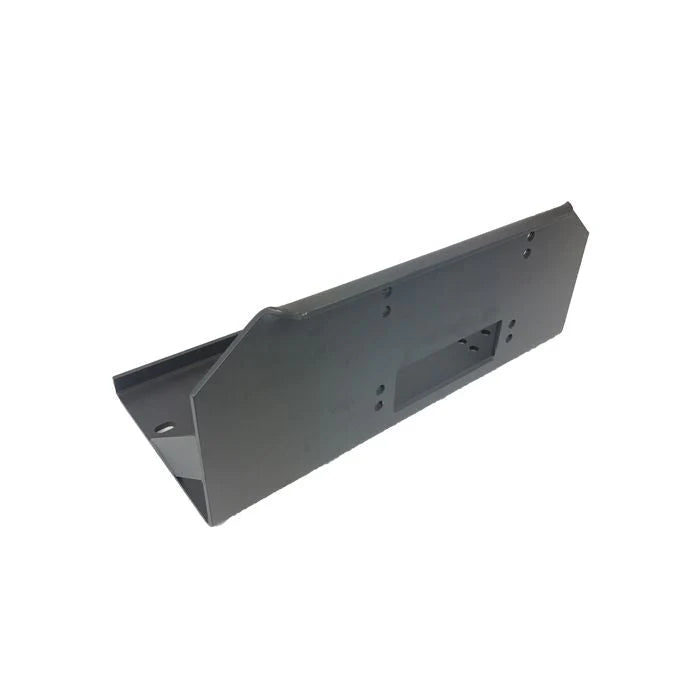

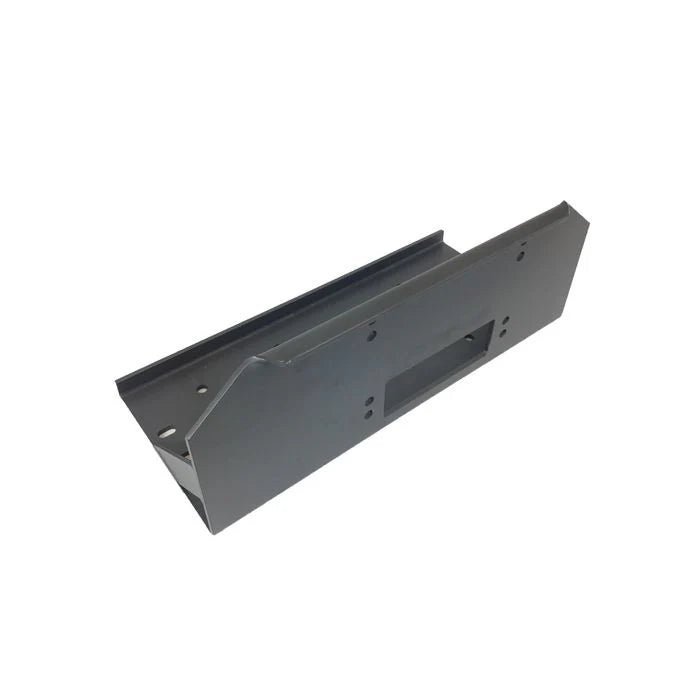

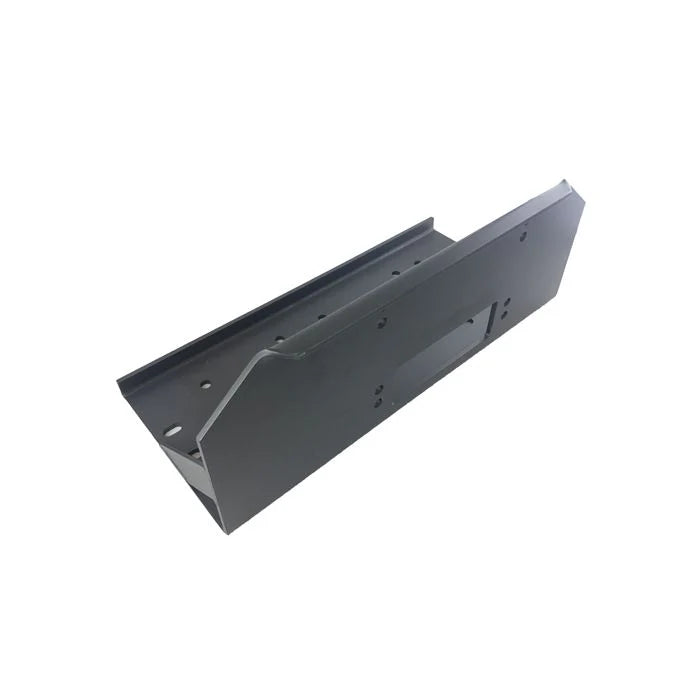

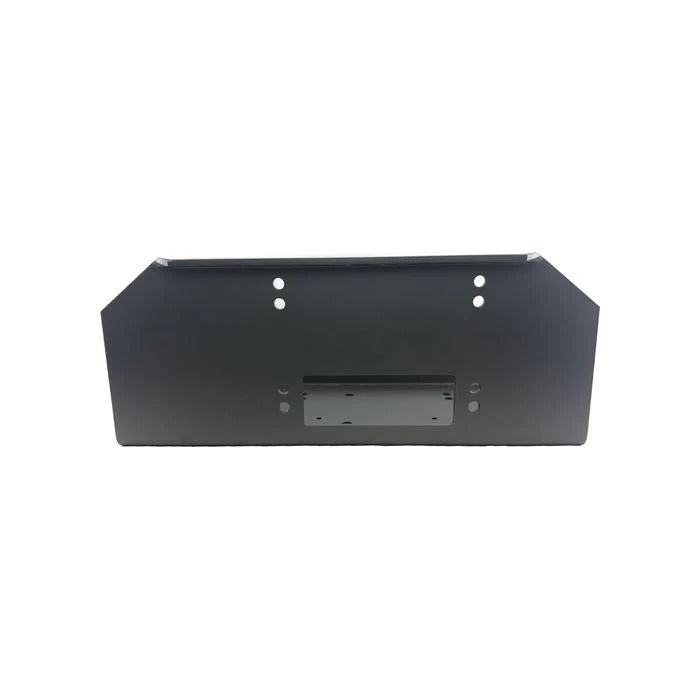

Winch mounting plate for winches up to 22,000lb, built for the Warrior Samurai 17500 rated at 18,000lb foot forward and the Samurai 20000 rated at 22,000lb foot down. This heavy duty folded steel plate carries fairlead locator holes and winch mounting pattern holes, with a return fold on the front leading edge drilled and slotted for the fairlead and front mounted winches.

Winch Mounting Plate Fitment

Predrilled for most standard winches and finished in a durable black powder coat, it mounts to a base, column or wall and can be modified to suit your own install.

  • Fits Samurai 17500, 20000, 4000 EN, 5250 EN and 6000 EN winches

  • Base and front mounting pattern: 254mm x 114.3mm and 254mm x 161.5mm

  • Fairlead hole centres: 255mm

Dimensions and Material

  • Overall size: 640mm x 285mm x 260mm

  • Material thickness: 7mm folded steel

  • Finish: durable black powder coat

Always cross reference your winch mounting pattern with the figures above before ordering. Browse the full winch accessories range or see matching Premium Vehicle Winches.

This plate is designed for use with the following Samurai S17500 and S20000 12v or 24v Powered Pulling Winches:

Foot forward mounting for the Samurai 17500 model rated at 18,000lbs

Foot down mounting rated at 22,000lbs

Dimensions:

  • Base Mounting Pattern = 254mm x 114.3mm & 254mm x 161.5mm
  • Front Mounting Pattern = 254mm x 114.3mm & 254mm x 161.5mm
  • Overall = 640mm x 285mm x 260mm
  • Material Thickness = 7mm
  • Fairlead hole Centres = 255mm

Please cross reference the mounting pattern of your winch with the above dimensions

Compatible Winches

Samurai 17500
SKU Code Manufacture code
Wire Rope 161-8-21 175SS12
Wire Rope 161-8-22 175SS24
Synthetic Rope 161-8-23 175SA12
Synthetic Rope 161-8-24 175SA24
Samurai 20000
SKU Code Manufacture code
Wire Rope 161-8-25 200SS12
Wire Rope 161-8-26 200SS24
Synthetic Rope 161-8-27 200SA12
Synthetic Rope 161-8-28 200SA24
Samurai 4000 EN
SKU Code Manufacture code
Wire Rope 161-12-3 40ENS12
Wire Rope 161-12-4 40ENS24
Samurai 5250 EN
SKU Codes Manufacture code
Wire Rope 161-12-5 52ENS12
Wire Rope 161-12-6 52ENS24
Samurai 6000 EN
SKU Codes Manufacture code
Wire Rope 161-12-7 60ENS12
Wire Rope 161-12-8 60ENS24
