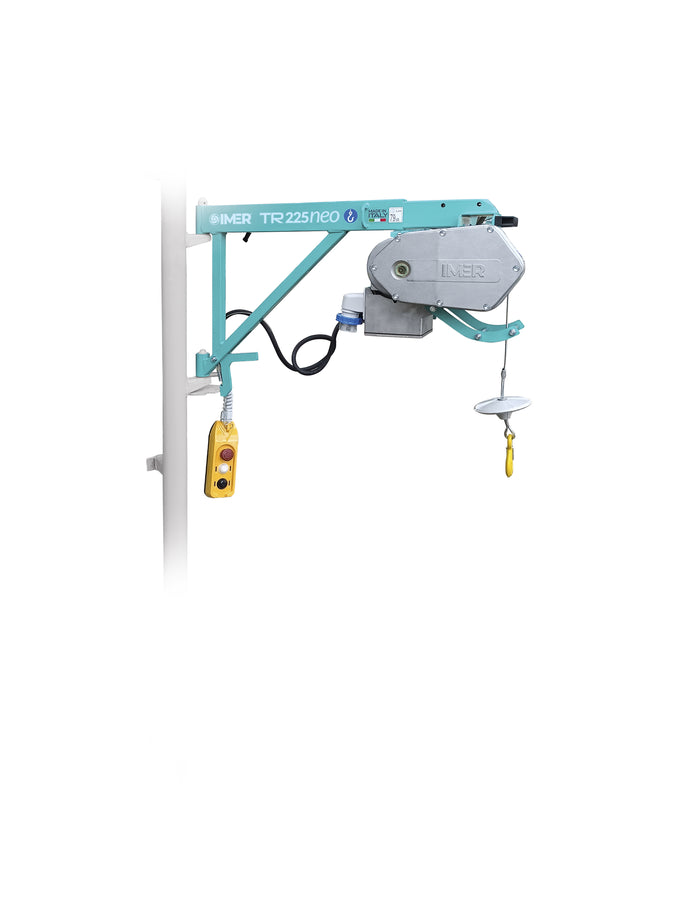

IMER TR 225 Scaffold Hoist with 3 point bracket and pendant from Winchshop

IMER TR 225 NEO Scaffold Hoist Complete Kit 200kg- 110v

by IMER
SKU 294-1-15
Availability:
In stock
£1,911.60 - £1,911.60
£1,911.60
£1,911.60 - £1,911.60
£1,911.60

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

IMER TR 225 NEO Scaffold Hoist Complete Kit with Extendable Bracket 200kg - 110v - 30m High Capacity

  • SWL up to 200kg
  • Lifting Speed 19m/min
  • Working Height up to 30m
  • Supplied with Operating Pendant with 1m length of cable
  • Supplied with Scaffold Attachment Pole

The TR 225 NEO heavy duty IMER Scaffold Hoist is designed for use in industrial or construction applications and is the perfect choice by many of the leading rental companies.

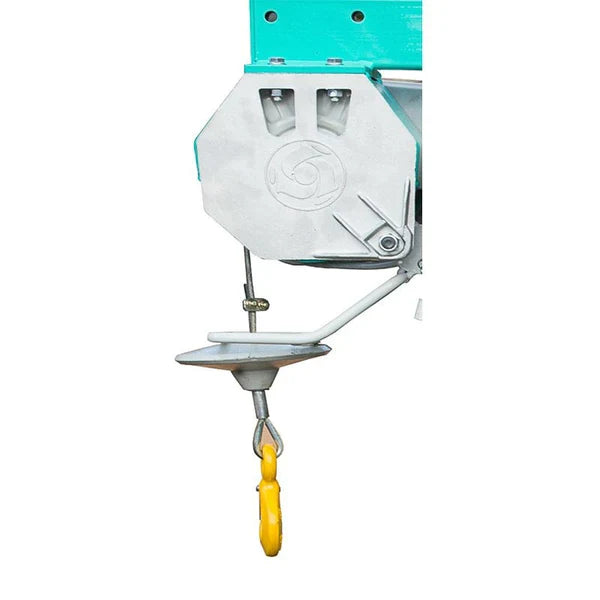

Fitted with front loading drum – this reduces the risk of bunching when used on scaffolding that is not perfectly straight.

This TR 225 NEO Scaffold Hoist has a lifting capacity of 200kg and a lifting height of 30m.

• Work positioning lever
• IP67 plug
• 31m Wire Rope
• Motor Speed 1360/1380rpm
• Trolley available for use with a gantry
• Upper limit safety device
• Self-braking motor with magnetic device
• Telescopic Frame can be extended from 720mm to 1120mm
• Includes TR 225 N Pendant (294-1-13)
• Comes with 1.8m Scaffold attachment (294-1-5)

110v (294-1-15) and 230v (294-1-16) versions available.

Available to buy as Hoist ONLY (without Scaffold Attachment and Pendant): 110v (294-1-11) and 230v (294-1-12).

Spec

Spec for Scaffold Hoist ONLY.

SKU 294-1-15
Max Capacity kg 200
Av. Full Load Lifting Speed m/min 19
Max. Working Height m 30
Steel Rope Dia. mm 5
Rope Length m 31
Electric Power Supply V /Hz 110 / 50 Sph
Motor Power Rate kW 0.75
Motor Speed rpm 1380
Running Current 230v (110v) A 7.2 (14)
Machine Weight kg 46
SPL in Operators' Position da(A) <70
Dimensions w/l/h mm 330/770 (1170) /520
Packing Dimensions w/l/h mm 390/810/590



Downloads



Downloads

Download - TR225_NEO.pdf
