IMER ET300 Complete Builders Gantry Hoist 300kg - 110v - 30m Wire Rope

SKU 294-2-11
In stock
Original price £3,087.60 - Original price £3,087.60
Original price
£3,087.60 - £3,087.60
Current price £3,087.60

Special Delivery Service

Due to the size of this product it will be dispatched by our Special Delivery Service. One of our sales team will be in contact after order has been placed.

***Delivery - UK Mainland Up To 3 Working Days

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at

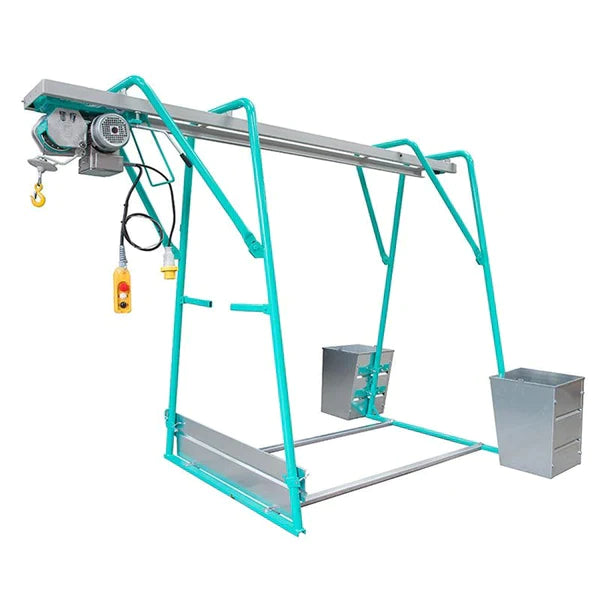

IMER ET300 Complete Builders Gantry Hoist System 300kg - 110v - 30m Wire Rope High Capacity

This 300kg Builders Gantry Hoist has a 30m height of lift which is designed to be used within scaffolding or on a flat room where there is no scaffold to attach a lifting hoist to. It has a running beam 3.3m long and allows an overhang of 1m beyond the edge of the safety board to enable material to be manoeuvred along the hoist runway safely and without effort.

It is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely. It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift safely. The hook has a spring loaded safety catch to keep the load carrier within the hook. The Hoist also has a Brake to control the travel along its runway and Rubber stops at each end of the travel.

To comply with lifting regulations it comes complete with a front kickboard and lockable back ballast boxes.

*250kg Ballast Weight in each box is required but not supplied*

The Complete Hoist comes with:

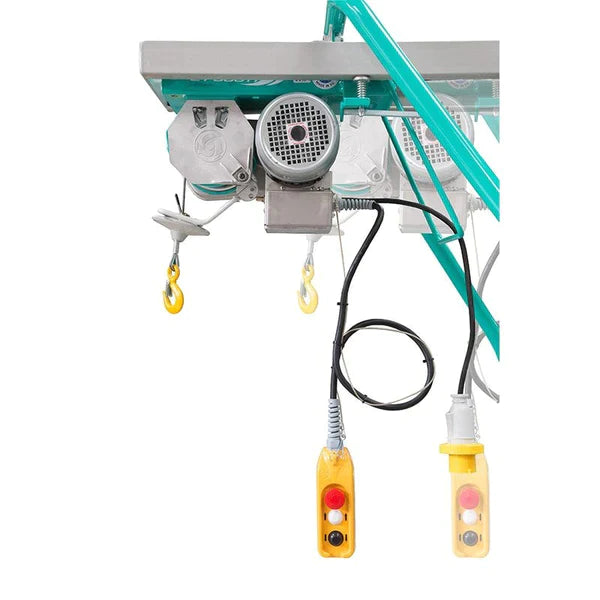

  • ET300 Hoist
  • ET300 Pendant
  • Beam Trolley
  • Gantry
  • A-Frame
  • Kick Plate
  • Ballast Boxes
  • IP65 plug
  • Hook with block and wedge
  • Hoist trolley with 4 aluminium wheels
  • Upper limit safety device
  • Hoist trolley positioning brake
  • Self-braking motor with brake rectifier
  • Lockable ballast boxes

110v (294-2-11) and 230v (294-2-12) versions available.

Available to buy as Scaffold Hoist ONLY without attachments: 110v (294-2-1) and 230v (294-2-2).


For Hoist Only.

SKU 294-2-11
Max Capacity kg 300
Av. Full Load Lifting Speed m/min 19
Max. Working Height m 30
Steel Rope Dia. mm 5
Rope Length m 31
Electric Power Supply V /Hz 110 / 50 Sph
Motor Power Rate kW 1.1
Motor Speed rpm 1320
Running Current 230v (110v) A 12 (18)
Weight kg 50
Dimensions w/l/h mm 330/780/380
Packing Dimensions w/l/h mm 350/820/440
