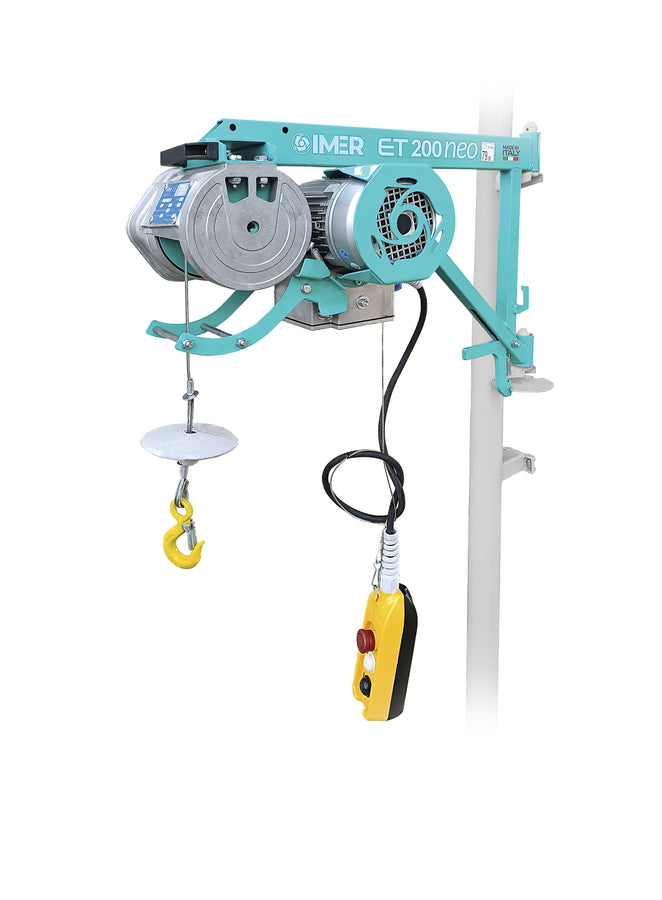

IMER ET 200 NEO Scaffold Hoist Complete Kit 200kg - 110v

by IMER
SKU 294-1-7
Availability:
In stock
Original price £1,646.13 - Original price £1,646.13
Original price
£1,646.13
£1,646.13 - £1,646.13
Current price £1,646.13

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

IMER ET 200 NEO Scaffold Hoist Complete Kit 200kg - 110v - 30m High Capacity

  • SWL up to 200kg
  • Lifting Speed 19m/min
  • Working Height up to 30m
  • Supplied with Operating Pendant with 1m length of cable
  • Supplied with Scaffold Attachment Pole (3 Point Fixing)

Ideal for operations that do not require bracket extension.

IMER Scaffold Hoists are the perfect, high-end equipment for any scaffolding job! IMER Scaffold Hoists are often used by large and small contractors alike.

This pivoting 200kg electric hoist with a lifting height of 30m is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely.

It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift safely. The hook has a spring loaded safety catch to keep the load carrier within the hook.

The ET 200 NEO IMER Scaffold Hoist - 200Kgs is supplied with a top mounting bracket and the Scaffold connection pole from Imer is an industry favourite due to its 200 kg capacity, lifting height of 30m, and fast lifting speed of 19m/min. The hoist is a 110-volt power supply and is supplied with a waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from over lifting of goods.

110v (our SKU 294-1-7) or 230v (our SKU 294-1-6) power versions available.

3 Point Fixing Scaffold Attachment included (see our SKU 294-1-5 for details).

Available as Scaffold Hoist ONLY (without 3 Point Fixing Attachment) (294-1-4)

Spec

(For Scaffold Hoist ONLY)

SKU 294-1-7
Max Capacity kg 200
Av. Full Load Lifting Speed m/min 19
Max. Working Height m 30
Steel Rope Dia. mm 4
Rope Length m 31
Electric Power Supply V /Hz

110 / 50 Sph

Motor Power Rate kW 0.75
Motor Speed rpm 1380
Running Current 230v (110v) A 7.2 (14)
Machine Weight (ET 200 Hoist Only) kg 42
Scaffold Pole Attachment Weight kg 19
SPL in operator's position da.(A) <70
Dimensions w/l/h mm 330/770/520
Packing Dimensions w/l/h mm 390/810/590
