IMER ES150 Scaffold Hoist 150kg - 110v

by IMER
SKU 294-1-2
Availability:
In stock
Original price £1,183.20 - Original price £1,183.20
Original price
£1,183.20
£1,183.20 - £1,183.20
Current price £1,183.20

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

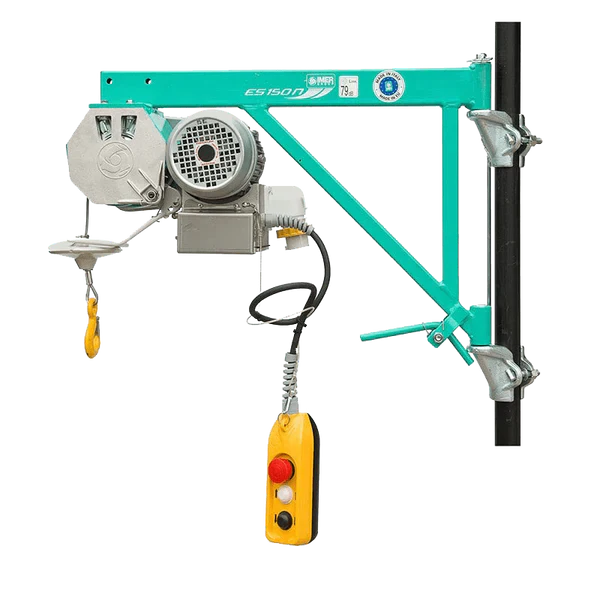

IMER ES150 Scaffold Hoist 150kg - 110v - 30m High Capacity

The ES150 IMER Scaffold Hoist - 150Kgs from IMER is a quality, reliable industry favourite site hoist. 150 kg capacity, boasting a lifting height of 30m and a fast lifting speed of 18.5m/min. 110-volt power supply and waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from the over the lifting of goods.

  • IP67 plug
  • Trolley available for use with a gantry

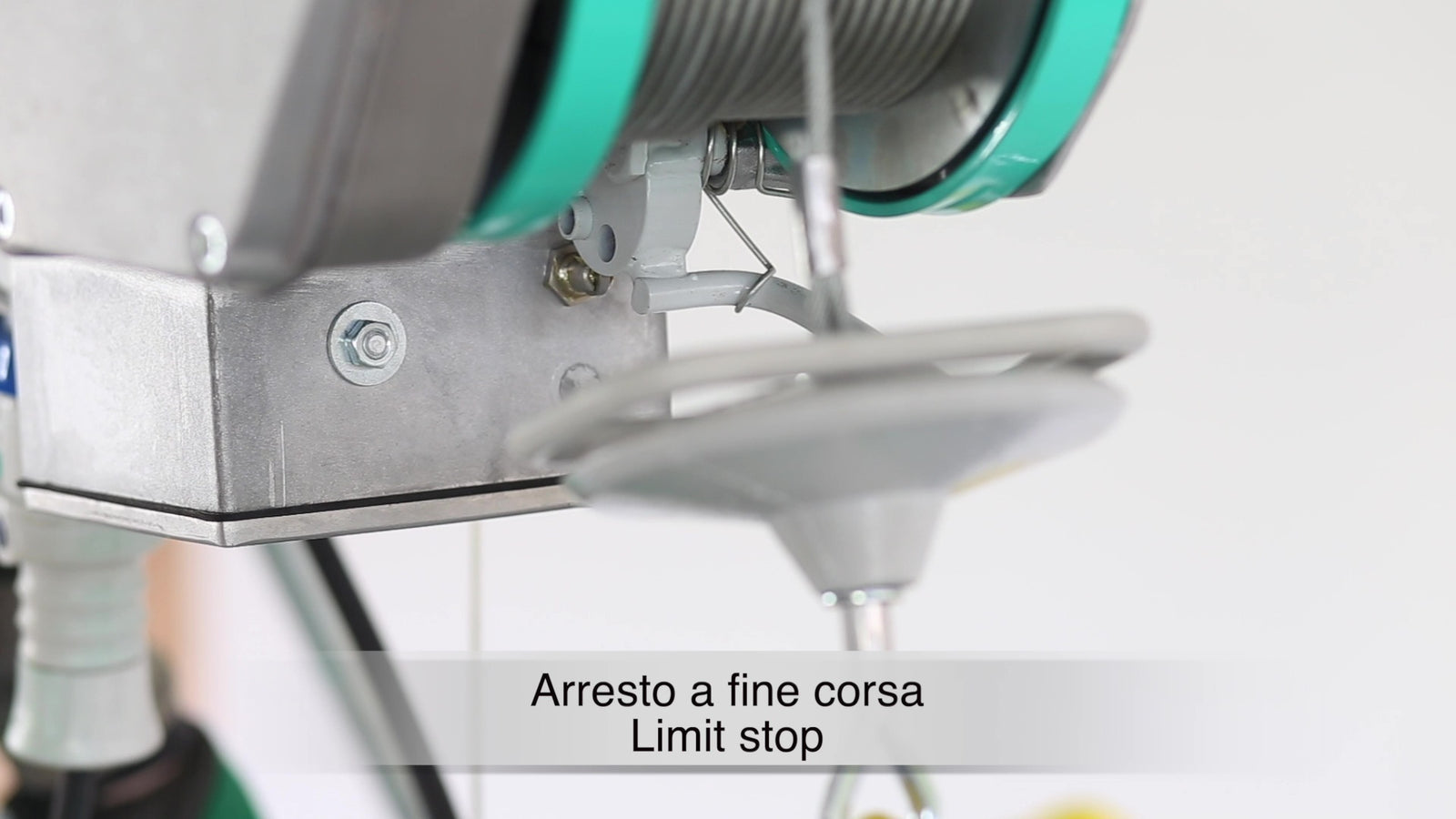

  • Upper limit safety device

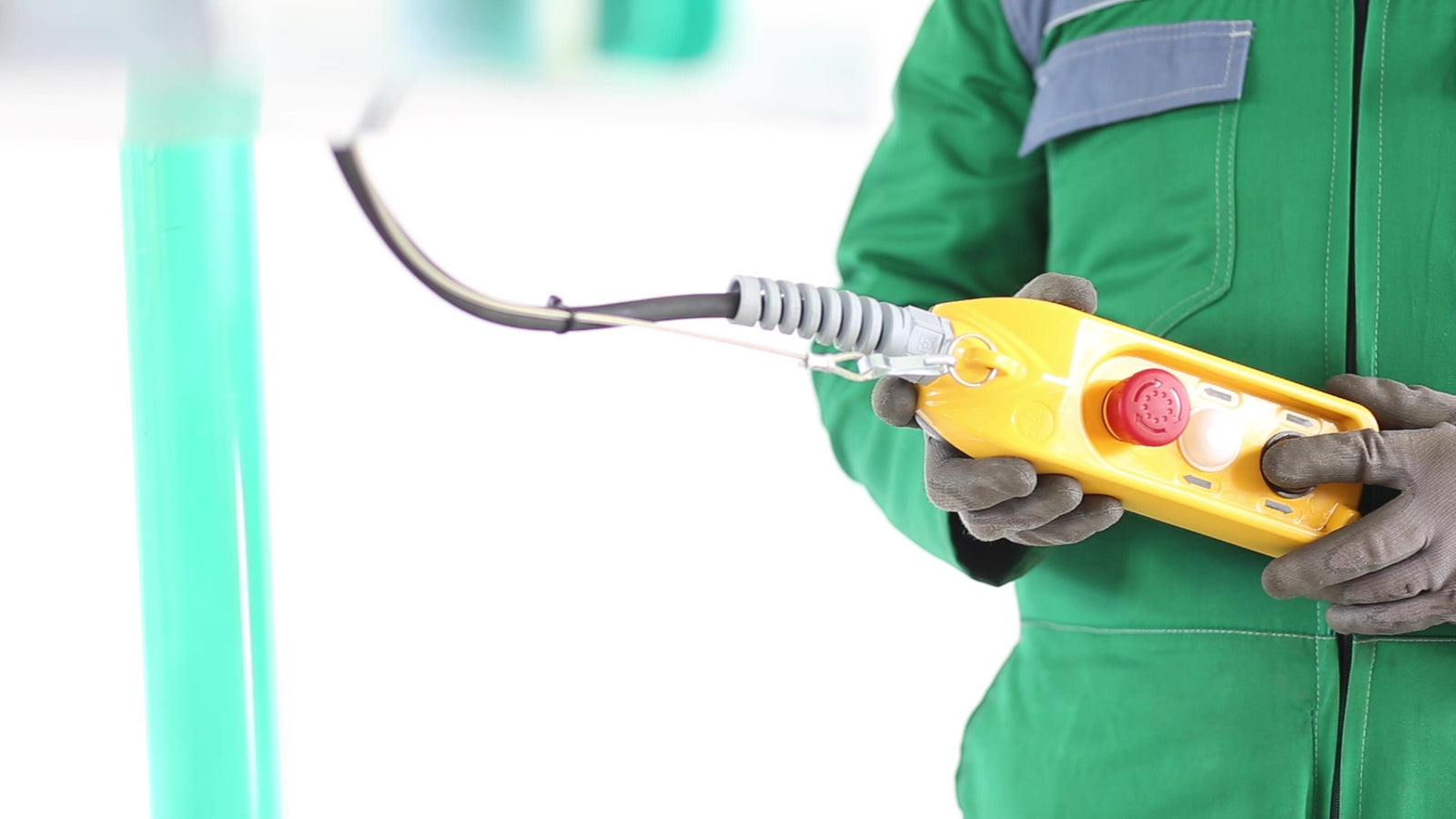

  • Direct control with 3-pushbutton IP65 1.5 m pendant control
  • Scaffold clamps

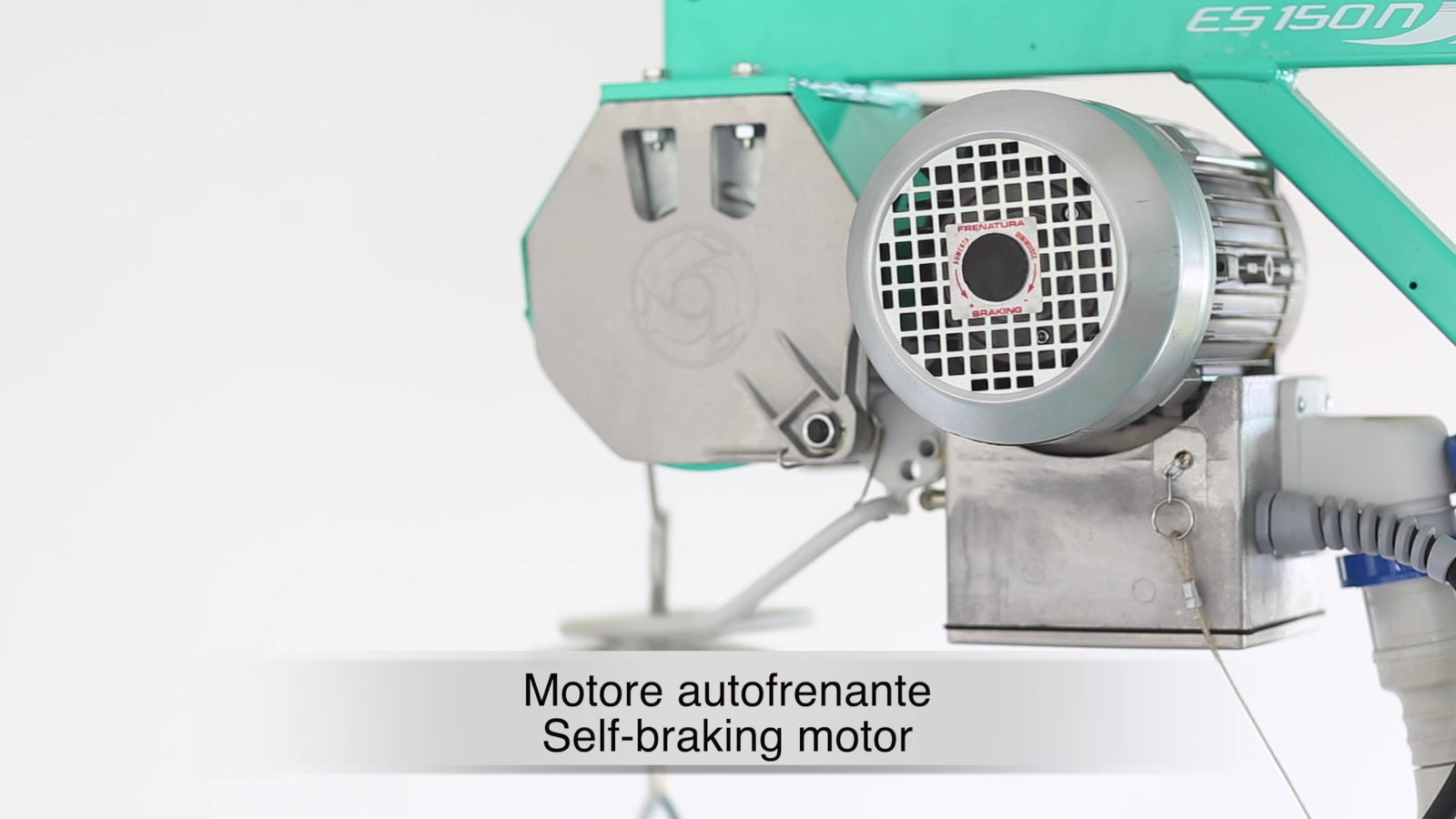

  • Self-braking motor

Please note some images show 230v connector, these are not standard supply within the UK market and are shown for illustration purposes only.

SCAFFOLD HOIST ONLY

110v and 230 versions available.

For 110v Please order SKU 256-1-2 and 230v please order SKU 256-1-1

Spec

SKU 294-1-2
Max Capacity kg 150
Av. Full Load Lifting Speed m/min 19
Max. Working Height m 30
Steel Rope Dia. mm 5
Rope Length m 31
Electric Power Supply V /Hz

110 / 50 Sph (294-1-2)

Motor Power Rate kW 0.45
Motor Speed rpm 1310
Running Current 230v (110v) A 4.8 (14)
Weight kg 39
Dimensions w/l/h mm 330/770/520
Packing Dimensions w/l/h mm 350/820/500


Downloads



Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Questions & Answers

Have a Question?

Ask a Question
  • What size transformer is best to run these IMER hoist ES 150 and ET 200N off

    A 5KVA Transformer, 2.5mm lead no more than 14 meters in length.

  • hi, can you tell me how far the arm comes out from the scaffold fixing point please?

    The distance is 700mm.
