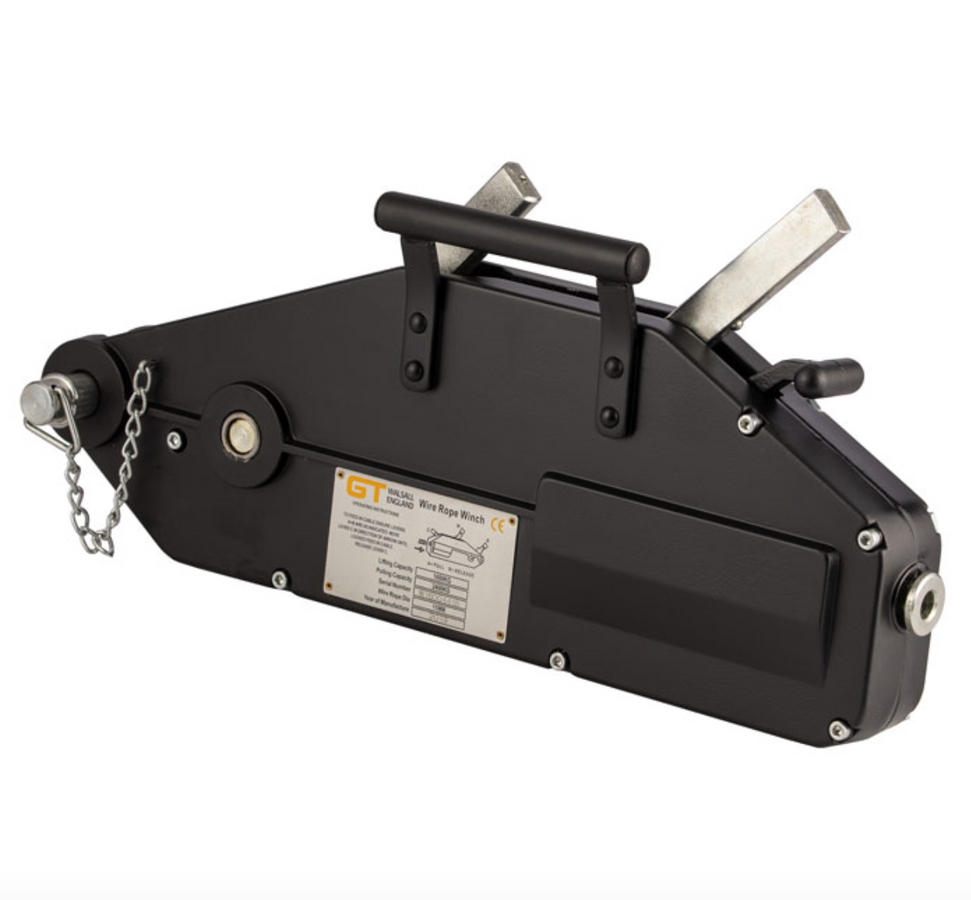

GT Viper Wire Rope Winch Puller to BS-EN 13157

GT Viper Wire Rope Winch Puller to BS-EN 13157

by Viper
SKU 286-527-1-10
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
Out of stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
2 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
£306.00 - £1,691.54
£306.00
£306.00 - £1,691.54
£306.00

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

GT Vipe Wire Rope Winch Puller to BS-EN 13157
  • Portable unit for pulling, lifting, lowering and securing loads.
  • Black painted finish.
  • Meets the W.L.L. performance requirements of BS EN 13157.
  • Minimum breaking load is 4 times the W.L.L. based on the lifting capacity.
  • All machines are supplied complete with an extendable operating handle.
  • Only the GT specially manufactured wire rope will ensure correct functioning.
  • Overload protection ensures high personal safety when in operation.
  • Marked in accordance with BS EN 13157.
  • Certification available  EC DoC


        Spec

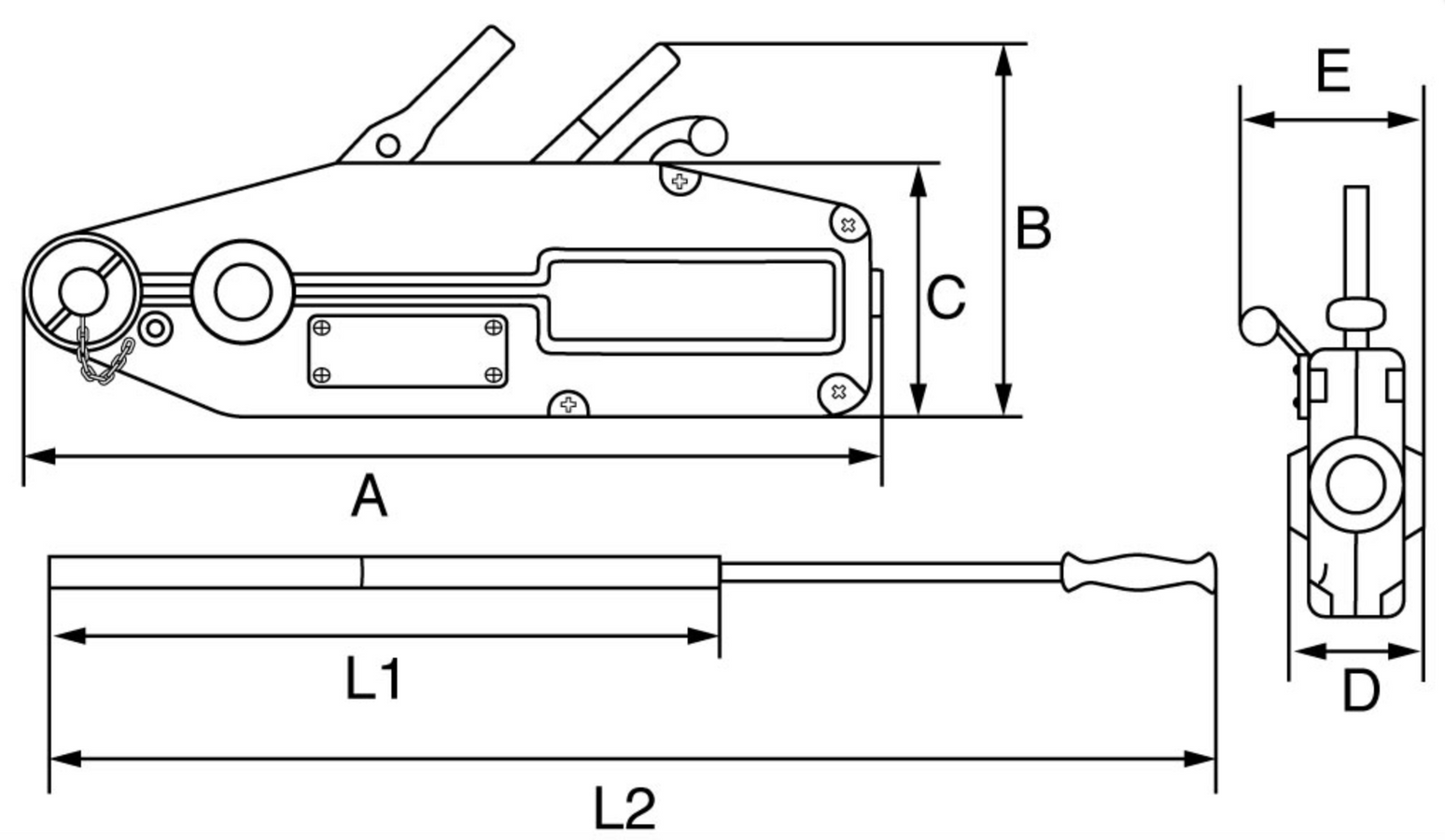

        SKU Lifting Capacity Pulling Capacity Rope Dia A B C D E L1 L2 Weight
        kgs kgs mm mm mm mm mm mm mm mm kgs
        286-527-1 800 1,250 8.3 426 235 168 60 64 - 800 6
        286-527-2 1,600 2,500 11 545 280 190 72 97 800 1200 11
        286-527-3 3,200 5,000 16 660 325 230 91 116 800 1200 22
        286-527-4 5,400 8,400 20 932 420 300 155 152 800 1350 57

        *** Table above is for Wire Rope Puller on it's own with no wire rope fitted ***
