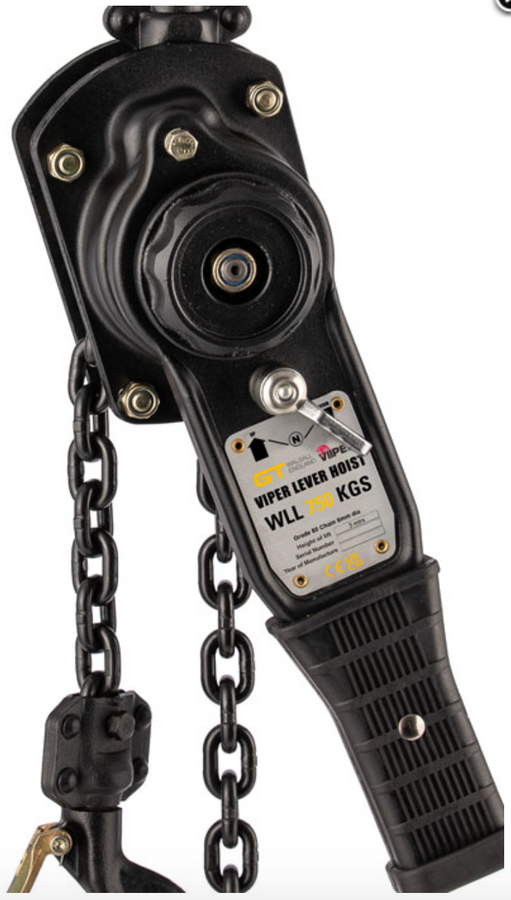

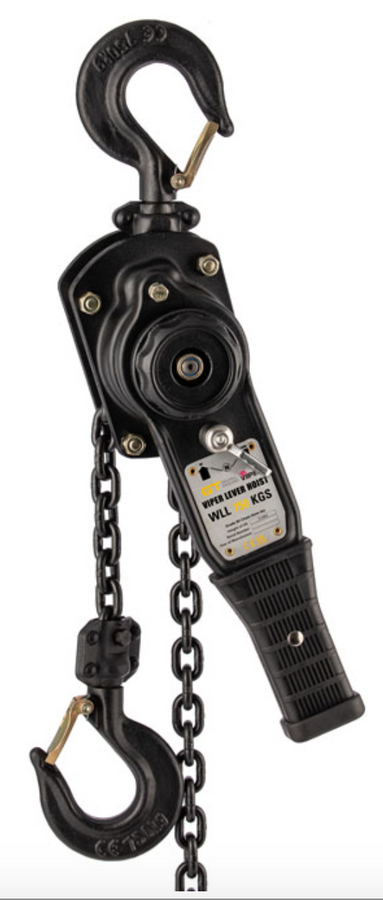

The GT Viper 500kg lever hoist is a portable ratchet come along built for lifting, pulling and tensioning loads up to 0.5t. A short lever and freewheel chain give quick, controlled operation.
500kg lever hoist for lifting, pulling and tensioning
A chain block only pulls vertically, but this ratchet lever hoist also works horizontally and at an angle, so it doubles as a puller and tensioner on site. Browse the ratchet lever hoist range for other capacities.
500kg spec at a glance
-
Rated capacity 500kg (0.5t) with a single fall of chain
-
5mm Grade 80 fine tolerance load chain to BS EN 818-7
-
283mm headroom and 178mm lever length
-
Net weight 4.5kg for easy handling
-
200N hand effort to lift the rated load
-
Meets BS EN 13157, minimum break load 4 times the working load limit
Where the 500kg hoist works best
Suited to positioning light plant, pumps and motors, straining agricultural wire and securing loads. If you need vertical lifting only, see our hand chain blocks. Supplied with a Declaration of Conformity in 1.5m or 3m lift heights.

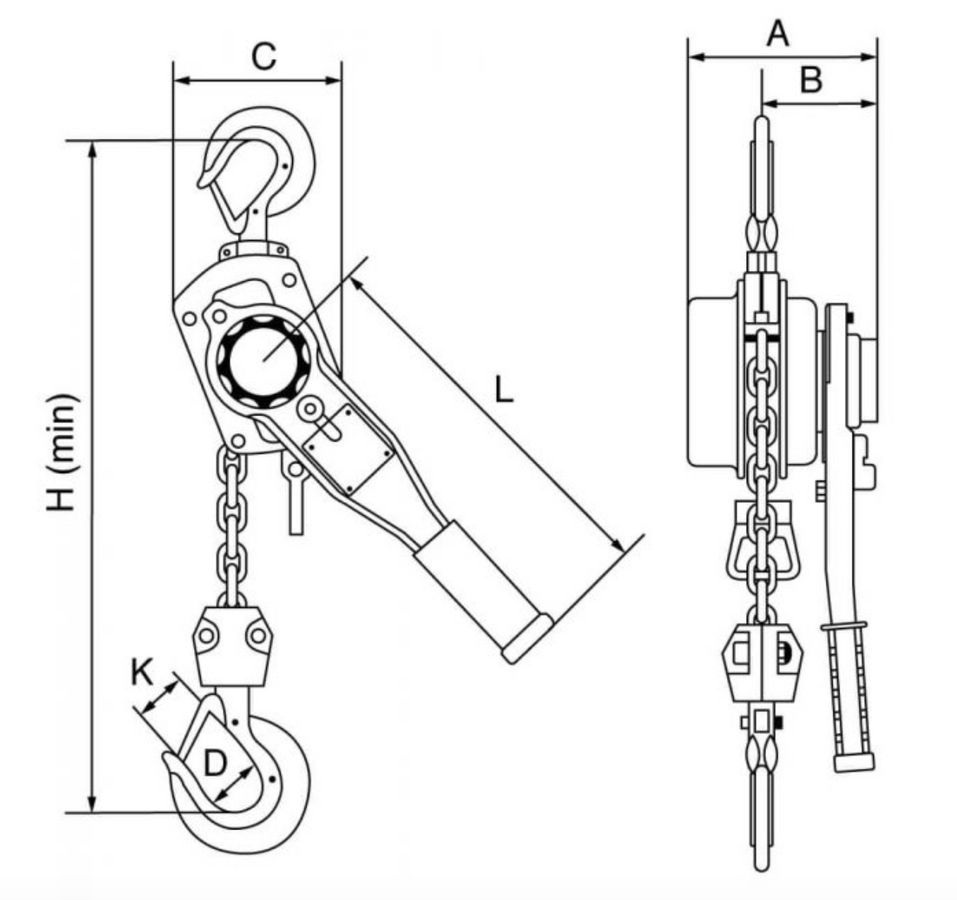

Spec
SKU
|
Capacity |
A |
B |
C |
D |
H |
L |
K |
Load Chain |
Falls of Chain |
| 1.5m |
3m |
Carcase |
kgs |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
286-510-1
|
286-510-2
|
286-510-3
|
250 |
119 |
79 |
90.5 |
31 |
237 |
168 |
24 |
4 x 12 |
1 |
286-511-1
|
286-511-2
|
286-511-3
|
500 |
130 |
83 |
112 |
36 |
283 |
178 |
25.5 |
5 x 15 |
1 |
286-512-1
|
286-512-2
|
286-512-3
|
750 |
148 |
90 |
136 |
40 |
320 |
250 |
28 |
6 x 18 |
1 |
286-513-1
|
286-513-2
|
286-513-3
|
1,000 |
148 |
90 |
136 |
40 |
320 |
250 |
28 |
6 x 18 |
1 |
286-514-1
|
286-514-2
|
286-514-3
|
1,500 |
172 |
98 |
160 |
44 |
380 |
300 |
38 |
8 x 24 |
1 |
286-515-1
|
286-515-2
|
286-515-3
|
2,000 |
180 |
105 |
160 |
46 |
380 |
300 |
38 |
8 x 24 |
1 |
286-516-1
|
286-516-2
|
286-516-3
|
3,000 |
200 |
115 |
180 |
50 |
480 |
375 |
42 |
10 x 30 |
1 |
286-517-1
|
286-517-2
|
286-517-3
|
6,000 |
200 |
115 |
235 |
64 |
600 |
375 |
50 |
10 x 30 |
2 |
286-518-1
|
286-518-2
|
286-518-3
|
9,000 |
200 |
115 |
335 |
85 |
740 |
410 |
57 |
10 x 30 |
3 |
Technical Data
| Capacity |
Running Test Load |
Effort Req'd to Lift Rated Load |
Weight |
Extra Weight per mtr |
| kgs |
kN |
kN |
kgs |
kgs |
| 250 |
3.75 |
160 |
3.2 |
0.41 |
| 500 |
7.5 |
200 |
4.5 |
0.52 |
| 750 |
11 |
180 |
7.4 |
0.8 |
| 1,000 |
15 |
180 |
7.4 |
0.8 |
| 1,500 |
22.5 |
380 |
11.6 |
1.4 |
| 2,000 |
30 |
380 |
11.6 |
1.4 |
| 3,000 |
37.5 |
450 |
20 |
2.2 |
| 6,000 |
75 |
500 |
29.4 |
4.4 |
| 9,000 |
112.5 |
900 |
45 |
6.6 |
