GT Viper Horizontal Plate Lifting Clamp PDB Type to BS-EN 13155

GT Viper Horizontal Plate Lifting Clamp PDB Type to BS-EN 13155

by Viper
SKU 286-525-10
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Save 16% Save 17%
£162.00
£162.00 - £498.00
£162.00
£134.00
£134.00 - £420.00
£134.00

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

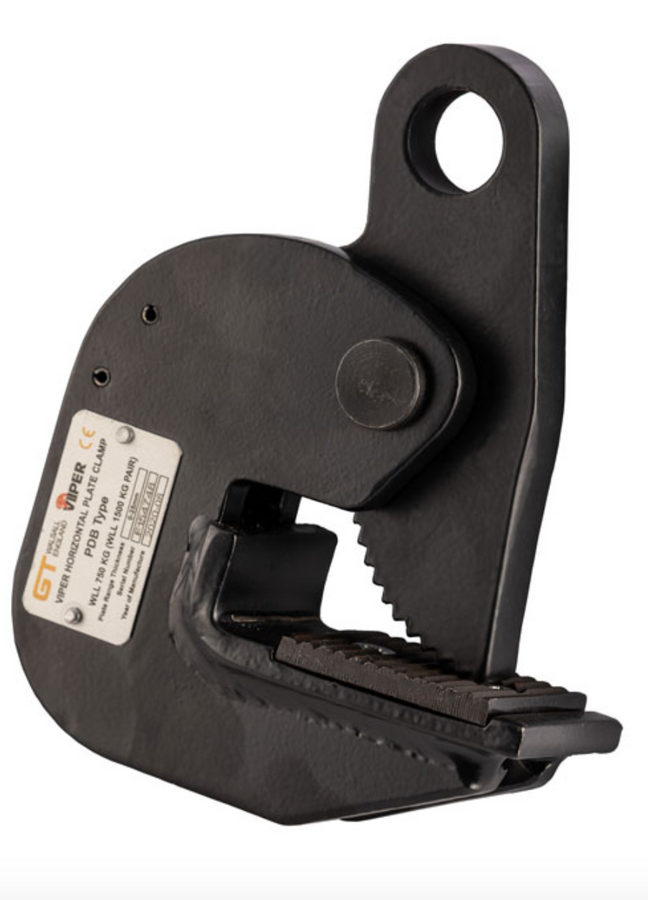

GT Viper Horizontal Plate Clamp - PDB Type (Supplied on Pairs)
  • Specially hardened steel is used in both the serrated jaws.
  • Matt black finish.
  • Meets the W.L.L. performance requirements of BS EN 13155.
  • Minimum breaking load is 4 times the W.L.L.
  • The steel plate lifted should be under the HRC 37 (HB 345).
  • Lifting under 20% of the rated capacity loading is strictly forbidden.
  • The GT Viper plate clamp is designed to lift one plate at a time.
  • Marked in accordance with BS EN 13155.
  • Certification available

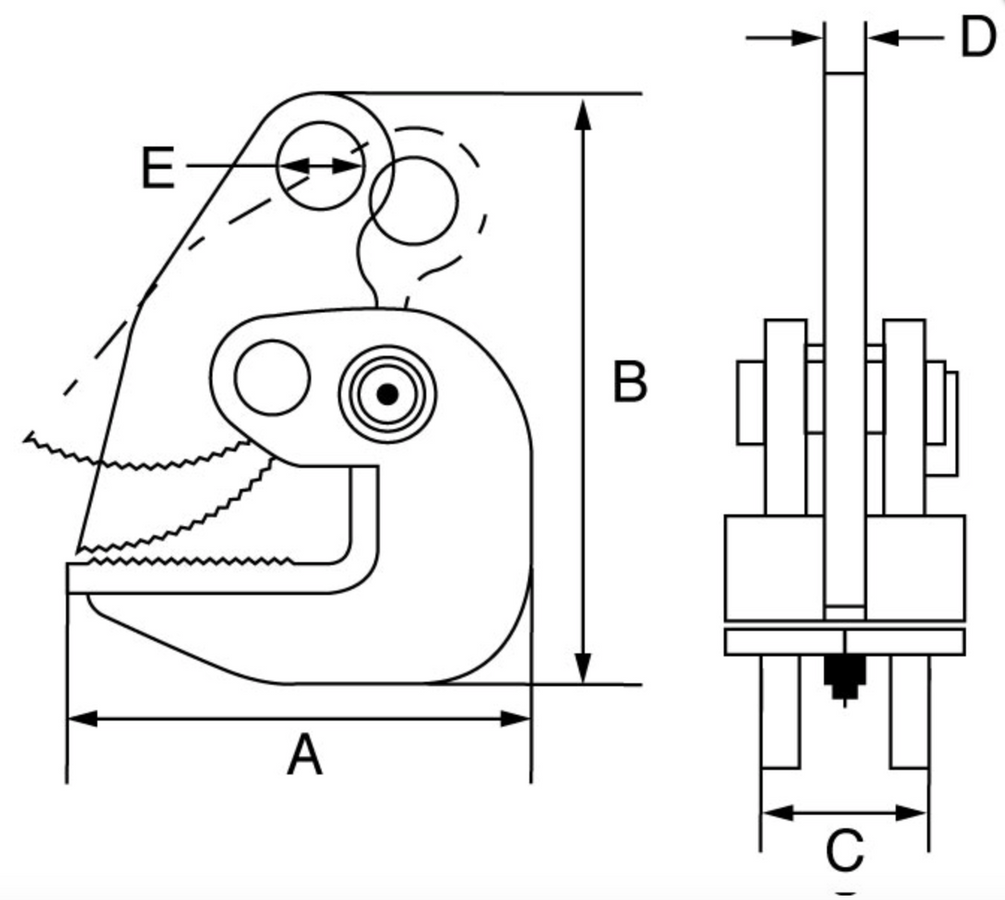

    Specification

        SKU Capacity Per Pair Jaw Opening A B C D E Weight
        kgs mm mm mm mm mm mm kgs
        286-525-10 1,500 0 - 25 125 175 38 14 22 2.5
        286-525-11 2,000 0 - 30 155 205 38 16 25 3.5
        286-525-12 3,000 0 - 30 158 205 42 16 25 4
        286-525-13 4,000 0 - 40 180 252 46 18 30 5
        286-525-14 5,000 0 - 45 185 252 50 18 30 6
        286-525-15 8,000 0 - 50 180 260 52 18 30 6.5
