![500kg Chain Block GT Viper](http://www.winchshop.co.uk/cdn/shop/files/Untitled_10_25e74922-b22c-4fe0-9882-16290652ee11_700x700.png?v=1701163401)

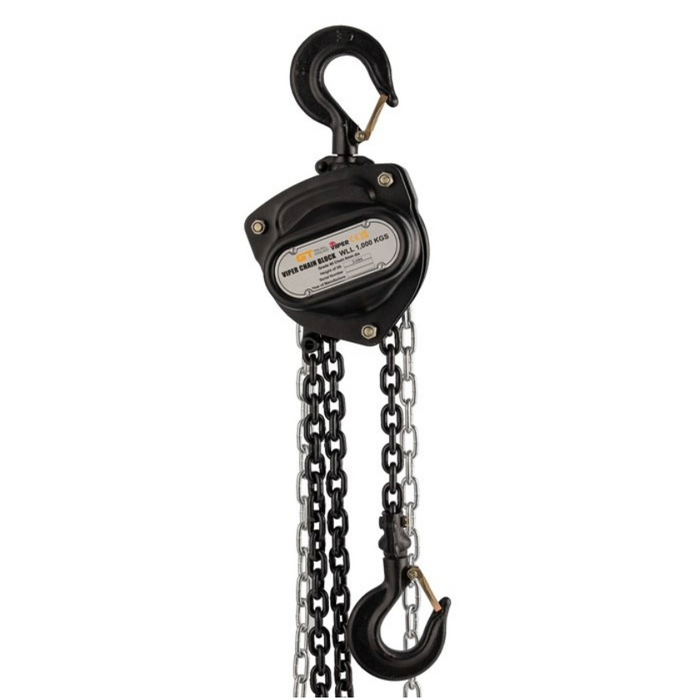

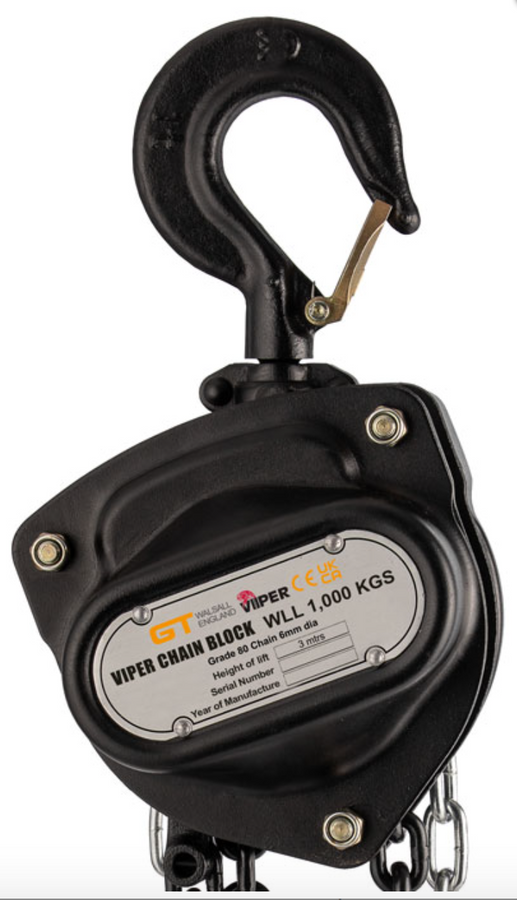

500kg Chain Block GT Viper
Quantity Required Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk
500kg Capacity GT Viper Chain Block
- Each hoist is made with high performance materials for extra durability.
- Matt black finish.
- Meets the W.L.L. performance requirements of BS EN 13157.
- Minimum break load 4 times the W.L.L.
- Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
- Electro galvanised calibrated hand chain.
- The sealed bearings in each unit ensure extra protection and allow complete repair flexibility.
- Top and bottom hooks with heavy duty cast catches.
- For heights of lift above 12 mtrs please consult Orplex for technical advice and product guidance.
- Whilst fleeting or cross hauling is not recommended practice, these items can be used in accordance within the specific safety guidelines for this purpose –please check our attached manufacturers guidance
- Marked in accordance with BS EN 13157.
- Certification available
Spec

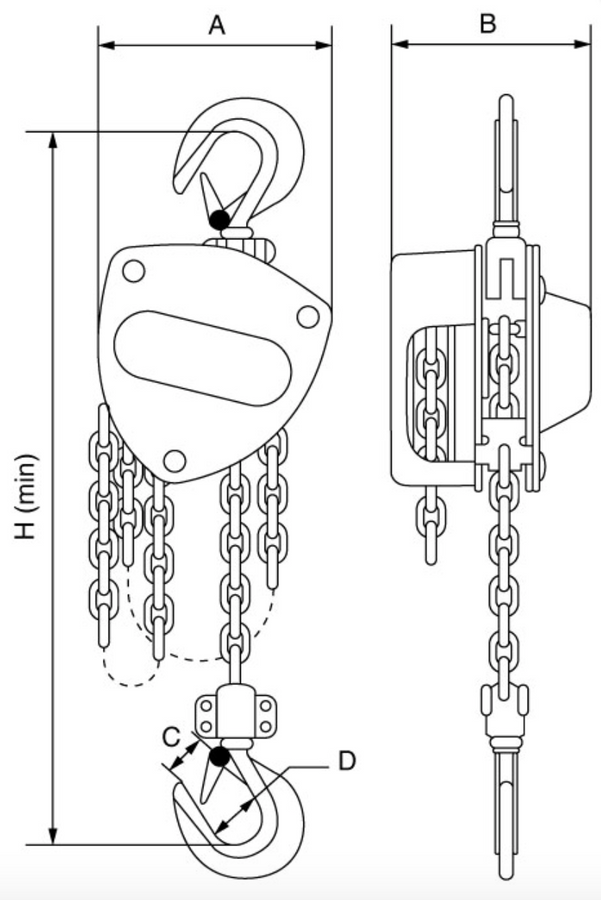

Product Code | Capacity | A | B | C | D | H (min) | ||||
---|---|---|---|---|---|---|---|---|---|---|
3 mtr | 6 mtr | 10 mtr | 12 mtr | Carcase | kgs | mm | mm | mm | mm | mm |
286-500-1 |
286-500-2 | 286-500-3 | 286-500-4 | 286-500-5 | 500 | 136 | 126.5 | 25.5 | 36 | 266 |
Technical Data
Capacity | Effort req'd to lift max load | Load Chain Dia | Falls of Load Chain | Weight (3 mtr HOL) | Extra Weight per mtr |
---|---|---|---|---|---|
kgs | N | mm | kgs | kgs | |
500 | 210 | 6 x 18 | 1 | 7 | 0.77 |
Fleeting / Cross Hauling Advice
