5,000kg Chain Block GT Viper

SKU 286-505-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $341.00 - Original price $924.00
Original price
$441.00
$341.00 - $924.00
Current price $441.00
Height of Lift: 3m

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

 GT Viper Chain Block 5,000kg Capacity

  • Each hoist is made with high performance materials for extra durability.
  • Matt black finish.
  • Meets the W.L.L. performance requirements of BS EN 13157.
  • Minimum break load 4 times the W.L.L.
  • Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
  • Electro galvanised calibrated hand chain.
  • The sealed bearings in each unit ensure extra protection and allow complete repair flexibility.
  • Top and bottom hooks with heavy duty cast catches.
  • For heights of lift above 12 mtrs please consult Orplex for technical advice and product guidance.
  • Whilst fleeting or cross hauling is not recommended practice, these items can be used in accordance within the specific safety guidelines for this purpose –please check our attached manufacturers guidance
  • Marked in accordance with BS EN 13157.
  • Certification available



Spec

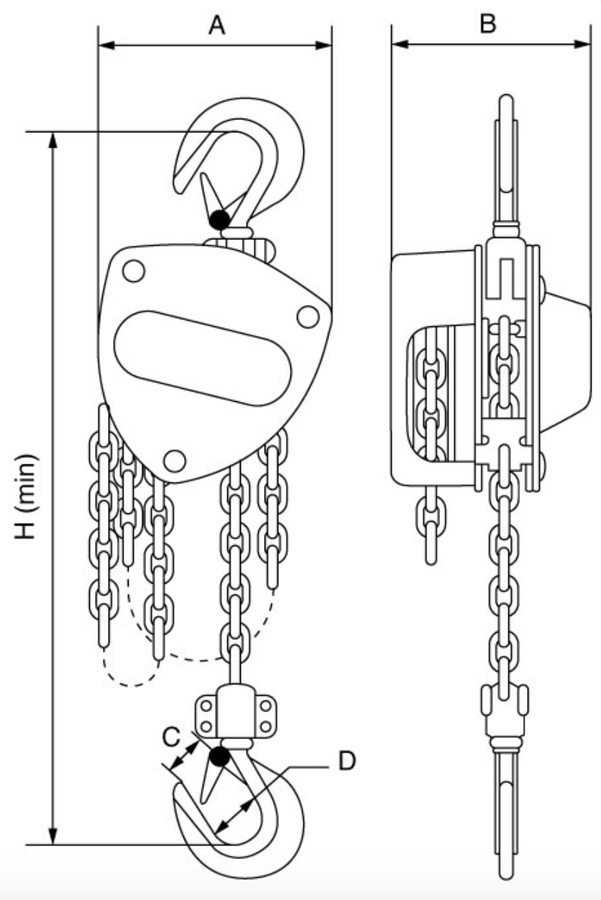

Product Code Capacity A B C D H (min)
3 mtr 6 mtr 12 mtr Carcase kgs mm mm mm mm mm
286-505-1 286-505-2 286-505-4 286-505-5 5,000 266 181 50 68 636



Technical Data

Capacity Effort req'd to lift max load Load Chain Dia Falls of Load Chain Weight (3 mtr HOL) Extra Weight per mtr
kgs N mm kgs kgs
5,000 358 10 x 30 2 42 4.3



User Manual

Fleeting / Cross Hauling Advice
