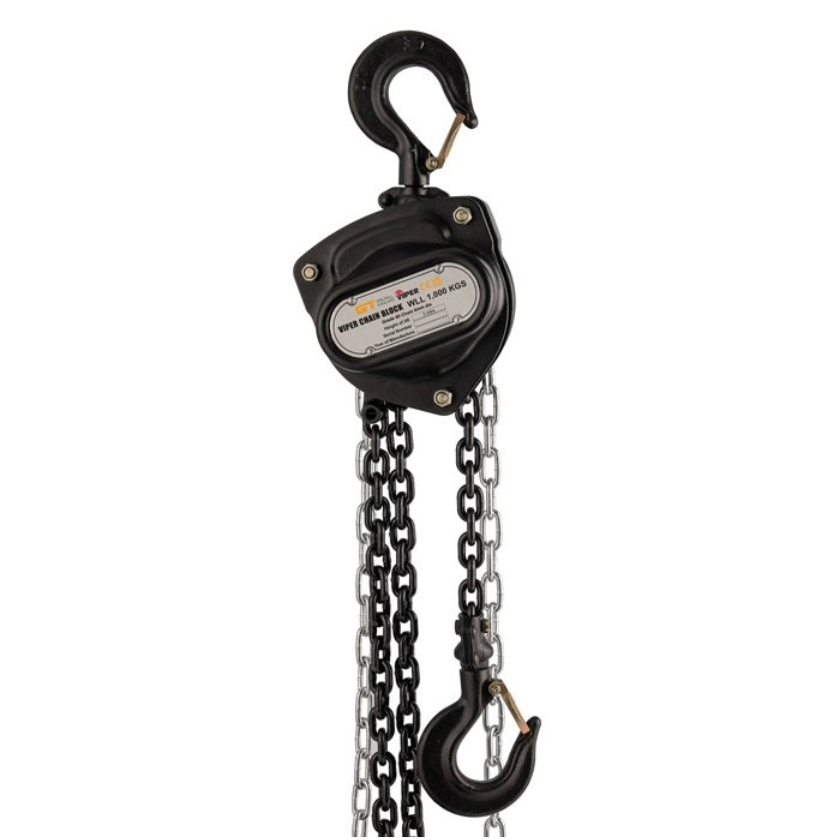

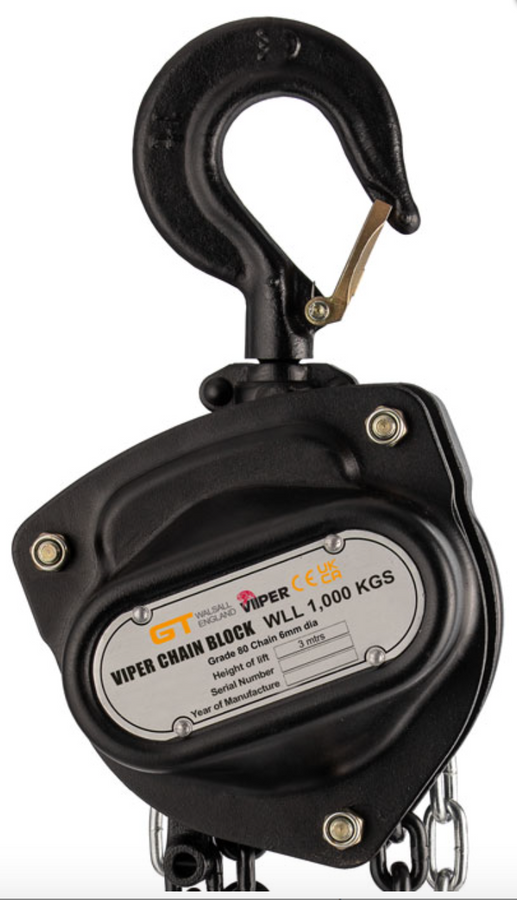

GT Viper Chain Block 3,000kg Capacity - HSZ-L - VCB
- Each hoist is made with high performance materials for extra durability.
- Matt black finish.
- Meets the W.L.L. performance requirements of BS EN 13157.
- Minimum break load 4 times the W.L.L.
- Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
- Electro galvanised calibrated hand chain.
- The sealed bearings in each unit ensure extra protection and allow complete repair flexibility.
- Top and bottom hooks with heavy duty cast catches.
- For heights of lift above 12 mtrs please consult Orplex for technical advice and product guidance.
- Whilst fleeting or cross hauling is not recommended practice, these items can be used in accordance within the specific safety guidelines for this purpose –please check our attached manufacturers guidance
- Marked in accordance with BS EN 13157.
- Certification available

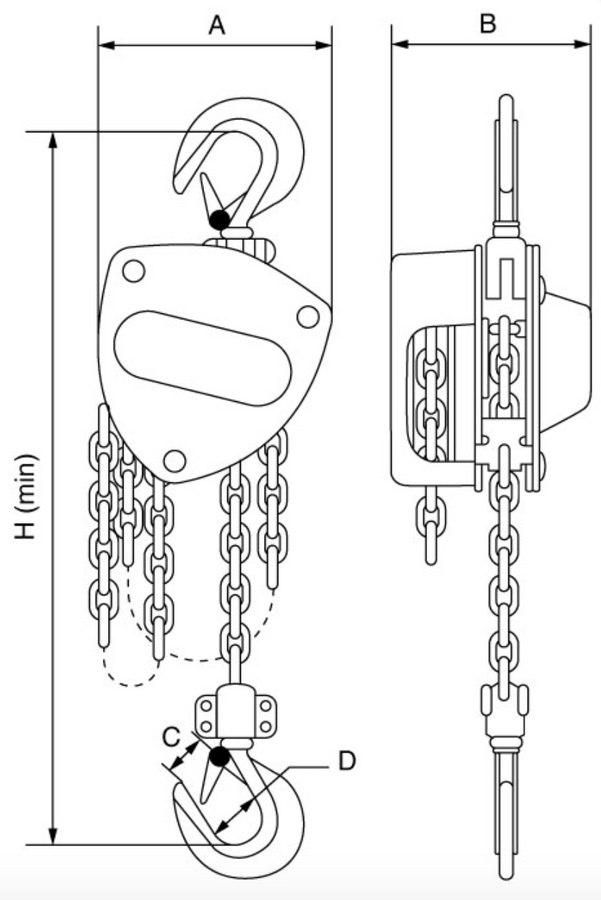

Spec
| Product Code | Capacity | A | B | C | D | H (min) | |||
|---|---|---|---|---|---|---|---|---|---|
| 3 mtr | 6 mtr | 12 mtr | Carcase | kgs | mm | mm | mm | mm | mm |
| 286-504-1 | 286-504-2 | 286-504-4 | 286-504-5 | 3,000 | 214 | 156 | 42 | 60 | 465 |
Technical Data
| Capacity | Effort req'd to lift max load | Load Chain Dia | Falls of Load Chain | Weight (3 mtr HOL) | Extra Weight per mtr |
|---|---|---|---|---|---|
| kgs | N | mm | kgs | kgs | |
| 3,000 | 280 | 7.1 x 21 | 2 | 21 | 2.14 |
