GT Viper Chain Block 2,000kg Capacity

2,000kg GT Viper hand chain block for general engineering, fabrication and construction lifting, delivering 2 tonnes of dependable manual hoisting on site.
2,000kg hand chain block specification
The 2 tonne GT Viper still lifts on a single fall of load chain but steps up to a heavier 8 x 24mm Grade 80 chain for demanding workshop and site duties.
-
Capacity: 2,000kg on a single fall of load chain
-
Grade 80 load chain sized 8 x 24mm
-
Effort to lift the rated load: 272N
-
Net weight from 18kg at 3m height of lift
-
Minimum headroom of 407mm
Built to last and fully certified
High performance materials, a matt black finish and sealed bearings give long service and simple repair, while the top and bottom hooks carry heavy duty cast catches. It meets the WLL requirements of BS EN 13157, uses Grade 80 calibrated load chain to BS EN 818-7 and has a minimum break load four times the working load limit, with certification available.
Explore the full range of hand chain blocks or match it with rated round slings for safe load attachment.

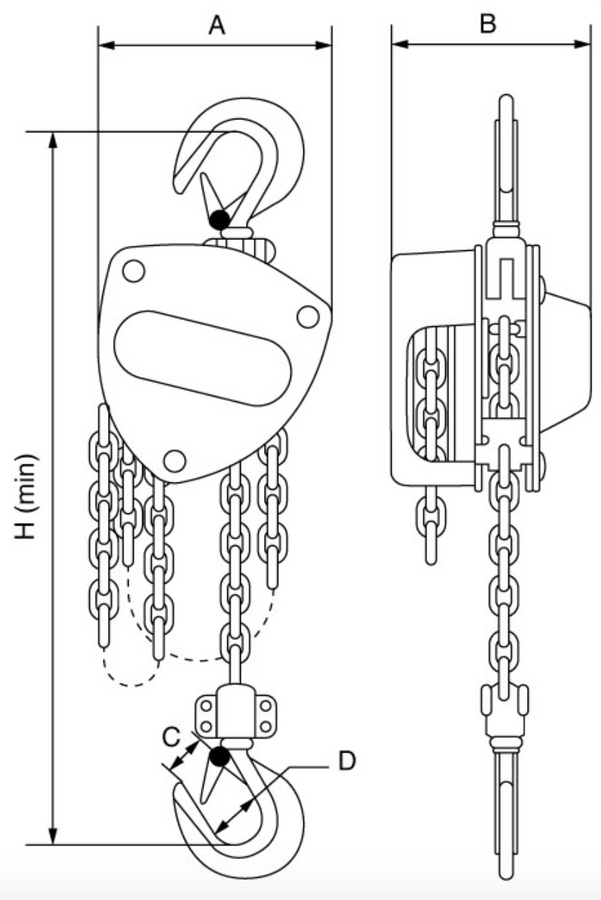

Spec
| Product Code |
Capacity |
A |
B |
C |
D |
H (min) |
| 3 mtr |
6 mtr |
12 mtr |
Carcase |
kgs |
mm |
mm |
mm |
mm |
mm |
| 286-503-1 |
286-503-2 |
286-503-4 |
286-503-5 |
2,000 |
198 |
152 |
38 |
52 |
407 |
Technical Data
| Capacity |
Effort req'd to lift max load |
Load Chain Dia |
Falls of Load Chain |
Weight (3 mtr HOL) |
Extra Weight per mtr |
| kgs |
N |
mm |
|
kgs |
kgs |
| 2,000 |
272 |
8 x 24 |
1 |
18 |
1.36 |
