10,000kg Chain Block GT Viper

SKU 286-506-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $623.00 - Original price $1,860.00
Original price
$841.00
$623.00 - $1,860.00
Current price $841.00
Inc Vat
Height of Lift: 3m

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

 GT Viper Chain Block 10,000kg Capacity

  • Each hoist is made with high performance materials for extra durability.
  • Matt black finish.
  • Meets the W.L.L. performance requirements of BS EN 13157.
  • Minimum break load 4 times the W.L.L.
  • Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
  • Electro galvanised calibrated hand chain.
  • The sealed bearings in each unit ensure extra protection and allow complete repair flexibility.
  • Top and bottom hooks with heavy duty cast catches.
  • For heights of lift above 12 mtrs please consult Orplex for technical advice and product guidance.
  • Whilst fleeting or cross hauling is not recommended practice, these items can be used in accordance within the specific safety guidelines for this purpose –please check our attached manufacturers guidance
  • Marked in accordance with BS EN 13157.
  • Certification available



Spec

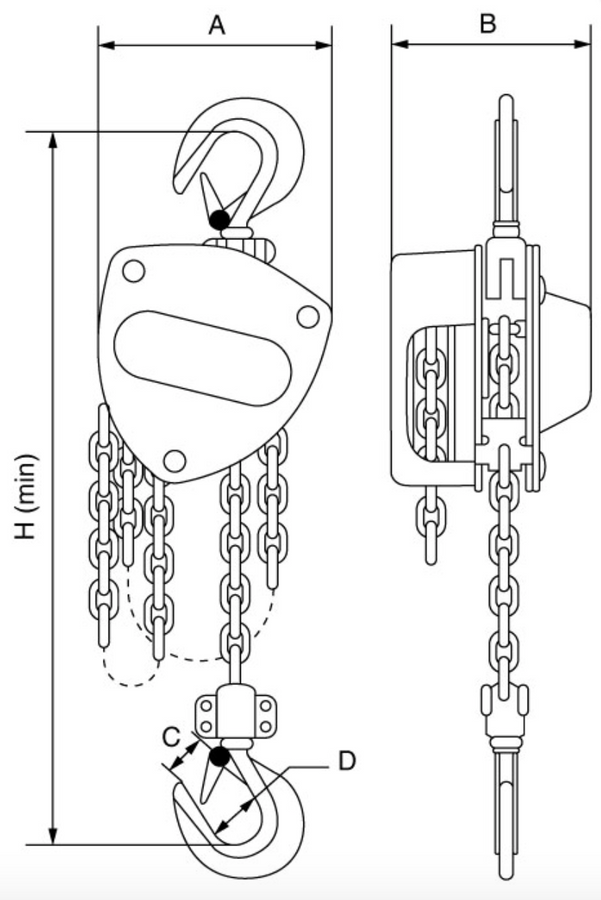

Product Code Capacity A B C D H (min)
3 mtr 6 mtr 12 mtr Carcase kgs mm mm mm mm mm
VCB0.5T3 VCB0.5T6 VCB0.5T12 VCB0.5TC 500 136 126.5 25.5 36 266
VCB1T3 VCB1T6 VCB1T12 VCB1TC 1,000 156 143 28 40 324
VCB1.5T3 VCB1.5T6 VCB1.5T12 VCB1.5TC 1,500 182 148 38 52 392
VCB2T3 VCB2T6 VCB2T12 VCB2TC 2,000 198 152 38 52 407
VCB3T3 VCB3T6 VCB3T12 VCB3TC 3,000 214 156 42 60 465
VCB5T3 VCB5T6 VCB5T12 VCB5TC 5,000 266 181 50 68 636
VCB10T3 VCB10T6 VCB10T12 VCB10TC 10,000 365 181 57 85 798
VCB20T3 VCB20T6 VCB20T12 VCB20TC 20,000 630 192 84 106 890
VCB30T3 VCB30T6 VCB30T12 VCB30TC 30,000 670 330 84 106 1000



Technical Data

Capacity Effort req'd to lift max load Load Chain Dia Falls of Load Chain Weight (3 mtr HOL) Extra Weight per mtr
kgs N mm kgs kgs
500 210 6 x 18 1 7 0.77
1,000 260 6 x 18 1 10.5 0.77
1,500 265 7.1 x 21 1 17 1.07
2,000 272 8 x 24 1 18 1.36
3,000 280 7.1 x 21 2 21 2.14
5,000 358 10 x 30 2 42 4.3
10,000 370 10 x 30 4 72.6 8.6
20,000 370 x 2 10 x 30 8 162 17.2
30,000 370 x 2 10 x 30  12 228 25.8



User Manual

Fleeting / Cross Hauling Advice
