GT Viper Adjustable Beam Clamp

GT Viper Adjustable Beam Clamp

by GT Viper
SKU 286-521-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
£54.00 - £204.00
£54.00
£54.00 - £204.00
£54.00

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

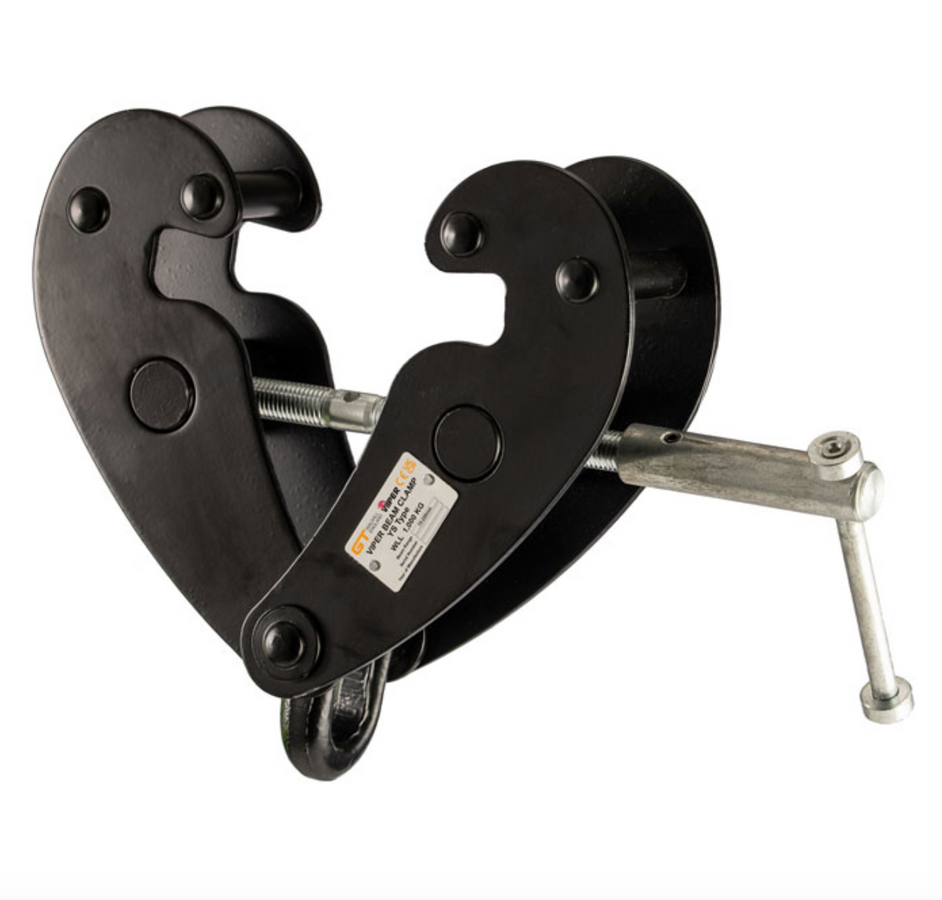

GT Viper Adjustable Beam Clamp VBC - YS Type
  • Heavy duty construction allows safe and secure grip in the beam.
  • Matt black finish.
  • Meets the W.L.L. performance requirements of BS EN 13155.
  • Minimum breaking load is 4 times the W.L.L.
  • Easy and simple mounting.
  • Adjustable to fit a wide range of flange widths and beams.
  • Special jaw design applies the load away from the flange edge, thus reducing flange stress.
  • Marked in accordance with BS EN 13155.
  • Certification available DoC


      Spec

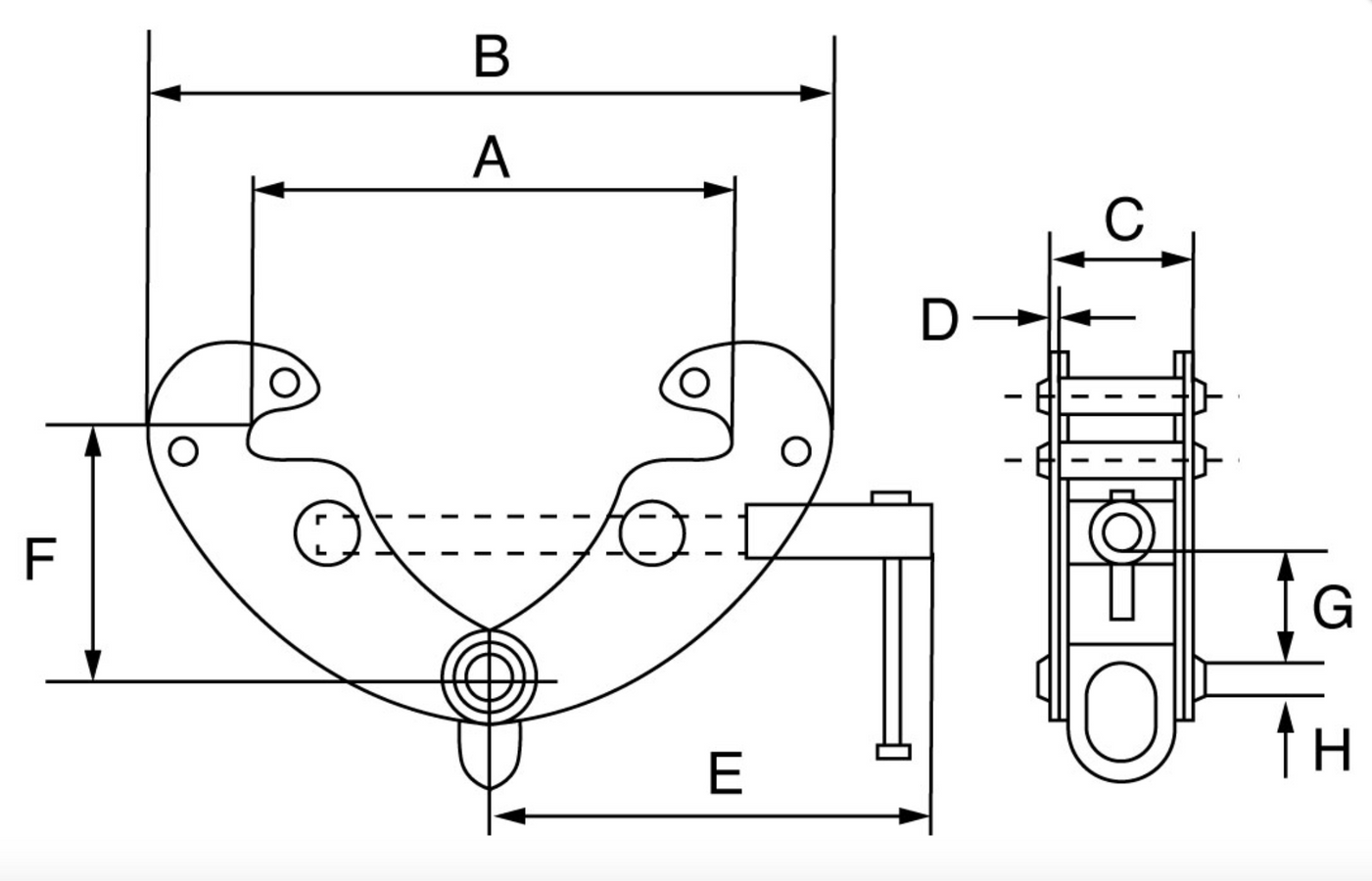

      SKU W.L.L. Beam Range A max B min B max C D E F min F max G min Weight
      kgs mm mm mm mm mm mm mm mm mm mm kgs
      286-521-1 1,000 75 - 220 295 185 400 80 4 225 90 165 25 3.8
      286-521-2 2,000 75 - 220 295 185 400 85 6 225 90 165 25 5
      286-521-3 3,000 80 - 320 365 240 520 117 8 258 135 225 45 9
      286-521-4 5,000 80 - 320 365 240 520 125 10 258 135 225 45 11
      286-521-5 10,000 90 - 320 365 255 520 158 12 280 160 230 50 16
