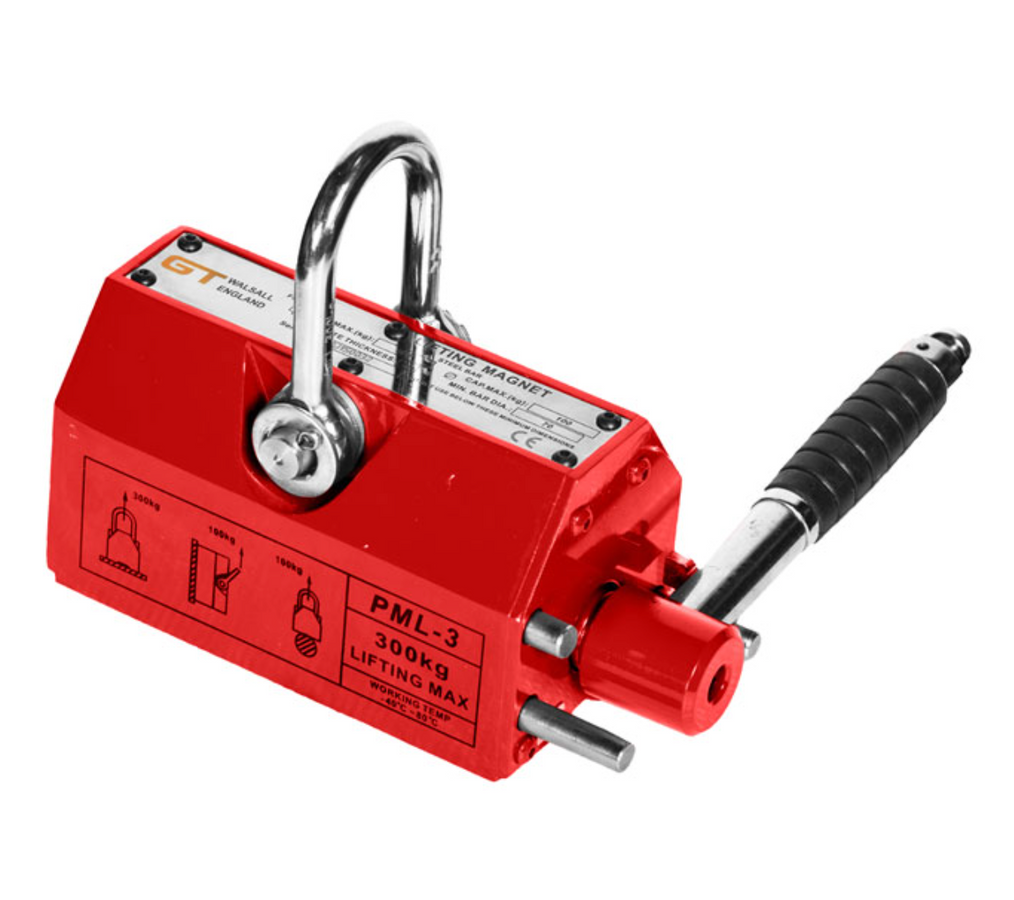

GT Permanent Magnetic Lifter to BS-EN 13155
Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk
- Permanent Magnetic Lifter for safe, easy operation and handling.
- Designed for the lifting & handling of magnetic material.
- Requires no extra power, strong magnetic force.
- Red painted finish.
- Conforms to BS EN 13155.
- Temperature range -40ºC up to +80ºC.
- Marked in accordance with BS EN 13155.
- Certification available DoC
Spec

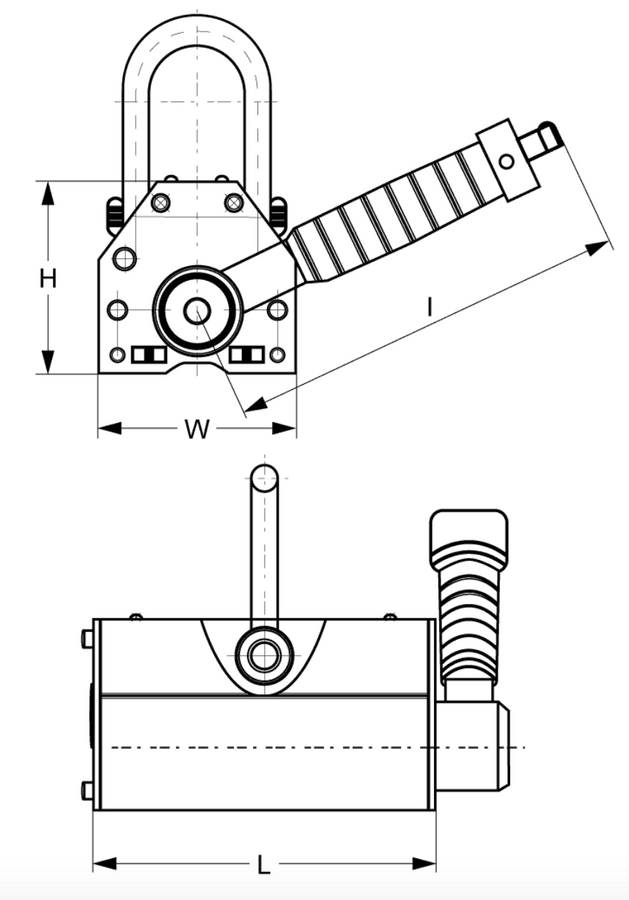

SKU | Product Code | Part No. | Plate Capacity | Cylindrical Capacity | Tear-Off Force | H | I | L | W | Weight |
---|---|---|---|---|---|---|---|---|---|---|
kgs | kgs | kgs | mm | mm | mm | mm | kgs | |||
286-524-1 | PML100 | PML-1 | 100 | 30 | 350 | 70 | 142 | 92 | 64 | 3 |
286-524-2 | PML300 | PML-3 | 300 | 100 | 1,050 | 96 | 176 | 165 | 88 | 10 |
286-524-3 | PML600 | PML-6 | 600 | 200 | 2,100 | 120 | 219 | 236 | 118 | 24 |
286-524-4 | PML1000 | PML-10 | 1,000 | 300 | 3,500 | 168 | 266 | 264 | 168 | 50 |
286-524-5 | PML2000 | PML-20 | 2,000 | 600 | 7,000 | 217 | 462 | 378 | 230 | 125 |
286-524-6 | PML3000 | PML-30 | 3,000 | 1,000 | 10,500 | 265 | 567 | 453 | 290 | 220 |
286-524-7 | PML5000 | PML-50 | 5,000 | 1,500 | 17,500 | 265 | 707 | 647 | 290 | 355 |
286-524-8 | PML6000 | PML-60 | 6,000 | 2,000 | 19,200 | 265 | 707 | 713 | 290 | 398 |
