GT Cobra Grade 80 Swivel Lifting Eyebolt with Ring

SKU 286-604-1
Availability:
5 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
12 in stock, ready to be shipped
Availability:
3 in stock, ready to be shipped
Availability:
5 in stock, ready to be shipped
Availability:
8 in stock, ready to be shipped
Availability:
5 in stock, ready to be shipped
Availability:
12 in stock, ready to be shipped
Availability:
2 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Original price £21.60 - Original price £156.00
Original price
£21.60
£21.60 - £156.00
Current price £21.60

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

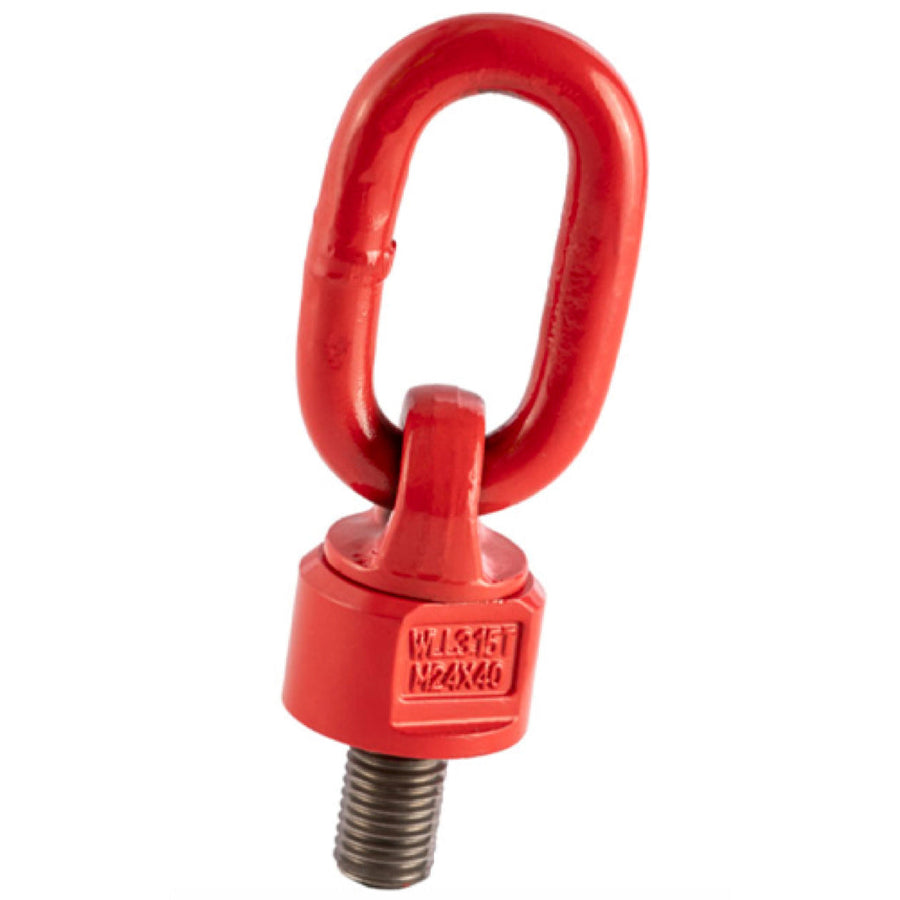

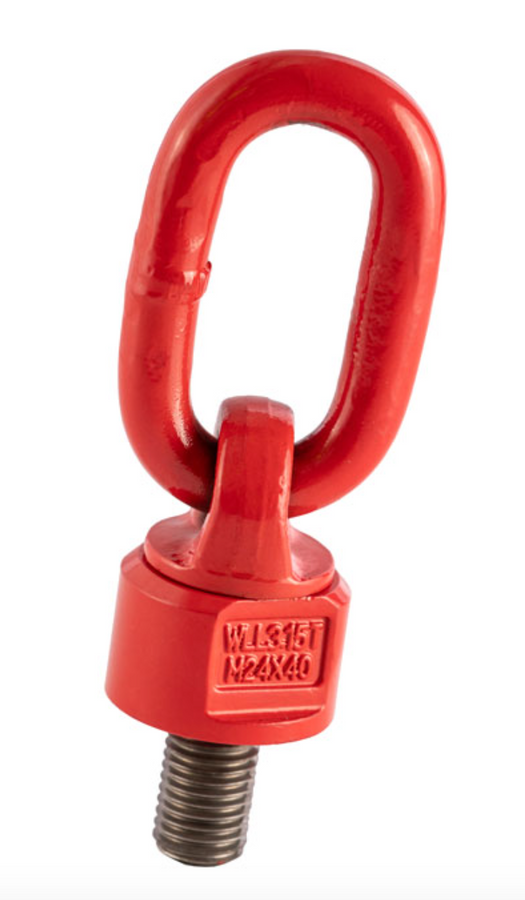

GT Cobra Grade 80 Swivel Lifting Eyebolt with Ring
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Marked with CE, W.L.L, material grade, manufacturers ID and size.
  • Not suitable for rotation under load.
  • Certification - Declaration of Conformity

      Spec

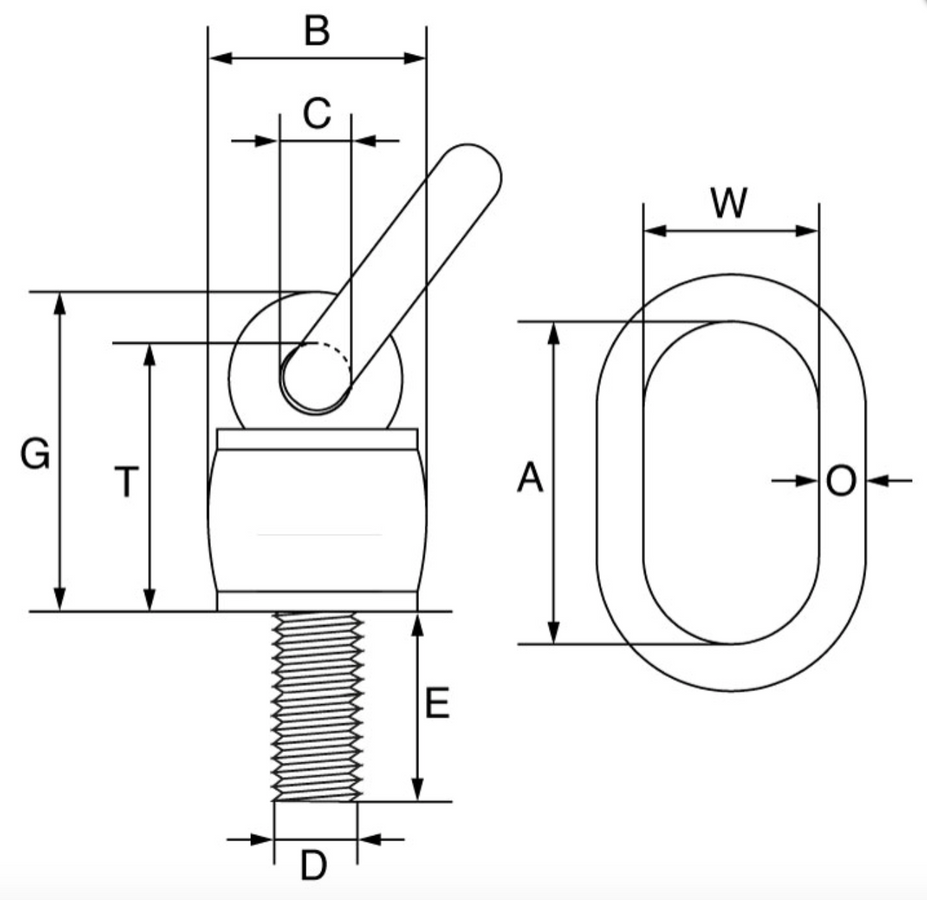

      SKU W.L.L 0° W.L.L 90° D x E A B C G O T W Torque Weight
      t t mm mm mm mm mm mm mm mm Nm kgs
      286-604-1 0.6 0.3 M8 x 13 55 36 16.5 51 14 41 30 10-15 0.45
      286-604-2 1 0.5 M10 x 18 55 36 16.5 51 14 41 30 10-15 0.45
      286-604-3 1 0.5 M10 x 90 55 36 16.5 51 14 41 30 10-15 0.5
      286-604-4 1 0.5 M12 x 18 55 36 16.5 51 14 41 30 10-15 0.46
      286-604-5 1 0.5 M12 x 110 55 36 16.5 51 14 41 30 10-15 0.54
      286-604-6 2.24 1.12 M16 x 20 55 36 16.5 52 14 42 30 20-30 0.47
      286-604-7 2.24 1.12 M16 x 120 55 36 16.5 52 14 42 30 20-30 0.63
      286-604-8 4 2 M20 x 30 70 49.5 19 68 16 56 35 50-70 0.99
      286-604-9 4 2 M20 x 120 70 49.5 19 68 16 56 35 50-70 1.12
      286-604-10 6.3 3.15 M24 x 40 85 57 22 78 18 65.5 40 130-160 1.36
      286-604-11 6.3 3.15 M24 x 120 85 57 22 78 18 65.5 40 130-160 1.65
      286-604-12 10.6 5.3 M30 x 45 85 66 23.5 96.5 22 80.5 40 200-250 2.36
      TBC 10.6 5.3 M30 x 120 85 66 23.5 96.5 22 80.5 40 200-250 2.77
      TBC 12.8 8 M36 x 50 115 80 27 109 22 89.5 50 280-400 3.88
      TBC 12.8 8 M36 x 140 115 80 27 109 22 89.5 50 280-400 4.6
      TBC 16 10 M42 x 60 115 80 27 109 25 89.5 50 500-600 4.56
      TBC 16 10 M42 x 160 115 80 27 109 25 89.5 50 500-600 5.65
      TBC 16 10 M45 x 60 115 80 27 109 25 89.5 50 500-600 4.7
      TBC 16 10 M48 x 72 115 80 27 109 25 89.5 50 500-650 4.9
      TBC 16 10 M48 x 160 115 80 27 109 25 89.5 50 500-650 6.18
      TBC 24 15 M56 x 84 152 117 42 246 32 214 70 600-900 11.8
      TBC 24 15 M64 x 95 152 117 42 257 32 225 70 600-900 12.5
