GT Cobra Grade 80 Collared Eyebolt (Red)

SKU 286-601-1
Availability:
2 in stock, ready to be shipped
Availability:
44 in stock, ready to be shipped
Availability:
19 in stock, ready to be shipped
Availability:
29 in stock, ready to be shipped
Availability:
80 in stock, ready to be shipped
Availability:
In stock
Availability:
24 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Availability:
2 in stock, ready to be shipped
Availability:
2 in stock, ready to be shipped
Original price £1.62 - Original price £51.60
Original price £6.24
£1.62
£1.62 - £51.60
Current price £1.62

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

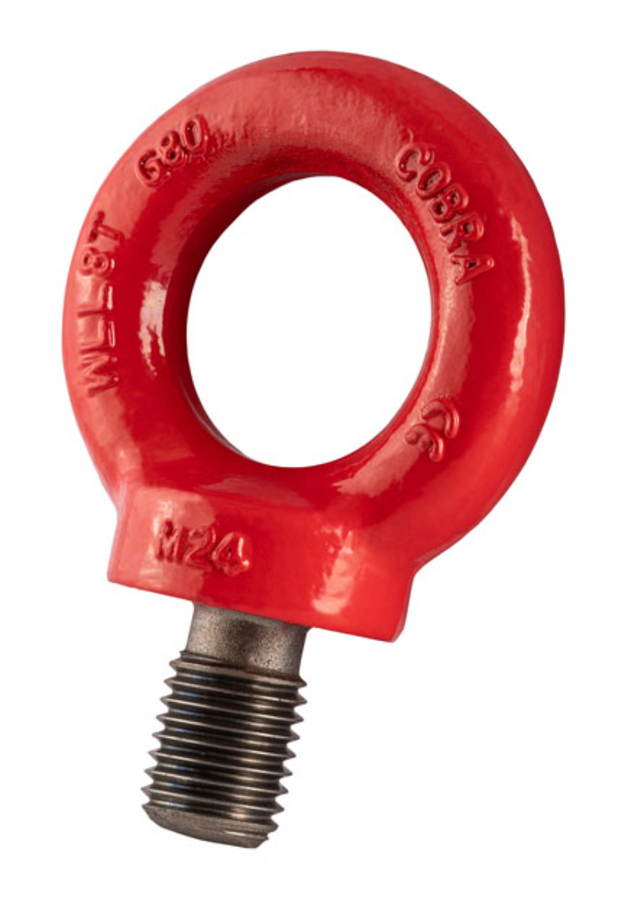

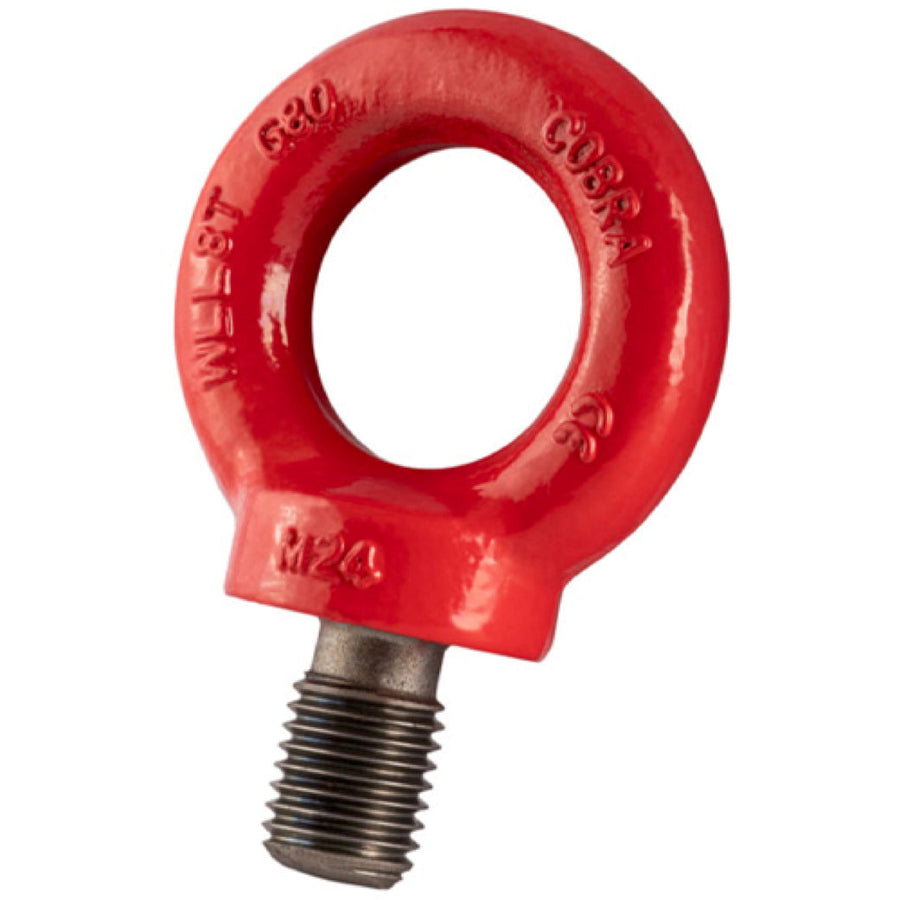

GT Cobra Grade 80 Collared Eyebolt
  • Alloy steel.
  • Red painted finish.
  • Sizes based generally on DIN 580 eyebolts.
  • Minimum breaking load is 4 times the W.L.L.
  • W.L.L. is based upon in line lifting only.
  • Marked with CE, W.L.L, material grade, manufacturers ID and size.
  • For further clarification on reductions for non-axial loading, please consult Rigging UK.
  • Certification - Declaration of Conformity

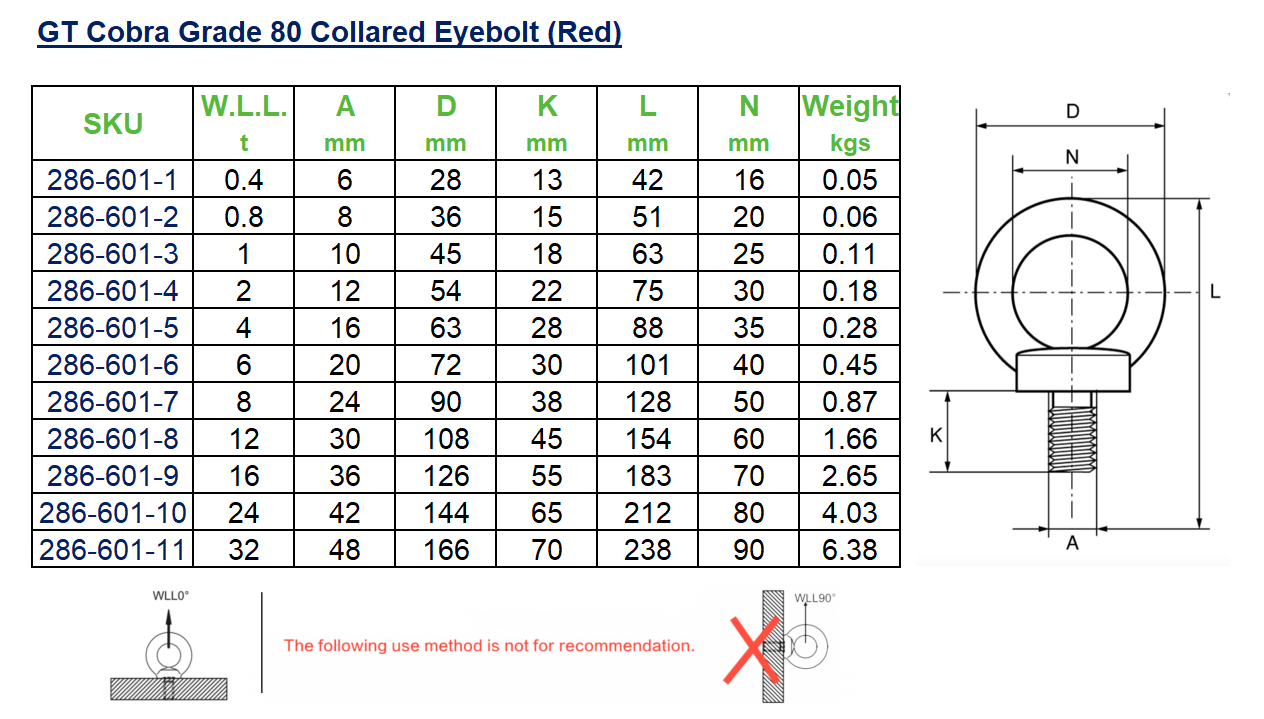

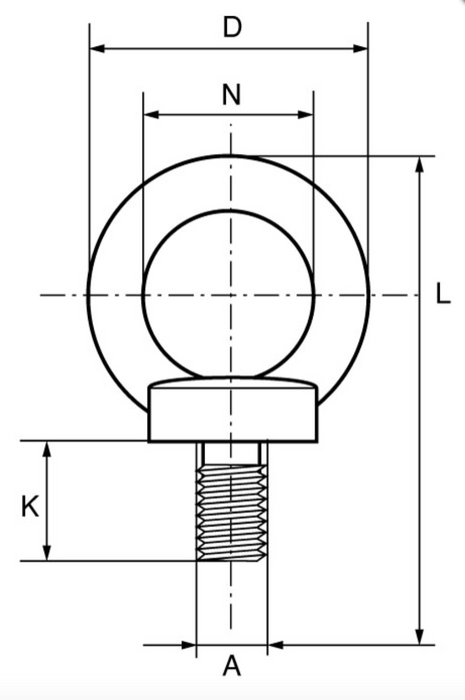

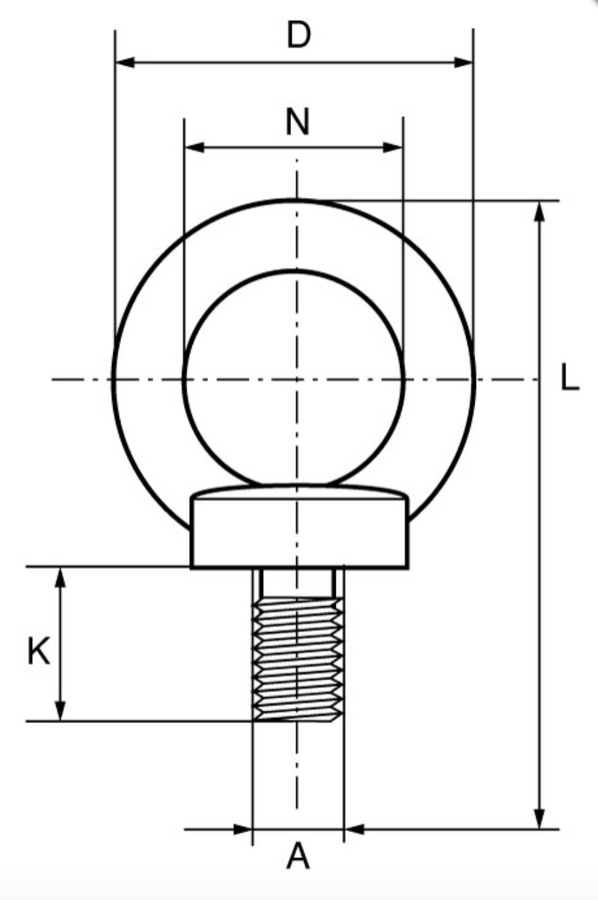

      Spec

      SKU W.L.L. A D K L N Weight
      t mm mm mm mm mm kgs
      286-601-1 0.4 6 28 13 42 16 0.05
      286-601-2 0.8 8 36 15 51 20 0.06
      286-601-3 1 10 45 18 63 25 0.11
      286-601-4 2 12 54 22 75 30 0.18
      286-601-5 4 16 63 28 88 35 0.28
      286-601-6 6 20 72 30 101 40 0.45
      286-601-7 8 24 90 38 128 50 0.87
      286-601-8 12 30 108 45 154 60 1.66
      286-601-9 16 36 126 55 183 70 2.65
      286-601-10 24 42 144 65 212 80 4.03
      286-601-11 32 48 166 70 238 90 6.38
