GT Cobra Grade 80 Clevis Self Locking Hook

SKU 286-118-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $37.00 - Original price $261.00
Original price
$37.00
$37.00 - $261.00
Current price $37.00
Inc Vat
Chain Diameter: 7/8mm

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

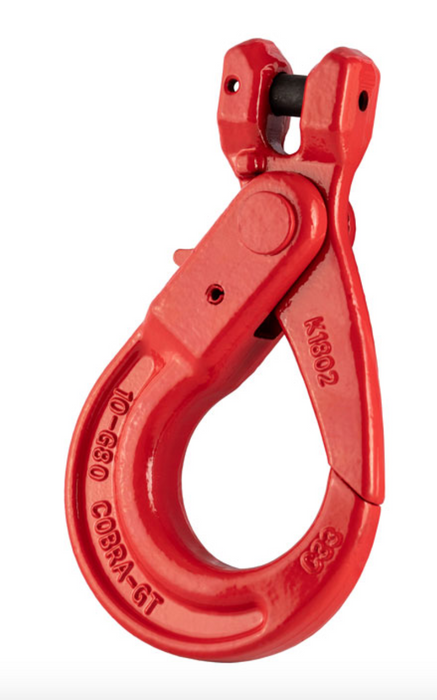

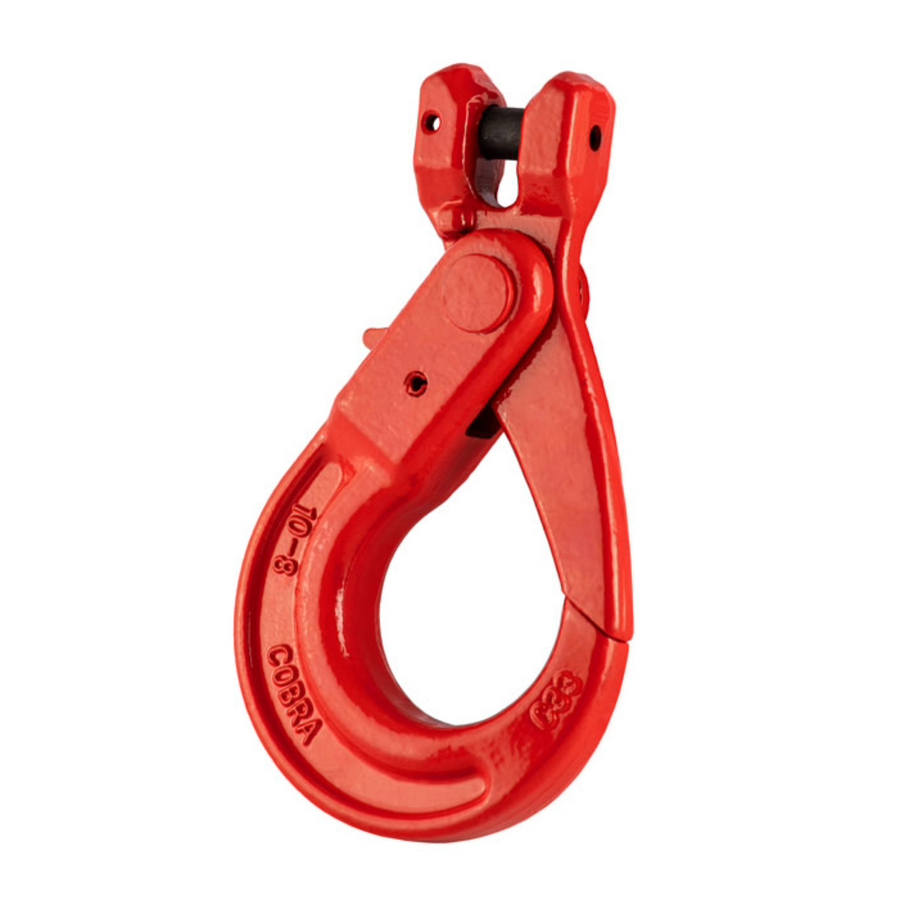

GT Cobra Grade 80 Clevis Self Locking Hook

  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Meets the W.L.L. performance requirements of BS EN 1677-3.
  • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
  • Clevis fitting enables direct connection to chain.
  • Certification available DoC


          SKU

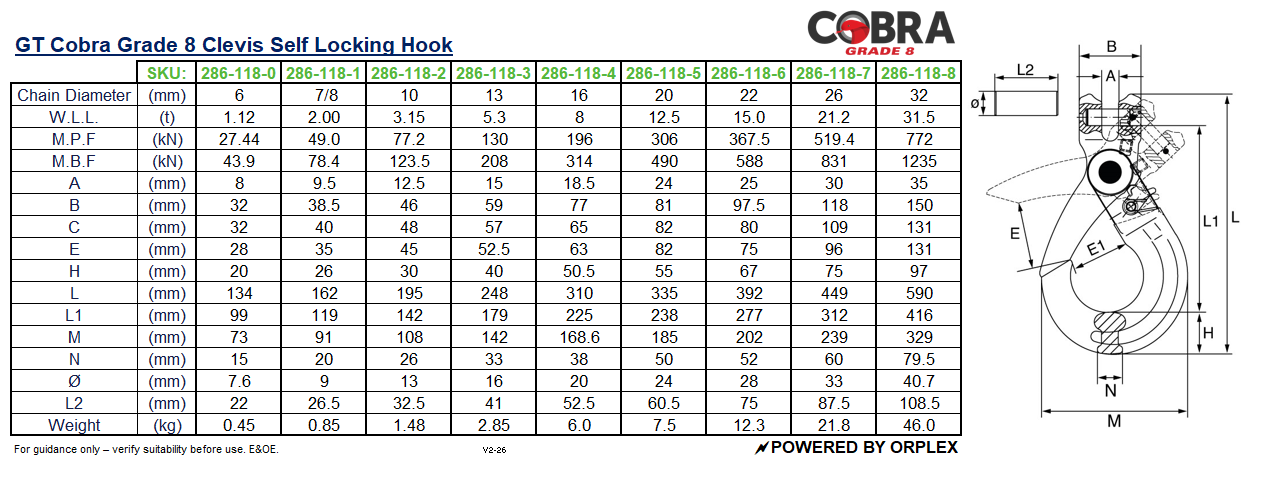

          Part No. Chain Dia A B C E H L L1 M N Ø
          mm mm mm mm mm mm mm mm mm mm mm
          286-118-1
          K1801 7/8 9.5 38.5 39 35 29.5 161.8 119.3 87 20 44
          286-118-2
          K1802 10 12.5 48 48 45 30 195 142 108 26 58
          286-118-3
          K1803 13 15 59 65 52.5 40 249 179 122 33 70
          286-118-4
          K1804 16 18.5 77 65 63.3 50.5 310 224.8 168.6 36 86
          286-118-5
          K1805 20 24 81 85 86 55 335 238 185 50 97



          Technical Data

          SKU Part No. Chain Dia W.L.L. M.P.L. M.B.L. Packing Qty Weight
          mm t t t kgs
          286-118-1 K1801 7/8 2 4 8 25 0.8
          286-118-2 K1802 10 3.15 6.3 12.6 14 1.38
          286-118-3 K1803 13 5.3 10.6 21.2 6 2.81
          286-118-4 K1804 16 8 16 32 3 6
          286-118-5 K1805 20 12.5 25 50 2 7.25
