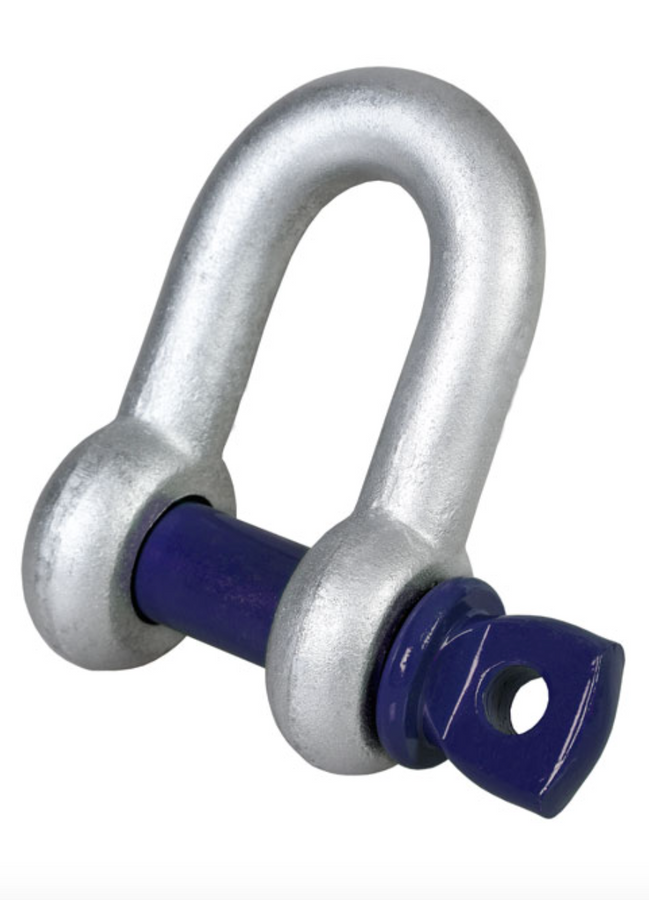

GT Blue Pin Grade 6 Dee Shackles with Screw Collar Pin

£0.91

SKU :269-100-22

WLL

GT Blue Pin Grade 6 Dee Shackles with Screw Collar Pin - BPSCD

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271.
  • Temperature range 0ºC up to +200ºC.
  • Minimum breaking load is 6 times the W.L.L.
  • Marked with CE, W.L.L, manufacturers ID, size and traceability code.
  • Certification available  2.1    3.1*    DoC



Spec

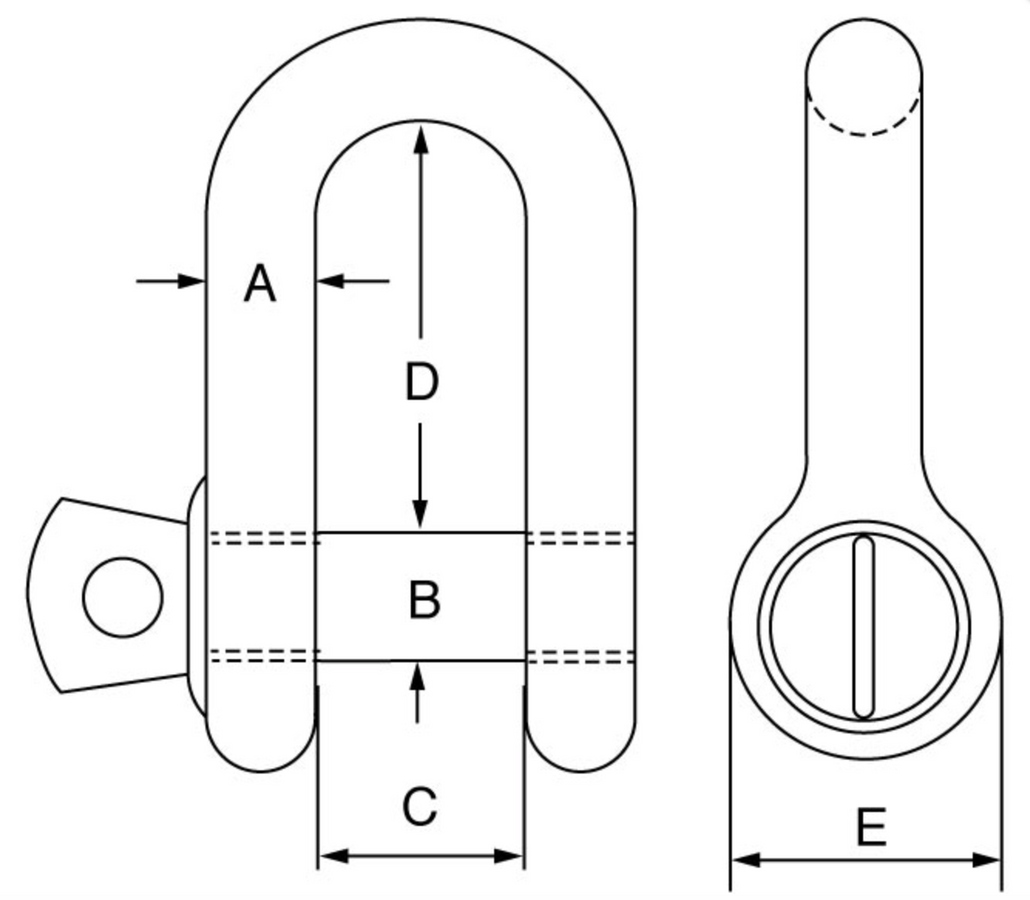

SKU Product Code W.L.L. A B C D E Weight
t mm mm mm mm mm kgs
269-100-22 BPSCD.5 0.5 6.4 8 12 22 20 0.06
269-100-23 BPSCD.75 0.75 8 10 13 26 21 0.11
269-100-24 BPSCD1 1 9.5 11 17 32 26 0.15
269-100-25 BPSCD1.5 1.5 11 12 18 36.5 29 0.21
269-100-26 BPSCD2 2 12.7 16 20.6 41.3 32 0.37
269-100-27 BPSCD3.25 3.25 16 19.8 27 51 43 0.65
269-100-28 BPSCD4.75 4.75 19 22 32 62 51 1.04
269-100-29 BPSCD6.5 6.5 21.7 27 36.6 74.8 58 1.56
269-100-30 BPSCD8.5 8.5 25.4 30 43 81 68 2.32
269-100-31 BPSCD9.5 9.5 28.5 33 46 90 75 3.28
269-100-32 BPSCD12 12 31.5 36 51.6 100.8 83 4.51
269-100-33 BPSCD13.5 13.5 34.9 39 57 112.5 92 5.93
269-100-34 BPSCD17 17 38 42 60 125 99 7.89
269-100-35 BPSCD25 25 44 52 73 146.5 126 13.4
269-100-36 BPSCD35 35 50 56 82 171 138 18.85
269-100-37 BPSCD55 55 63.5 68 105 203 180 37.86





Tech Area

  Duct rod data sheetProduct data sheet
