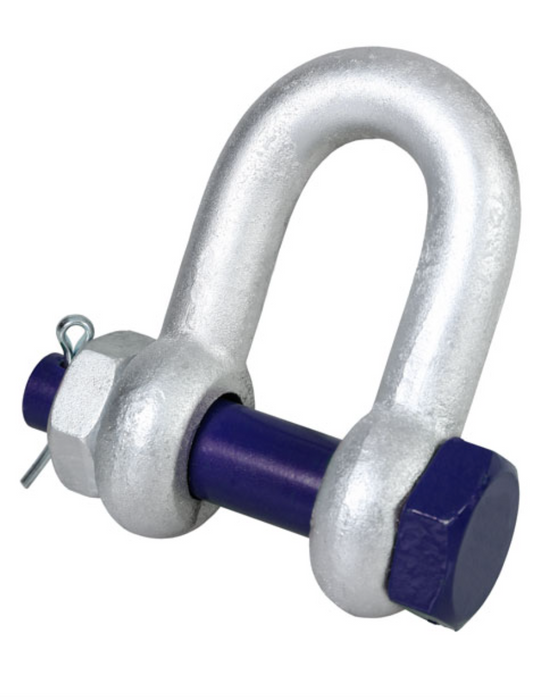

GT Blue Pin Grade 6 Dee Shackle with Safety Nut and Bolt Pin
Quantity Required Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk
GT Blue Pin Grade 6 Dee Shackle with Safety Nut and Bolt Pin
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Hot dipped galvanised finish.
- Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271.
- Temperature range 0ºC up to +200ºC.
- Minimum breaking load is 6 times the W.L.L. up to 85t, and 5 times the W.L.L. above 85t.
- Marked with CE, W.L.L, manufacturers ID, size and traceability code.
- Certification available
Spec

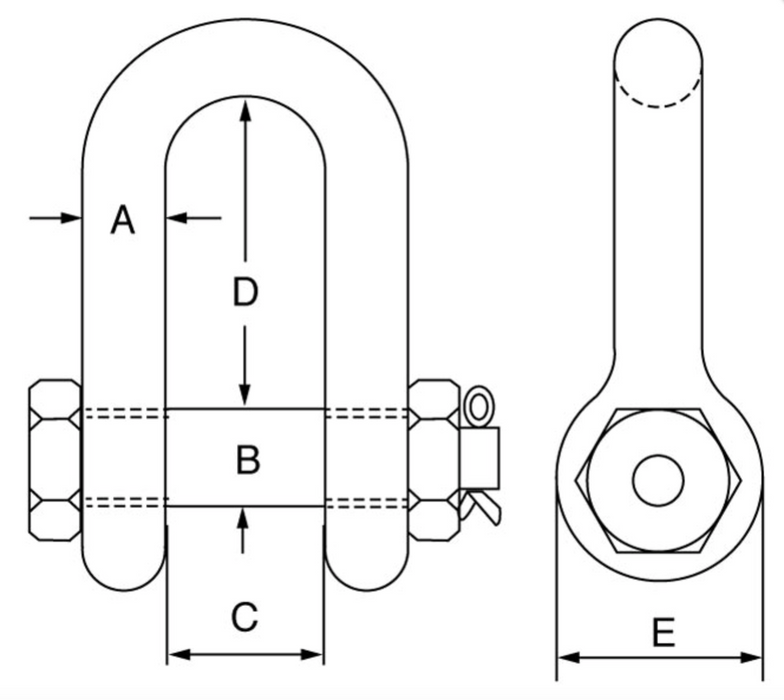

SKU | W.L.L. | A | B | C | D | Weight |
---|---|---|---|---|---|---|
t | mm | mm | mm | mm | kgs | |
269-100-63 | 1 | 9.5 | 12 | 17 | 31.6 | 0.17 |
269-100-64 | 1.5 | 11 | 12 | 18 | 36.5 | 0.25 |
269-100-65 | 2 | 12.7 | 16 | 20.6 | 41.3 | 0.44 |
269-100-66 | 3.25 | 16 | 19.8 | 27 | 51 | 0.79 |
269-100-67 | 4.75 | 19 | 22 | 32 | 62 | 1.26 |
269-100-68 | 6.5 | 22 | 27 | 36.6 | 74.8 | 1.88 |
269-100-69 | 8.5 | 25 | 30 | 43 | 81 | 2.78 |
269-100-70 | 9.5 | 28.5 | 33 | 46 | 89.5 | 3.87 |
269-100-71 | 12 | 31.8 | 36 | 51.6 | 100.8 | 5.26 |
269-100-72 | 13.5 | 34.9 | 39 | 57 | 112.5 | 6.94 |
269-100-73 | 17 | 38 | 42 | 60 | 125 | 8.79 |
269-100-74 | 25 | 44 | 52 | 73 | 140.5 | 14.99 |
269-100-75 | 35 | 50 | 56 | 82 | 171.5 | 20.65 |
269-100-76 | 55 | 63.5 | 68 | 105 | 203 | 41.05 |
269-100-77 | 85 | 75 | 85 | 127 | 230 | 62 |
269-100-78 | 120 | 88 | 95 | 133 | 262 | 106 |
