Green Pin Grade 6 Square Sunken Hole Dee Shackle

SKU 269-32-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $20.00 - Original price $188.00
Original price
$20.00
$20.00 - $188.00
Current price $20.00
WLL: 2t

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

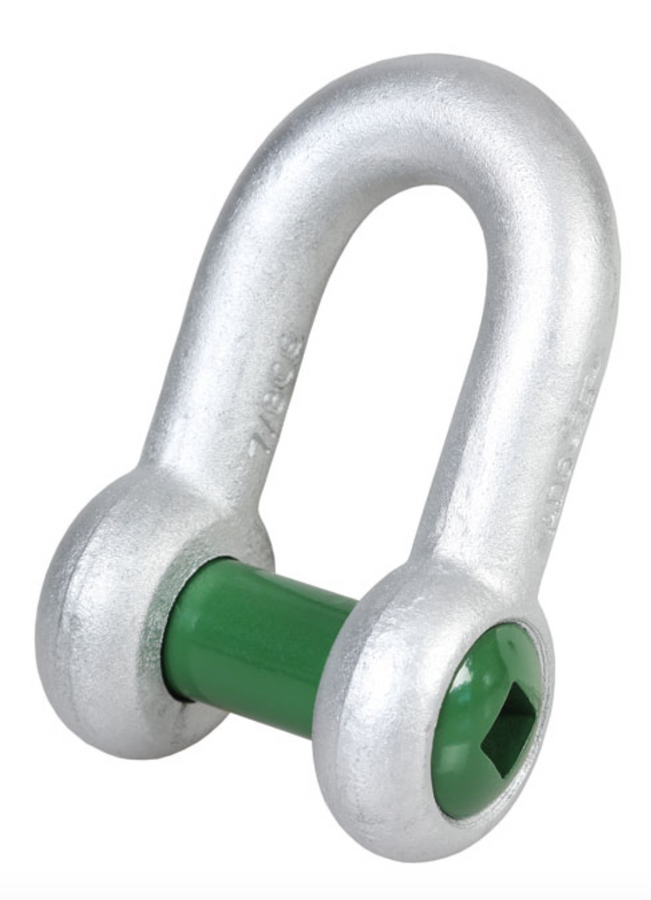

Green Pin Grade 6 Square Sunken Hole Dee Shackle

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Key for unscrewing pin supplied separately (E-4170).
  • Supplied with an EC Declaration of Conformity
  • G-4159

Spec

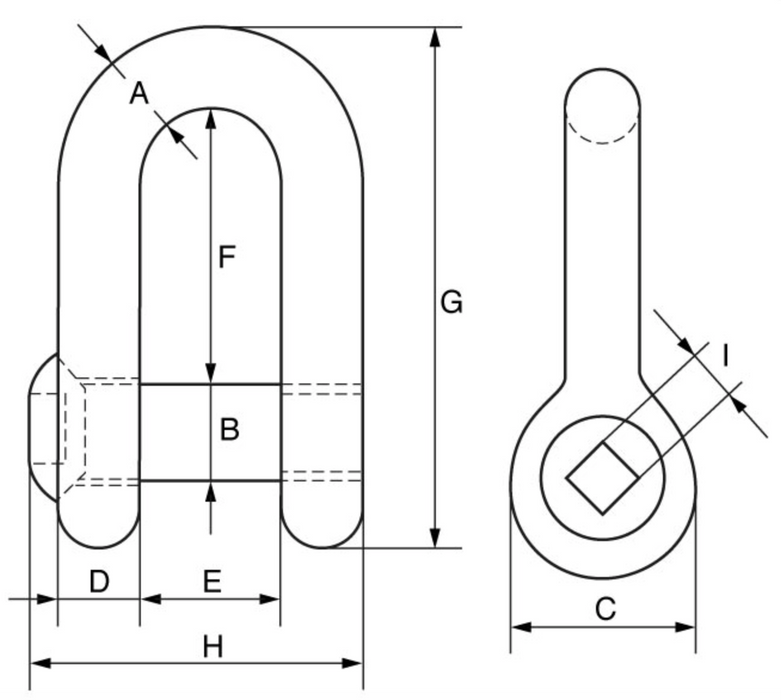

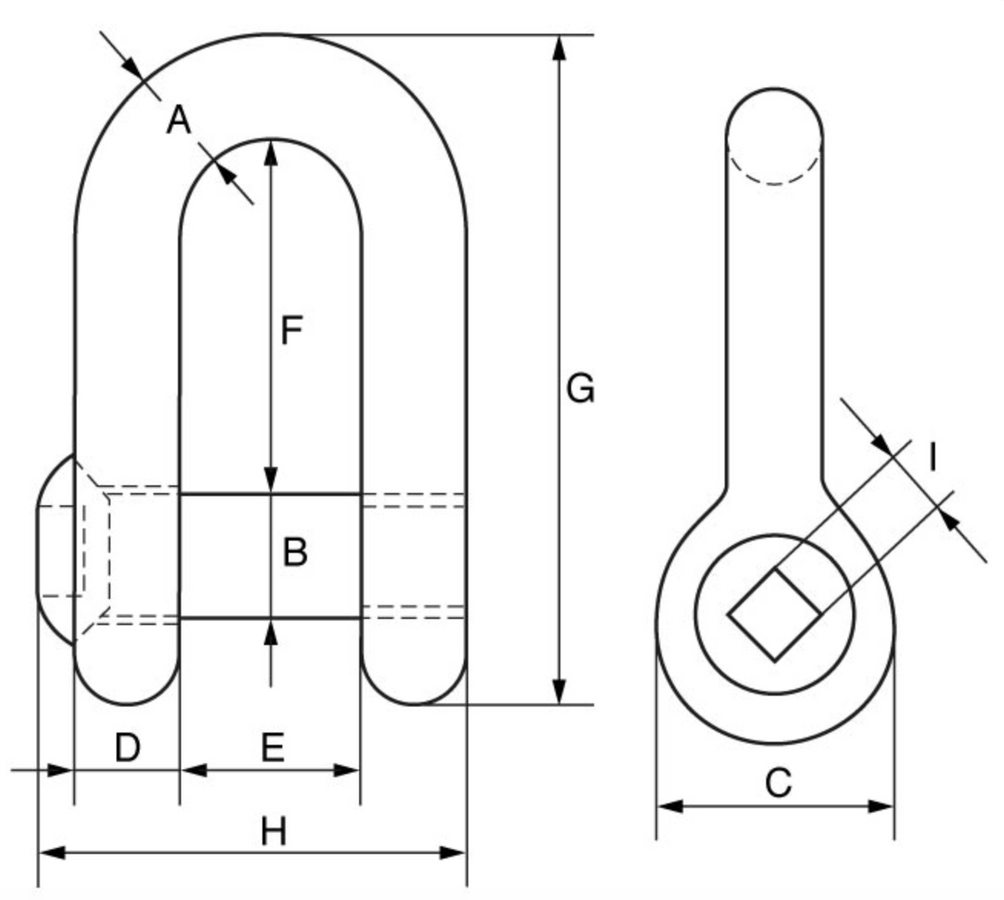

SKU W.L.L A B C D E F G H I Weight
t
mm
mm
mm
mm mm mm mm mm mm
kgs
269-32-1 2 13.5 16 34 13 22 43 81 51 11 0.34
269-32-2 3.25 16 19 40 16 27 51 97 63 11 0.6
269-32-3 4.75 19 22 46 19 31 59 112 74 11 0.98
269-32-4 6.5 22 25 52 22 36 73 134 85 13 1.26
269-32-5 8.5 25 28 59 25 43 85 154 99 13 2.14
269-32-6 9.5 28 32 66 28 47 90 167 110 17 3.05
269-32-7 12 32 35 72 32 51 94 180 122 17 3.56
269-32-X 13.5 35 38 80 35 57 115 209 135 17 5.17
269-32-8 17 38 42 88 38 60 127 230 145 17 6.84
