Green Pin Polar Grade 8 Bow Shackle with Safety Nut and Bolt Pin

SKU 269-23-1
Availability:
5 in stock, ready to be shipped
Availability:
5 in stock, ready to be shipped
Availability:
5 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price £20.57 - Original price £1,544.48
Original price
£20.57
£20.57 - £1,544.48
Current price £20.57

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

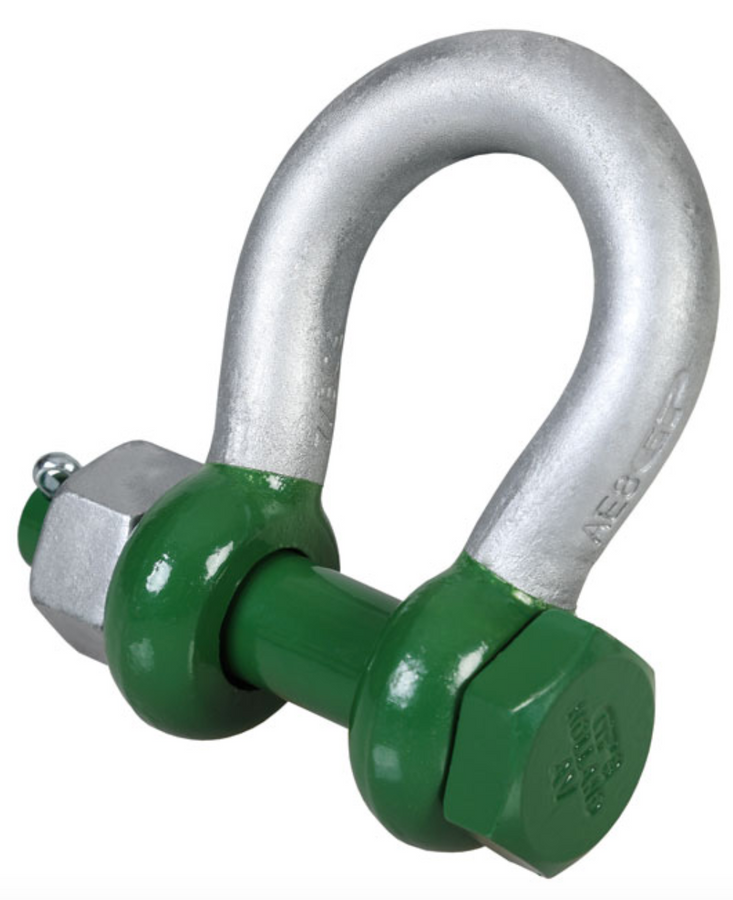

Green Pin Polar  Grade 8 Bow Shackle with Safety Nut and Bolt Pin

  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to BS EN 13889 (from 0.5t to 25t), ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271 Type IVA.
  • Minimum breaking load is 7 times the W.L.L.
  • Temperature range -60ºC up to +200ºC.
  • Full CAD support available upon request.
  • Certification available  2.1    3.1    DoC    DNV GL 2.7-1    DNV GL 0378
  • G-5163

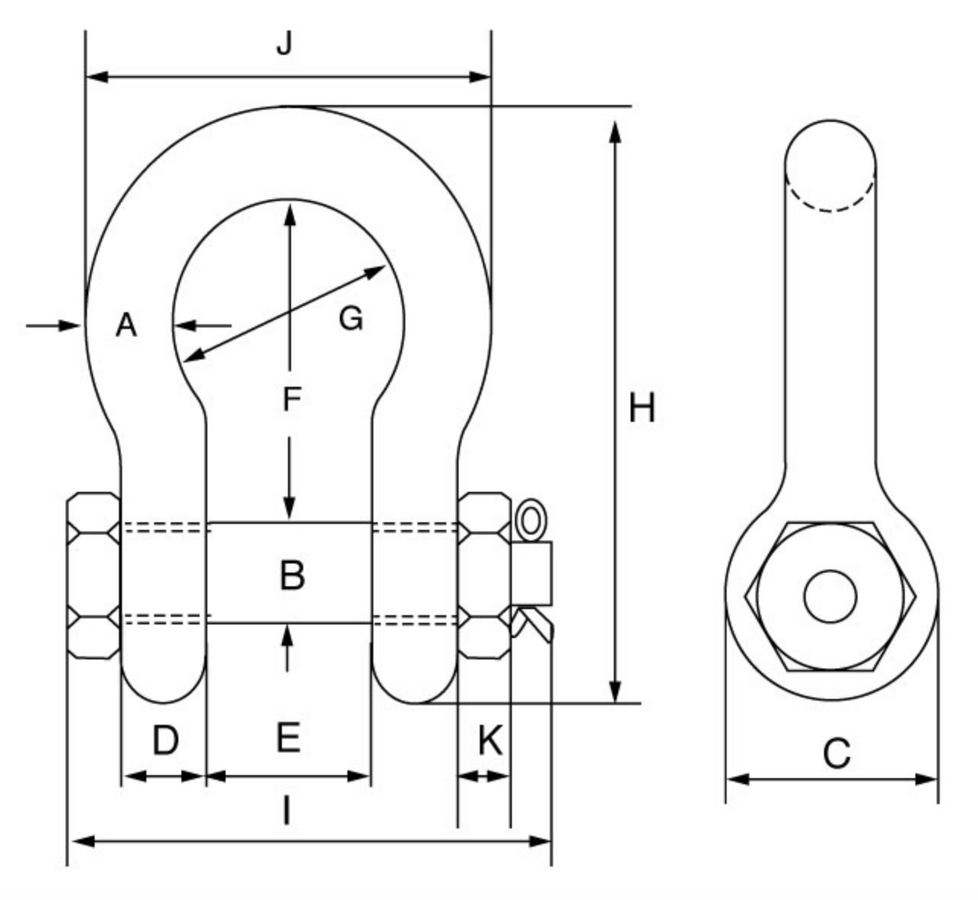

Spec

SKU W.L.L. A B C D E F G H I J K Weight Technical
t mm mm mm mm mm mm mm mm mm mm mm kgs Specification
269-23-1 2 13.5 16 34 13 22 51 32 89 82 58 13 0.42 Download
269-23-2 3.25 16 19 40 16 27 64 43 110 98 75 17 0.74 Download
269-23-3 4.75 19 22 46 19 31 76 51 129 114 89 19 1.18 Download
269-23-4 6.5 22 25 52 22 36 83 58 144 130 102 22 1.77 Download
269-23-5 8.5 25 28 59 25 43 95 68 164 150 118 25 2.58 Download
269-23-6 9.5 28 32 66 28 47 108 75 185 166 131 27 3.66 Download
269-23-7 12 32 35 72 32 51 115 83 201 178 147 30 4.91 Download
269-23-8 13.5 35 38 80 35 57 133 92 227 197 162 33 6.54 Download
269-23-9 17 38 42 88 38 60 146 99 249 202 175 19 8.19 Download
269-23-10 25 45 50 103 45 74 178 126 300 249 216 23 14.22 Download
269-23-11 35 50 57 116 50 83 197 138 334 269 238 26 19.85 Download
269-23-12 42.5 57 65 130 57 95 222 160 377 301 274 29 28.33 Download
269-23-13 55 65 70 145 65 105 260 180 433 330 310 32 39.59 Download
269-23-14 85 75 83 162 73 127 329 190 527 380 340 40 62 Download
