Green Pin Grade 8 Heavy Duty Bow Shackle with Safety Nut & Bolt Pin

SKU 269-20-1
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Awaiting Stock
Original price $1,823.00 - Original price $6,073.00
Original price
$1,823.00
$1,823.00 - $6,073.00
Current price $1,823.00
Inc Vat
WLL: 120t

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

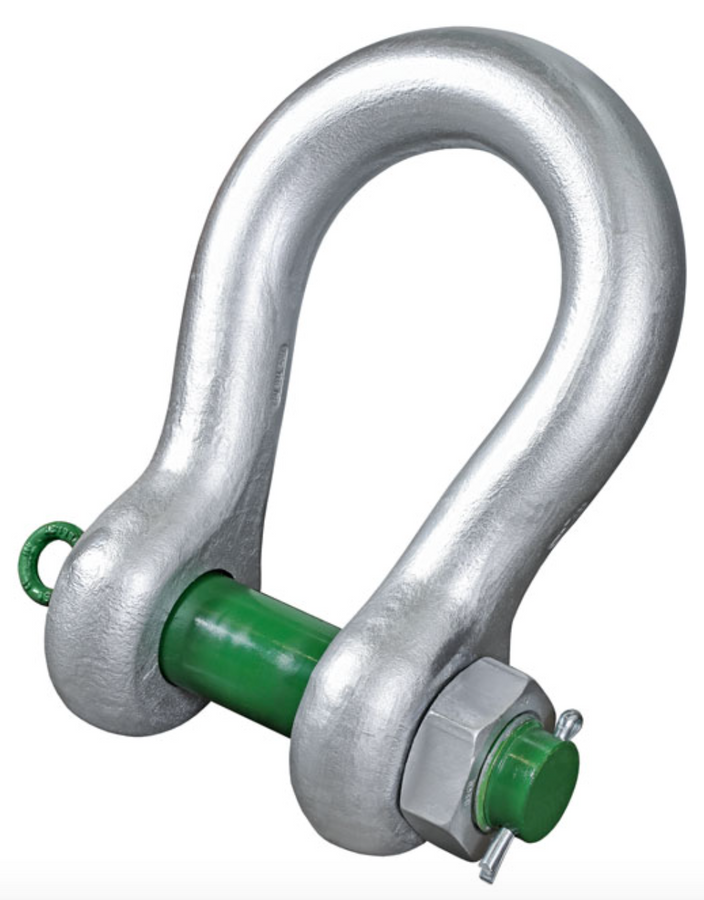

Green Pin Grade 8 Heavy Duty Bow Shackle with Safety Nut & Bolt Pin

  • Grade 8 alloy steel, quenched and tempered.
  • 120t hot dipped galvanised finish.
  • 150t and above are silver painted body and green painted pin.
  • Conforms to ASME B30.26.
  • Minimum breaking load is 5 times the W.L.L.
  • Temperature range up to 300t: -20ºC up to +200ºC, above 300t: 0ºC up to +200ºC.
  • Marked with CE, W.L.L, material grade, manufacturers ID, size and traceability code.
  • Full CAD support available upon request.
  • Certification available  2.1    3.1    DoC    LROS*    DNV GL 2.7-1    MPI    US

Models 269-20-11 (GPHDB4000) and above - PRICE ON APPLICATION

PLEASE NOTE DELIVERY LEADTIME WILL BE CONFIRMED ON ORDER, PLEASE WORK ON 4 to 6 WEEKS FROM ORDER

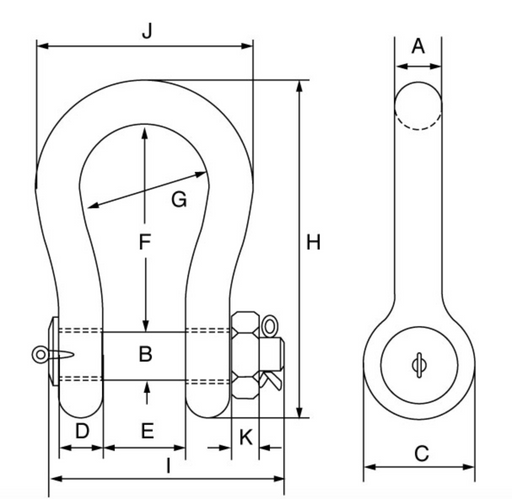

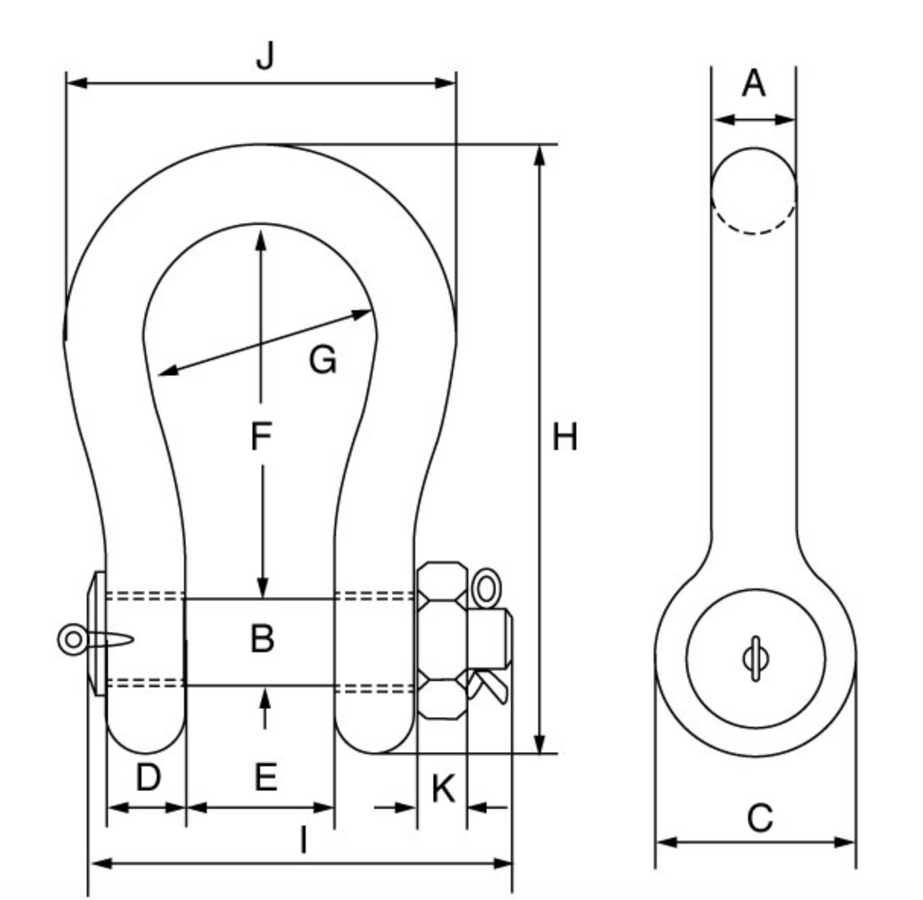

Spec

SKU W.L.L A B C D E F G H I J K Weight Technical
t mm mm mm mm mm mm mm mm mm mm mm kgs / each Specifications
269-20-1 120 95 95 208 95 147 400 238 647 453 416 50 110 Download
269-20-3 150 105 108 238 105 169 410 275 688 496 485 50 160 Download
269-20-5 200 120 130 279 120 179 513 290 838 564 530 70 235 Download
269-20-7 250 130 140 299 130 205 554 305 904 614 565 70 285 Download
269-20-9 300 140 150 325 140 205 618 305 996 644 585 80 340 Download
260-20-11 400 170 175 376 164 231 668 325 1114 690 665 70 560 Download
269-20-12 500 180 185 398 164 256 718 350 1190 720 710 70 685 Download
269-20-13 600 200 205 444 189 282 718 375 1243 810 775 70 880 Download
269-20-14 700 210 215 454 204 308 718 400 1263 870 820 70 980 Download
269-20-15 800 210 220 464 204 308 718 400 1270 870 820 70 1,100 Download
269-20-16 900 220 230 485 215 328 718 420 1296 920 860 70 1,280 Download
269-20-17 1,000 240 240 515 215 349 718 420 1336 940 900 70 1,460 Download
269-20-18 1,250 260 270 585 230 369 768 450 1456 1025 970 70 1,990 Download
269-20-19 1,500 280 290 625 230 369 818 450 1556 1025 1010 70 2,400 Download
