Green Pin Grade 6 Theatre Bow Shackle with Screw Collar Pin

SKU 269-44-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $5.00 - Original price $42.00
Original price
$5.00
$5.00 - $42.00
Current price $5.00
Inc Vat
WLL: 0.33t

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

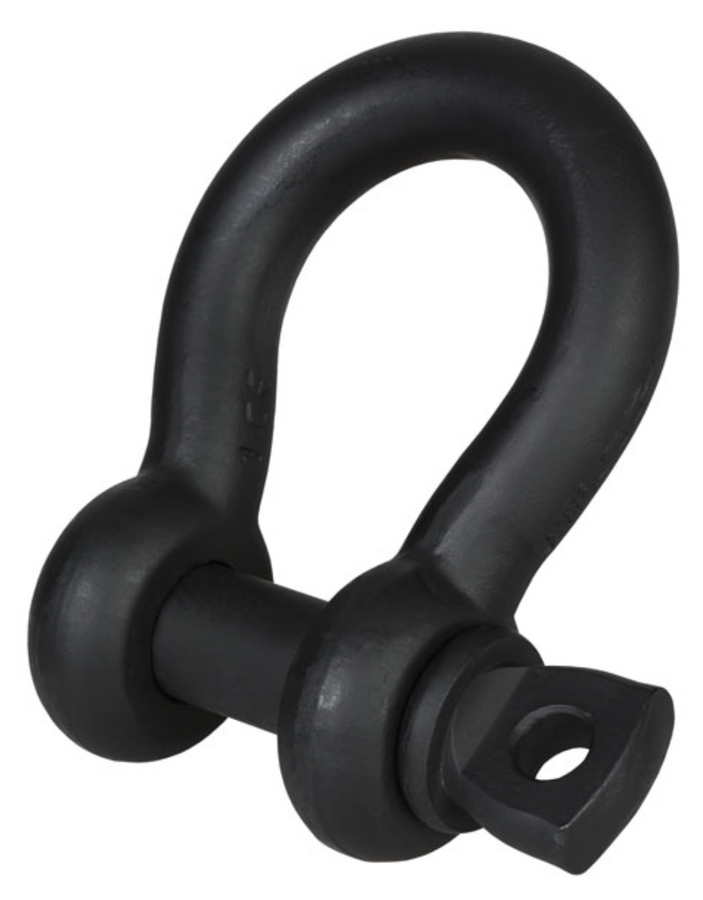

Green Pin Grade 6 Theatre Bow Shackle with Screw Collar Pin

  • Grade 6 high tensile steel, quenched and tempered.
  • Matt black finish.
  • Conforms to BS EN 13889 (from 0.5t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -40°C up to +200°C.
  • Full CAD support available upon request.
  • Certification available DoC
  • P-4161T

All of the performance, none of the reflections. The Green Pin Standard Bow Shackle with Screw Collar has been specially developed for use in theatres and other entertainment venues. Due to its black matt finish, the Theatre Shackle shows no sheen or light reflections and therefore does not distract from the performance on stage. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

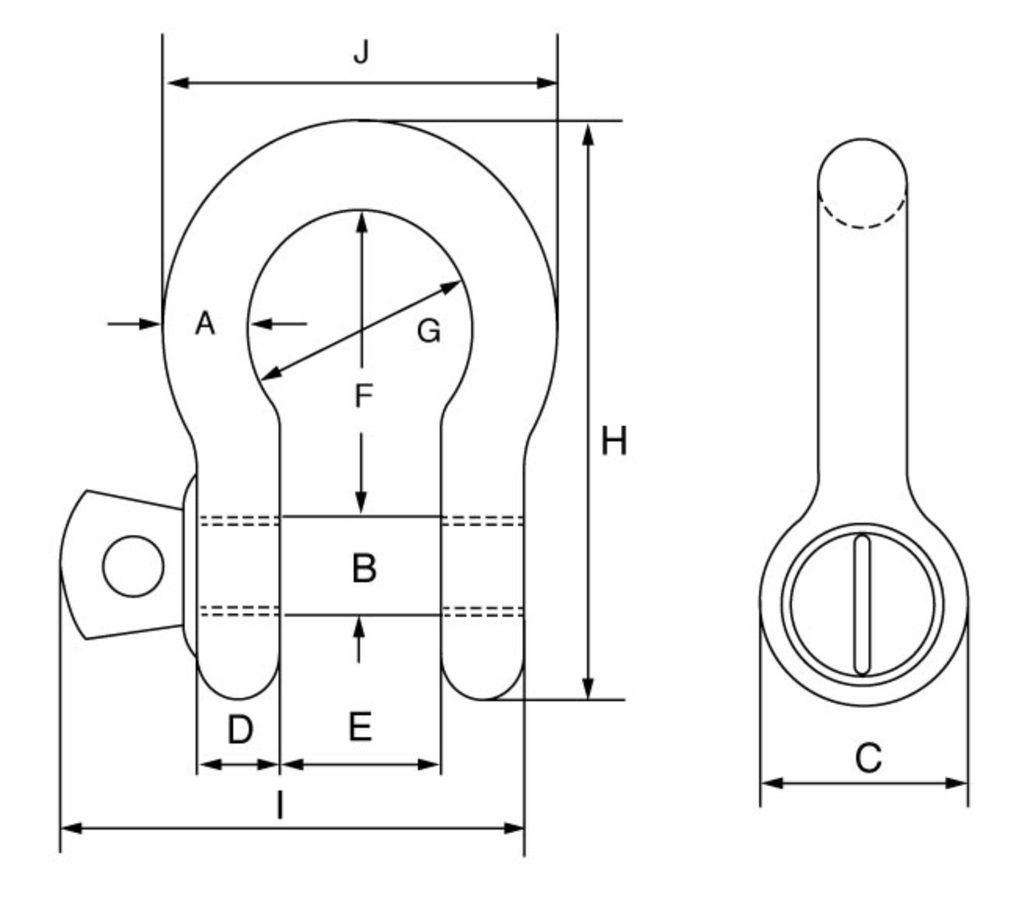

Spec

SKU W.L.L. A B C D E F G H I J Weight
t mm mm mm mm mm mm mm mm mm mm kgs
269-44-1 0.33 5 6 12 5 9.5 22 16 36 29.5 26 0.02
269-44-2 0.5 7 8 16.5 7 12 29 20 48.5 38 34 0.05
269-44-3 0.75 9 10 20 9 13.5 32 22 56 46.5 40 0.1
269-44-4 1 10 11 22.5 10 17 36.5 26 63.5 54 46 0.14
269-44-5 1.5 11 13 26.5 11 19 43 29 74 59.5 51 0.19
269-44-6 2 13.5 16 34 13 22 51 32 89 73 58 0.36
269-44-7 3.25 16 19 40 16 27 64 43 110 89 75 0.63
269-44-8 4.75 19 22 46 19 31 76 51 129 103 89 1.01
269-44-9 6.5 22 25 52 22 36 83 58 144 119 102 1.5
269-44-10 8.5 25 28 59 25 43 95 68 164 137 118 2.21
