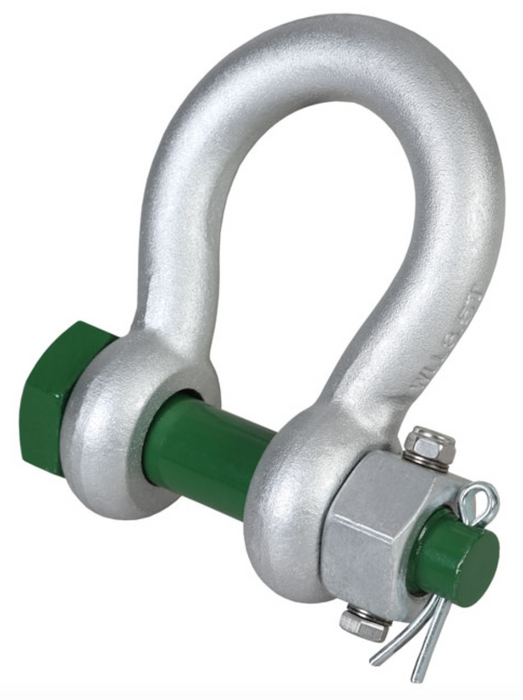

Green Pin Grade 6 Standard Bow Shackle with Fixed Nut Safety Pin

SKU 269-34-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price £64.52 - Original price £321.10
Original price
£64.52
£64.52 - £321.10
Current price £64.52

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

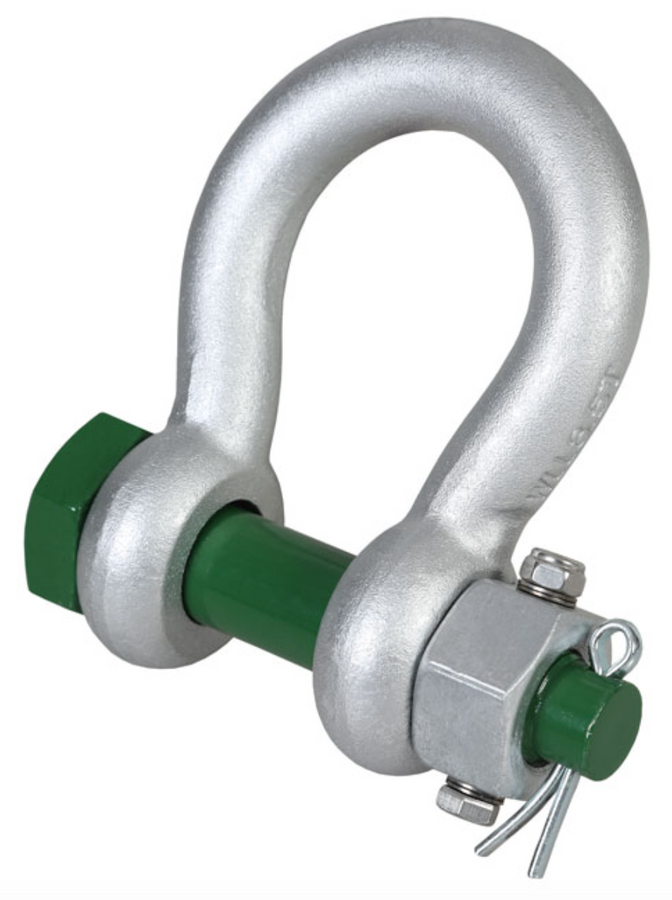

Green Pin Grade 6 Standard Bow Shackle with Fixed Nut Safety Pin

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised.
  • Conforms to BS EN 13889, ASME B30.26 and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Extra AISI 316 securing bolt drilled through the nut and shackle pin.
  • Complete with Nord-Lock® wedge-locking washers that lock when subjected to extreme vibration or dynamic loads.
  • Certification available  2.1    3.1    DoC    DNV GL 2.7-1
  • G-4143

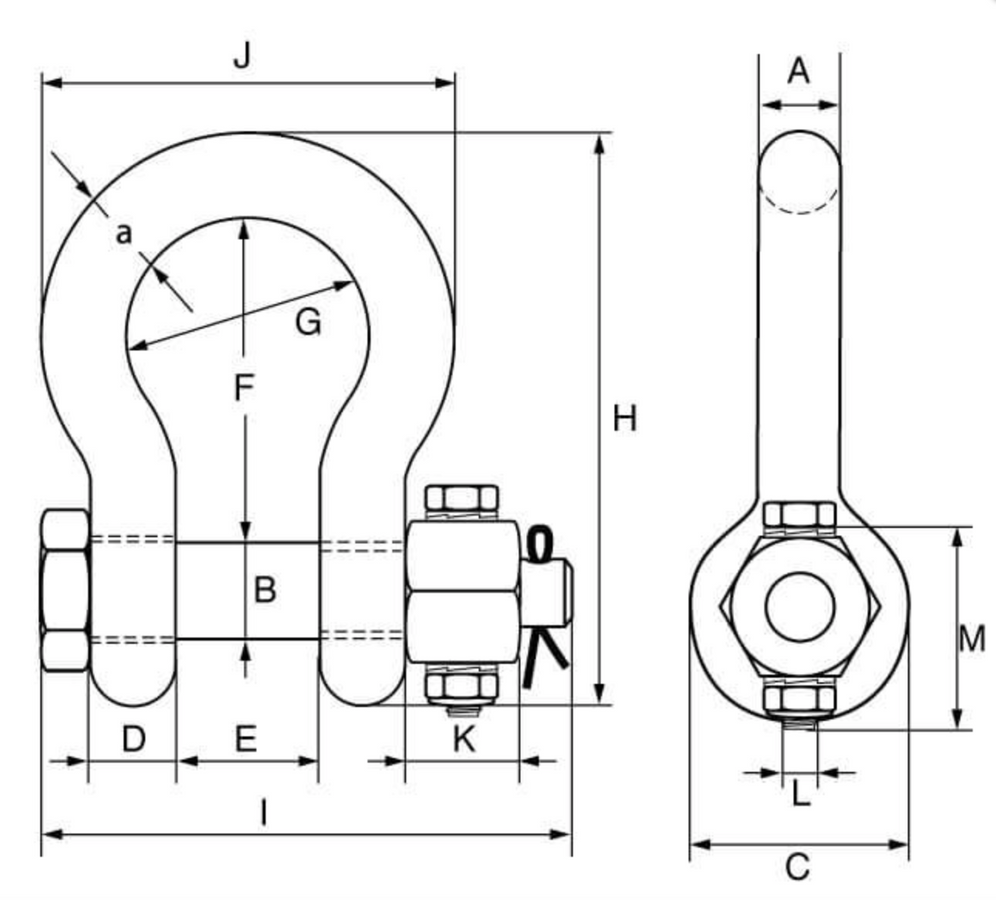

Spec

SKU W.L.L. A B C D E F G H I J K L M Torque Weight
t mm mm mm mm mm mm mm mm mm mm mm mm mm Nm kgs
269-34-1 2 13.5 16 34 13.5 22 51 32 89 82 63 13 M6 35 8.4 0.42
269-34-2 3.25 16 19 40 16 27 64 43 110 98 79 17 M6 40 8.4 0.74
269-34-3 4.75 19 22 47 19 31 76 51 129 114 94 19 M6 45 8.4 1.18
269-34-4 6.5 22 25 53 22 36 83 58 144 130 107 22 M8 50 20 1.77
269-34-5 8.5 25 28 60 25 43 95 68 164 150 124 25 M8 55 20 2.58
269-34-6 9.5 28 32 67 28 47 108 75 185 166 137 27 M10 60 39 3.66
269-34-7 12 32 35 74 32 51 115 83 201 178 154 30 M10 65 39 4.91
269-34-8 13.5 35 38 80 35 57 133 92 227 197 170 33 M10 70 39 6.54
269-34-9 17 38 42 89 38 60 146 99 249 202 183 19 M8 75 20 8.19
269-34-10 25 45 50 104 45 74 178 126 300 249 226 23 M8 90 20 14.22
269-34-11 35 50 57 111 50 83 197 138 331 269 250 26 M10 100 39 19.85
269-34-12 42.5 57 65 134 57 95 222 160 377 301 287 29 M12 110 68 28.33
269-34-13 55 65 70 145 65 105 260 180 433 330 329 32 M12 120 68 39.59
269-34-14 85 75 83 162 73 127 329 190 527 380 355 39 M12 140 68 62
