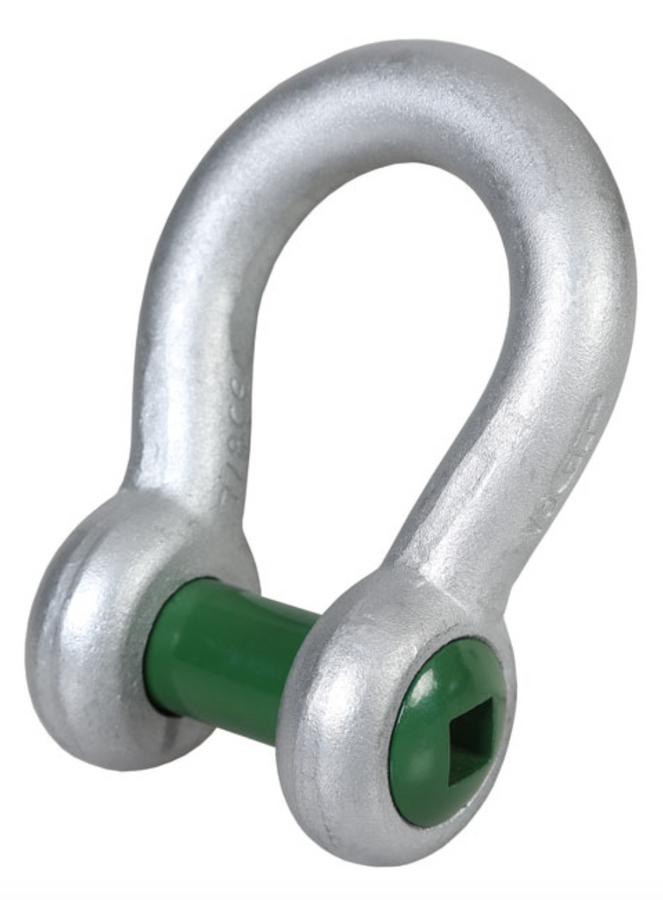

Green Pin Grade 6 Square Sunken Hole Bow Shackle
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Hot dipped galvanised finish.
- Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
- Minimum breaking load is 6 times the W.L.L.
- Temperature range -20ºC up to +200ºC.
- Key for unscrewing pin supplied separately (E-4170).
- Certification available
- G-4169
Spec

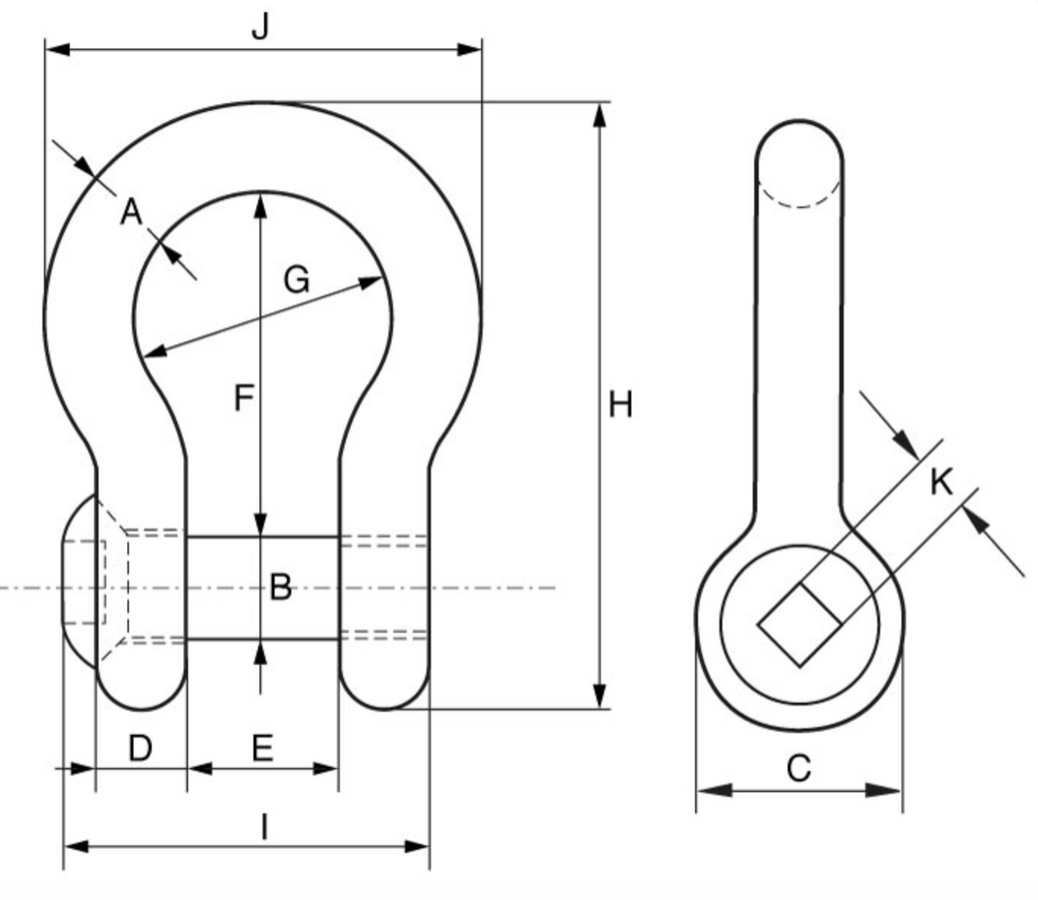

SKU | W.L.L. | A | B | C | D | E | F | G | H | I | J | K | Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kgs | |
269-29-1 | 2 | 13.5 | 16 | 34 | 13 | 22 | 51 | 32 | 89 | 51 | 58 | 11 | 0.31 |
269-29-2 | 3.25 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 63 | 75 | 11 | 0.56 |
269-29-3 | 4.75 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 74 | 89 | 11 | 0.98 |
269-29-4 | 6.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 85 | 102 | 13 | 1.46 |
269-29-5 | 8.5 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 99 | 118 | 13 | 2.18 |
269-29-6 | 9.5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 110 | 131 | 17 | 3.06 |
269-29-7 | 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 122 | 147 | 17 | 4.24 |
269-29-X | 13.5 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 227 | 135 | 162 | 17 | 5.59 |
269-29-8 | 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 145 | 175 | 17 | 7.37 |
