Goliath - 6AFID - 500kg SWL

by Goliath
SKU 151-5-3
Availability:
2 in stock, ready to be shipped
Original price £510.00 - Original price £510.00
Original price
£510.00
£510.00 - £510.00
Current price £510.00

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

🚚 Order within the next 2 hours, 15 minutes for delivery by 08 Dec, 2025.

Description

AFID Winch Data Sheet

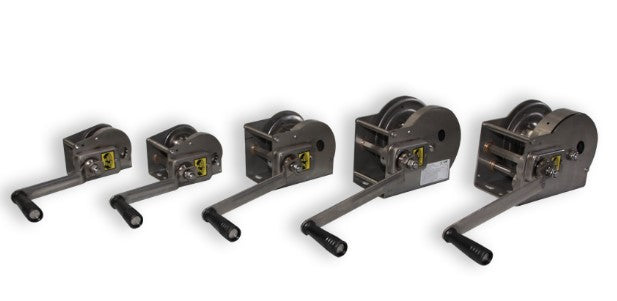

5 models offering a lifting capacity from 190kg up to 900kg

Column or base mounting
Stainless Steel 316L material, ideal for marine and other outdoor applications in corrosive environments.
Lightweight
Smooth running, high efficiency through spur gearing
Automatic load pressure brake
Stamped gears with gear protection
Complies with BS EN 13157
For wire ropes or webbing
Haulage load capacity based on 20% incline
Minimum load for the brake to function = 10kg

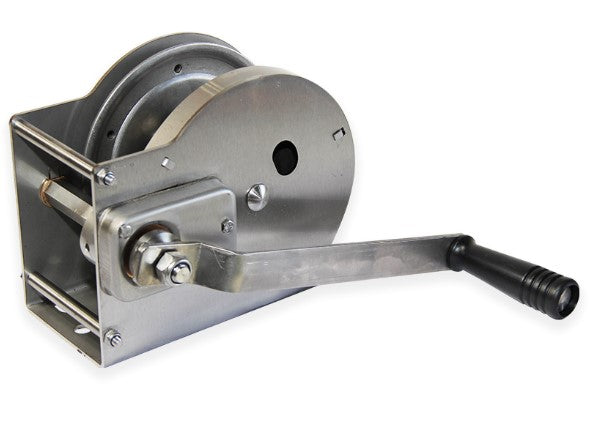

GO-AFID - Goliath Stainless Steel (316L) Wire Rope Winch

 Spec

 Type    GO-4AFMID-190 GO-4AFID-340 GO-6AFID-500 GO-8AFID-650 GO-12AFID-900
Order Code 151-5-1 151-5-2 151-5-3 151-5-4 151-5-5
Lifting Capacity 1st Layer:  KG 190 Kg 340 Kg 500 Kg 650 Kg 900 Kg
Lifting Capacity Last Layer: KG 80 Kg 190 Kg 240 Kg 270 Kg 490 Kg
Haulage Capacity:  KG 350 Kg 500 Kg 750 Kg 900 Kg 1500 Kg
Rope Capacity 1st Layer: M 1 m 2 m 2 m 2 m 2 m
Rope Capacity Total: M 8 m 10 m 12 m 19 m 12 m
Rope Diameter:  MM 3 mm 4 mm 5 mm 6 mm 7 mm
No. of Layers: N/A 8 4 5 7 5
Ratio: N/A 2.57:1 2.57:1 3.5:1 4.85:1 9.71:1
Required Effort: N/A 15 N 24 N 24 N 23 N 25 N
Weight:  KG 2.2 2.8 4.4 5.2 7.6



**As Standard supplied without Wire Rope or Webbing - Prices available on request**

 Technical Area

Goliath AFID Stainless winchProduct data sheet

 Dimensions

Legislation

Material Certification for Stainless (316)
