Goliath - 4AFMID - 190kg SWL

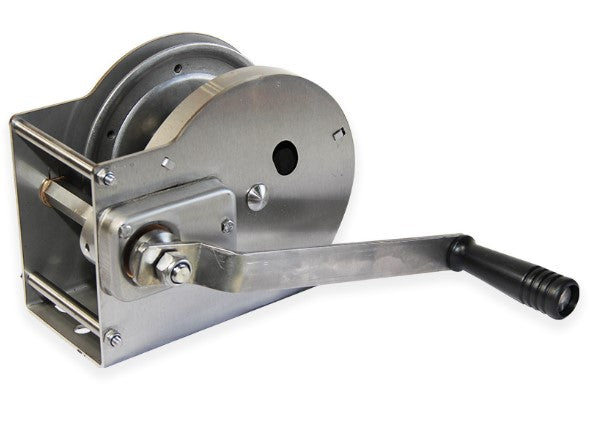

Goliath - 4AFMID Stainless Steel Hand Winch - 190kg SWL

by Goliath
$517.00 - $517.00
$517.00
$517.00 - $517.00
$517.00

Delivery Lead-Time from Order

The current lead-time for this product is 1 to 2 weeks.

If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with a 1 to 2 week lead-time please pre-order online.

Description

4AFMID - Goliath Stainless Steel (316L) Hand Winch

Lifting capacity 190kg

Stainless Steel 316L material, ideal for marine and other outdoor applications in corrosive environments.

Can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate. (note winch plate is zinc plated finish only)

Key Features

  • Lightweight
  • Smooth running and high efficiency through spur gearing
  • Automatic load pressure brake
  • Stamped gears with gear protection
  • Complies with BS EN 13157
  • For use with wire rope (available as extra cost option contact our sales department for a personalised quote)
  • Haulage load capacity based on 20% incline
  • Minimum load for the brake to function = 10kg

GO-AFID - Goliath Stainless Steel (316L) Wire Rope Winch

**As Standard supplied without Wire Rope or Webbing - Prices available on request**

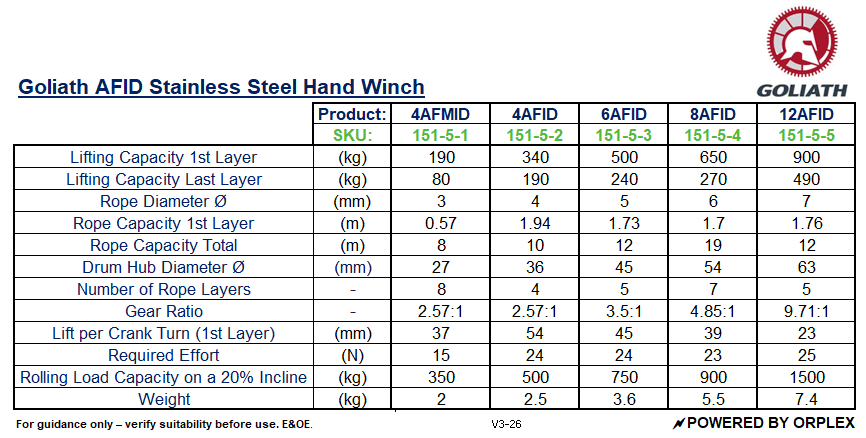

Specification

Specification

Dimensions

Goliath - 4AFMID Stainless Steel Hand Winch - 190kg SWL - Dimensions image

Legislation

Download - Material_Certificate_-_Goliath_AFID_Winches_47bb3343-a926-4c1d-be98-7b0a5c265dbd.pdf

Manufacturers Spec

Download - 151-5_AFID_Stainless_Steel_Hand_Winch_Download_V2-26.pdf
Download - Dimensions_for_AFD_AFID_AFDS_Winches.pdf
