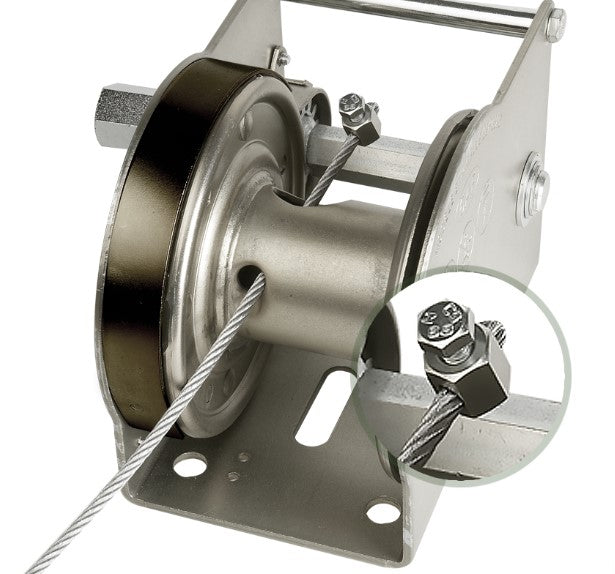

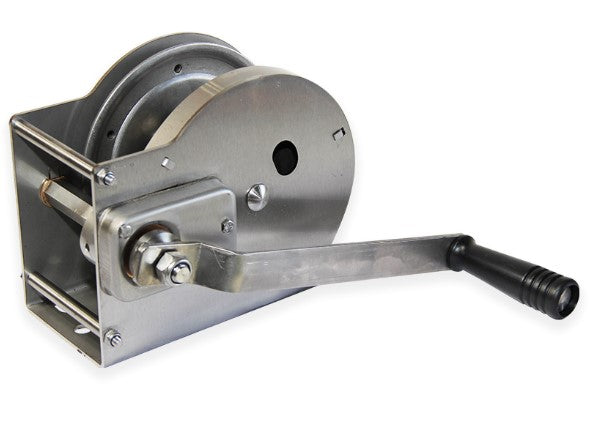

Goliath - 4AFID Stainless Steel Hand Winch - 340kg SWL

Goliath - 4AFID Stainless Steel Hand Winch - 340kg SWL

by Goliath
SKU 151-5-2
£484.51 - £484.51
£484.51
£484.51 - £484.51
£484.51

Delivery Lead-Time from Order

The current lead-time for this product is 1 to 2 weeks.

If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with a 1 to 2 week lead-time please pre-order online.

Description

The Goliath 4AFID is a 340kg SWL stainless steel hand winch in 316L, a compact mid range unit for marine, trailer and outdoor lifting in corrosive conditions.

Goliath 4AFID 340kg stainless steel hand winch

  • Safe working load of 340kg for mid range hauling and lifting

  • Lightweight 2.8kg body in 316L stainless steel

  • Automatic load pressure brake, needing a 10kg minimum load to hold

  • Spur gearing for smooth, efficient winding

  • Stamped gears with gear protection

  • Complies with BS EN 13157

Fitting and use

  • Column, base or wall mounted with an optional plate

  • Supplied without wire rope or webbing, priced on request

  • Haulage capacity rated on a 20 percent incline

  • Suited to boats, trailers and gates in salt air

Step up to the 500kg 6AFID for heavier work, or browse the 201kg to 500kg manual winch range. Fit it to a flat surface with the wall mounting plates.

GO-AFID - Goliath Stainless Steel (316L) Wire Rope Winch

**As Standard supplied without Wire Rope or Webbing - Prices available on request**

Back to top

Specification

Specification
Back to top

Dimensions

Goliath - 4AFID Stainless Steel Hand Winch - 340kg SWL - Dimensions image
Back to top

Legislation

Download - Material_Certificate_-_Goliath_AFID_Winches_47bb3343-a926-4c1d-be98-7b0a5c265dbd.pdf
Back to top

Manufacturers Spec

Download - 151-5_AFID_Stainless_Steel_Hand_Winch_Download_V2-26.pdf
Download - Dimensions_for_AFD_AFID_AFDS_Winches.pdf
