Goliath - 12AFID Stainless Steel Hand Winch - 900kg SWL

Goliath - 12AFID Stainless Steel Hand Winch - 900kg SWL

by Goliath
SKU 151-5-5
£1,149.48 - £1,149.48
£1,149.48
£1,149.48 - £1,149.48
£1,149.48

Delivery Lead-Time from Order

The current lead-time for this product is 1 to 2 weeks.

If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with a 1 to 2 week lead-time please pre-order online.

Description

The Goliath 12AFID is the 900kg SWL flagship of the AFID stainless steel hand winch range, built in 316L stainless for marine and other corrosive outdoor sites.

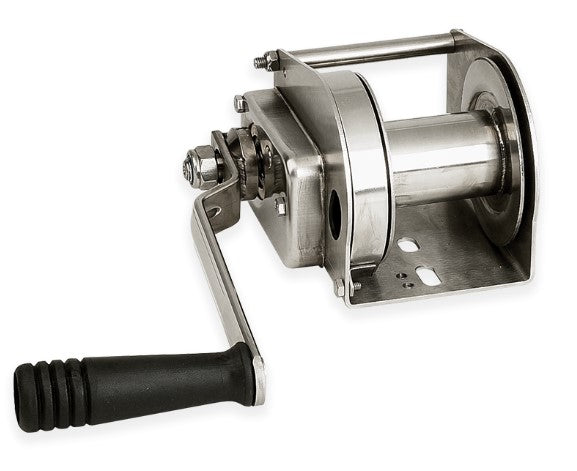

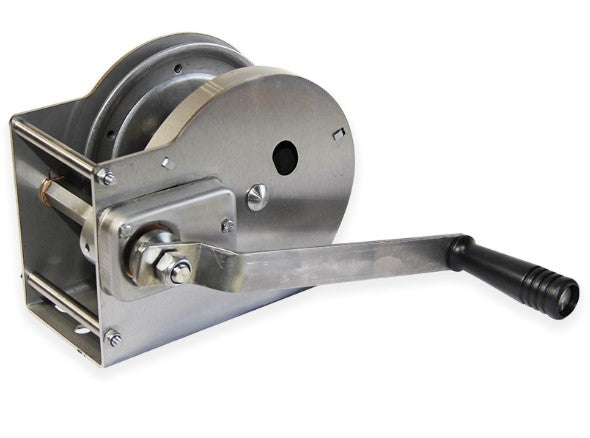

Goliath 12AFID 900kg stainless steel hand winch

  • Safe working load of 900kg, the highest capacity in the AFID family

  • 316L stainless steel construction for salt and marine environments

  • Unit weight 7.6kg for its 900kg rating

  • Automatic load pressure brake, needing a 10kg minimum load to engage

  • Smooth, high efficiency spur gearing with stamped, protected gears

  • Complies with BS EN 13157

Mounting and rope options

  • Column or base mounted as standard, or wall mounted with an optional plate

  • Supplied without wire rope or webbing, which is available on request

  • Haulage capacity rated on a 20 percent incline

Choose the 900kg 12AFID for heavy industrial and dockside lifting. For lighter loads see the automatic brake winch range, or add a bracket from the wall mounting plates.

GO-AFID - Goliath Stainless Steel (316L) Wire Rope Winch

**As Standard supplied without Wire Rope or Webbing - Prices available on request**

Back to top

Specification

Specification
Back to top

Dimensions

Goliath - 12AFID Stainless Steel Hand Winch - 900kg SWL - Dimensions image
Back to top

Legislation

Download - Material_Certificate_-_Goliath_AFID_Winches_47bb3343-a926-4c1d-be98-7b0a5c265dbd.pdf
Back to top

Manufacturers Spec

Download - 151-5_AFID_Stainless_Steel_Hand_Winch_Download_V2-26.pdf
Download - Dimensions_for_AFD_AFID_AFDS_Winches.pdf
