Gebuwin Pulleys (Pulley only) 150-7500kg

by Gebuwin
SKU 156-20-3A
Availability:
Out of stock
Availability:
Out of stock
Availability:
3 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Original price $48.00 - Original price $623.00
Original price
$106.00
$48.00 - $623.00
Current price $106.00
Inc Vat
Model: KB600 - 600kg - Pulley Ø120mm - Max rope Ø6mm

Bespoke Pulleys

If you are looking for a special pulley / sheave we offer a bespoke service to have them manufactured, please download our pulley form as we will require specific details. Pulley Enquiry Form

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

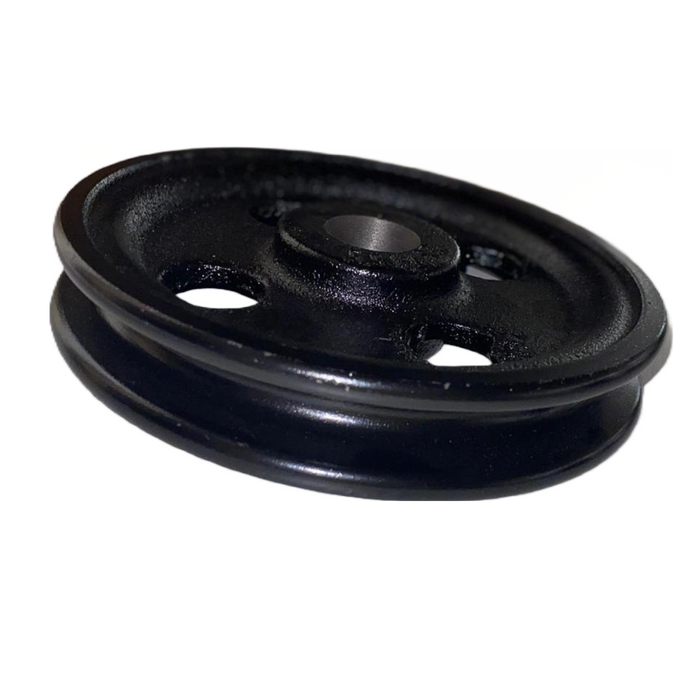

Pulley KB 150-7500 kg

*****(Pulley only no bracket)******

The Gebuwin pulley are solidly manufactured and are specially developed for hand winch applications.

Product specifications

  • Robust construction due to a cast iron cable pulley in a steel frame
  • Suitable only for hand winch applications
  • Cable pulleys are fitted with sliding bearings
  • The numbers in the product name correspond with the maximum load capacities
  • Standard paint finish in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M

The coding for the Pulleys is as follows: The first two letters refer to the type and the subsequent numbers refer to the hoisting capacity in kg’s. A few letters then follow; these refer to the surface treatment of the product. The explanation for the coding is as follows:

SKU    156-20-1a 156-20-2a 156-20-3a 156-20-4a 156-20-5a 156-20-6a 156-20-7a
Model   KB150 KB300 KB600 KB1500 KB2000 KB4000 KB7500
Max Capacity (kg) 150 300 600 1500 2000 4000 7500
Max DIA Cable (mm) 4 4 6 10 12 16 21
DIA of Pulley Wheel (mm) 90 100 120 155 220 260 310
Bore (mm) 14.1 14.1 25.1 25.1 35.1 35.1 45.1
Weight (kg) 1 1 1.5 3 6.5 11.5 21




Type coding:
KB = Pedestal

Version coding:
GR = grey (RAL 7035) / black (RAL 9005) painted according to DIN 12944-C1    EV = electrolyte zinc plated, min. 6 microns

Technical Area:

Pulley Cat 2018
