Gebuwin ATEX Spur Gear Hand Winch 300kg

by Gebuwin
SKU 156-15-31
Availability:
Out of stock
Awaiting Stock
Original price $652.00 - Original price $652.00
Original price
$652.00
$652.00 - $652.00
Current price $652.00

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

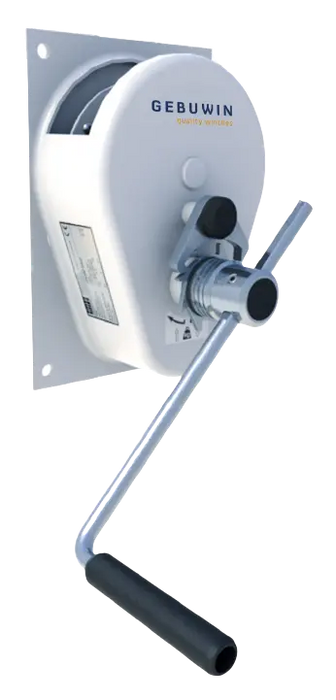

Gebuwin ATEX Spur Gear Hand Winch 300kg

This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.

  • winch suitable for lifting and pulling in compliance with EN13157
  • static safety factor 4
  • load pressure brake with double ratchet system for safe stable hold of the load
  • cable outlet upwards
  • adjustable crank
  • suitable for wall mounting
  • 1 layer of paint

Spec

Capacity 1st layer

300 kg

Capacity 4th layer

234 kg

Capacity top layer

172 kg

Rope diameter-Ø

4 mm

Rope storage 1st layer

2,3 meter

Rope storage 4th layer

12,5 meter

Rope storage top layer

35,4 meter

Lift per crank rotation

32 mm

Crank effort at full load

5,5 daN

Weight (without rope)

10 kg
