Gebuwin ATEX Spur Gear Hand Winch 150kg
Quantity Required Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

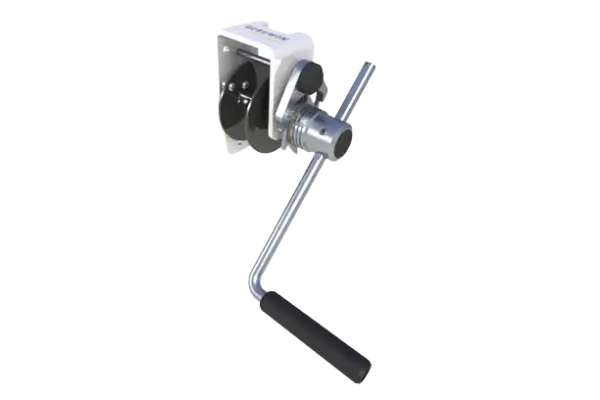

Gebuwin ATEX Spur Gear Hand Winch 150kg
This small spur gear winch is known for its high speed due to its direct drive. This fast and easy winch is a very compact lightweight of 4 kg and extremely suitable for smaller work.
- winch suitable for lifting and pulling in compliance with EN13157
- static safety factor 4
- load pressure brake with double ratchet system for safe stable hold of the load in any position
- cable outlet upwards
- adjustable crank
- suitable for wall mounting
- 1 layer of paint
Spec
Capacity 1st layer |
150 kg |
---|---|
Capacity 4th layer |
98 kg |
Capacity top layer |
67 kg |
Rope diameter-Ø |
4 mm |
Rope storage 1st layer |
0,7 meter |
Rope storage 4th layer |
4,9 meter |
Rope storage top layer |
13,1 meter |
Lift per crank rotation |
122 mm |
Crank effort at full load |
10 daN |
Weight (without rope) |
4 kg |
