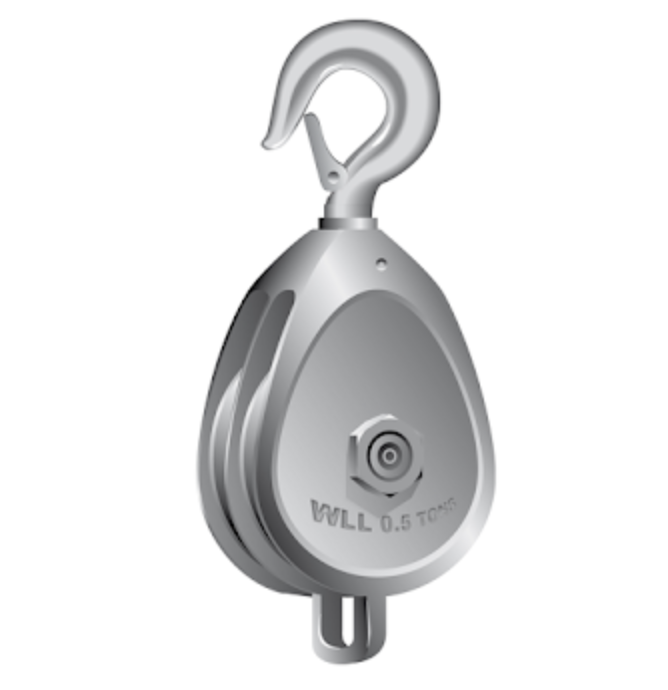

Galvanised Malleable Iron Block Swivel Hook
Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk
- Galvanised malleable iron body.
- Hot dipped galvanised finish.
- Fitted with plain bore as standard with grey iron sheave.
- Also available with steel sheave and bronze brush.
- Marked with CE, W.L.L, size and rope.
- Certification available DoC
- For use with fibre rope.
Spec
Size |
Fibre Rope Dia |
Single Sheave | Double Sheave | Treble Sheave | Fibre Rope Dia | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
inch | mm | SKU | Product Code | W.L.L. t | Weight kgs | SKU | Product Code | W.L.L. t | Weight kgs | SKU | Product Code | W.L.L. t | Weight kgs | mm |
3 | 12 | 286-537-1 | GMIBHS3 | 0.2 | 0.9 | 286-537-10 | GMIBHD3 | 0.4 | 1 | 286-537-20 | GMIBHT3 | 0.6 | 1.9 | 12 |
4 | 16 | 286-537-2 | GMIBHS4 | 0.4 | 1.5 | 286-537-11 | GMIBHD4 | 0.9 | 2 | 286-537-21 | GMIBHT4 | 1 | 2.6 | 16 |
5 | 18 | 286-537-3 | GMIBHS5 | 0.5 | 2.2 | 286-537-12 | GMIBHD5 | 1.1 | 3.3 | 286-537-22 | GMIBHT5 | 1.5 | 5 | 18 |
6 | 24 | 286-537-4 | GMIBHS6 | 1 | 4 | 286-537-13 | GMIBHD6 | 2 | 5.5 | 286-537-23 | GMIBHT6 | 3 | 7 | 24 |
Product data sheet (COMING SOON)
