Eureka Wirelock
Quantity Required Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

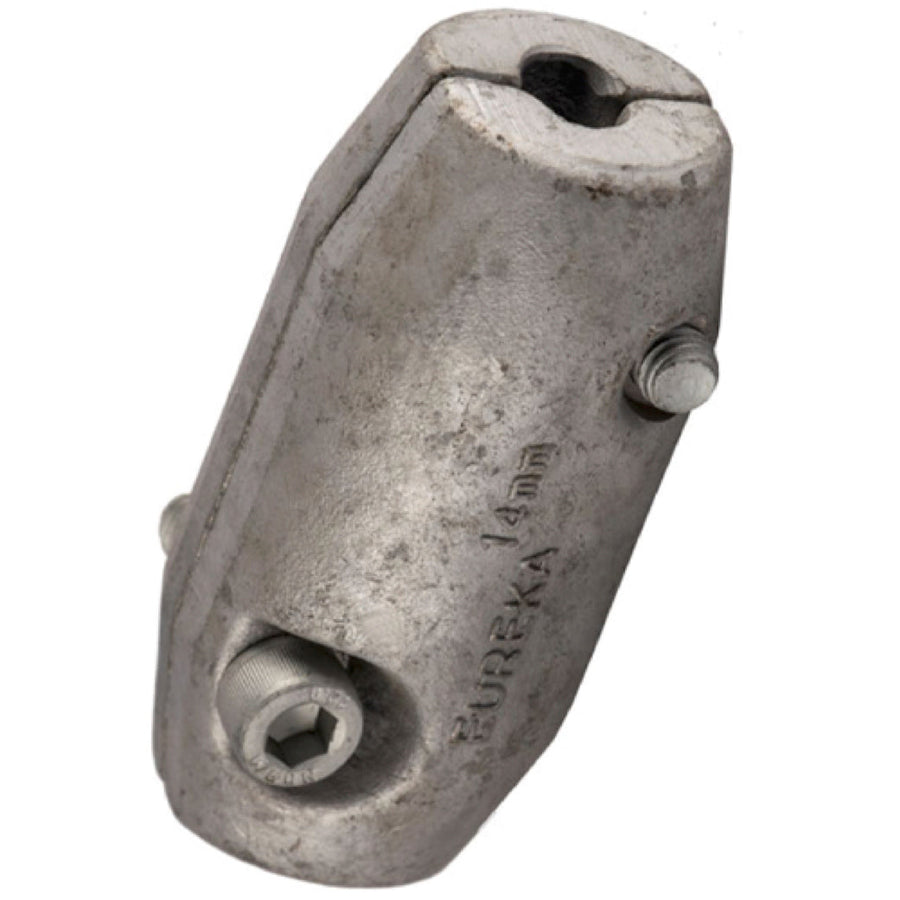

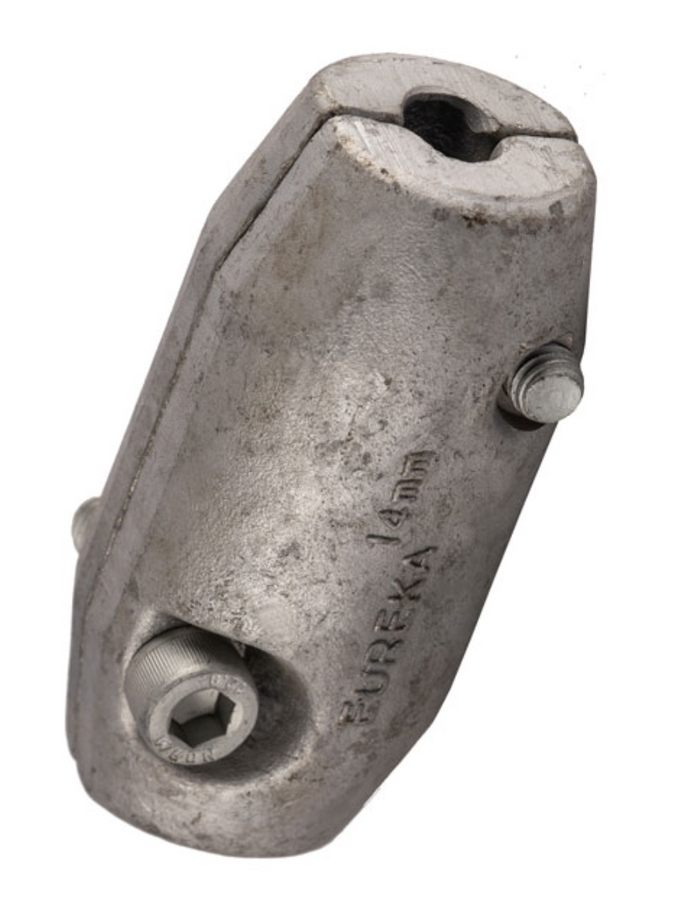

Eureka Wirelock
- Wire rope clamp approved for lifting.
- Rope dia 4-5 and 6 – cast steel zinc plated finish.
- Rope dia 8 to 15-16 – drop forged steel hot dipped galvanised.
- Certification available DoC
Spec

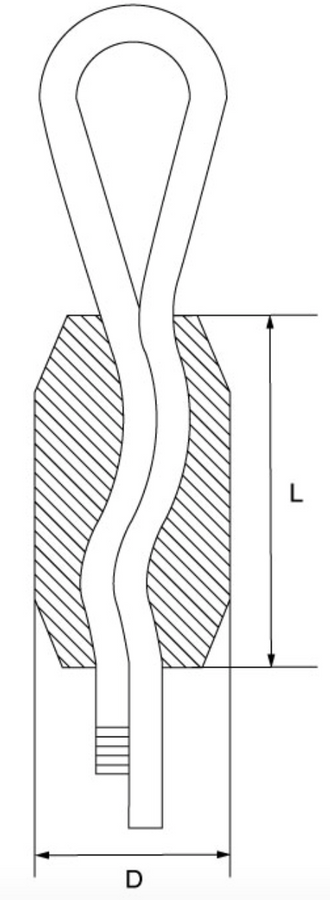

SKU | Rope Dia | Bolt No. | Torque | L | D | Weight |
---|---|---|---|---|---|---|
mm | Nm | mm | mm | kgs/100 | ||
286-803-1 | 4-5 | 2 | 6 | 27 | 22 | 6.5 |
286-803-2 | 6 | 2 | 15 | 42 | 28 | 14 |
286-803-3 | 8 | 2 | 18 | 50 | 33 | 24 |
286-803-4 | 9-10 | 2 | 30 | 63 | 42 | 52 |
286-803-5 | 11 | 2 | 30 | 62 | 43 | 52 |
286-803-6 | 12-13 | 2 | 70 | 82 | 48 | 80 |
286-803-7 | 14 | 2 | 70 | 106 | 50 | 115 |
286-803-8 | 15-16 | 4 | 115 | 100 | 62 | 170 |
