Electric e-Winch

by Gebuwin
SKU 156-36-1
Original price $2,966.00 - Original price $9,138.00
Original price
$2,966.00
$2,966.00 - $9,138.00
Current price $2,966.00
Inc Vat
WLL: 250kg
Limits: No

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

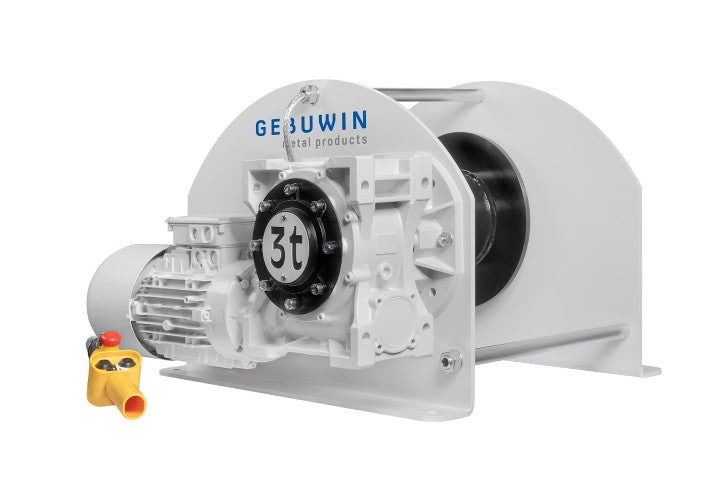

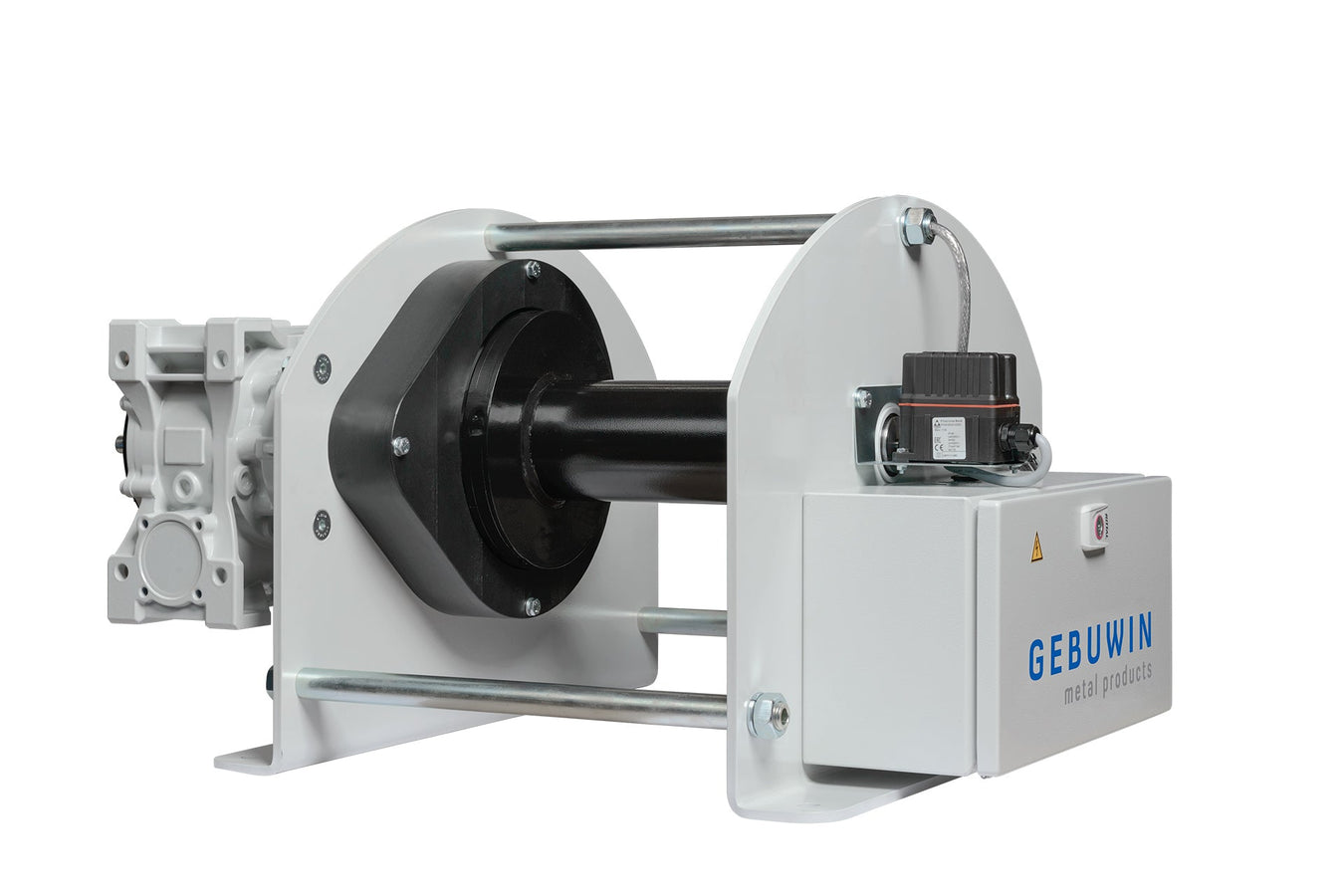

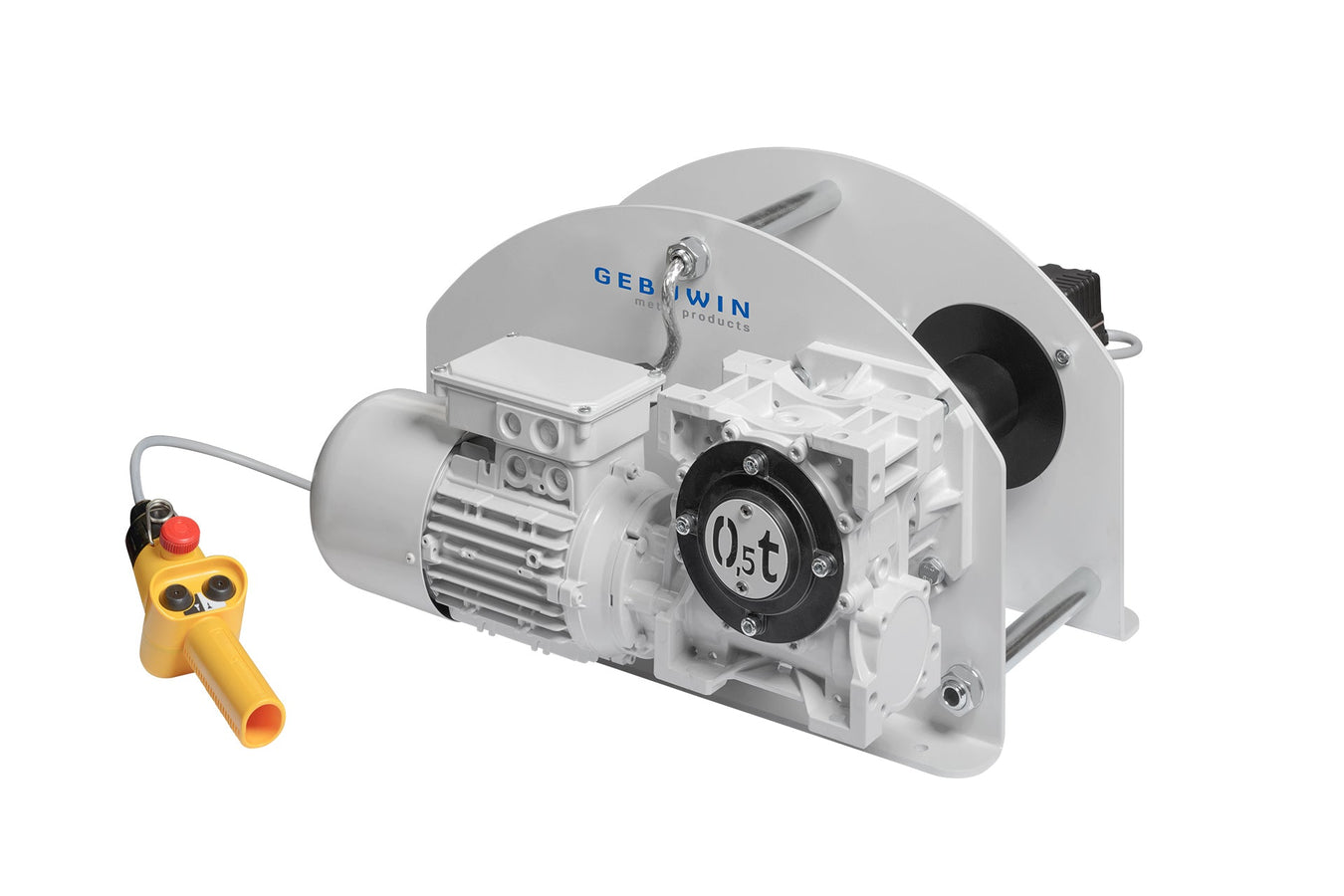

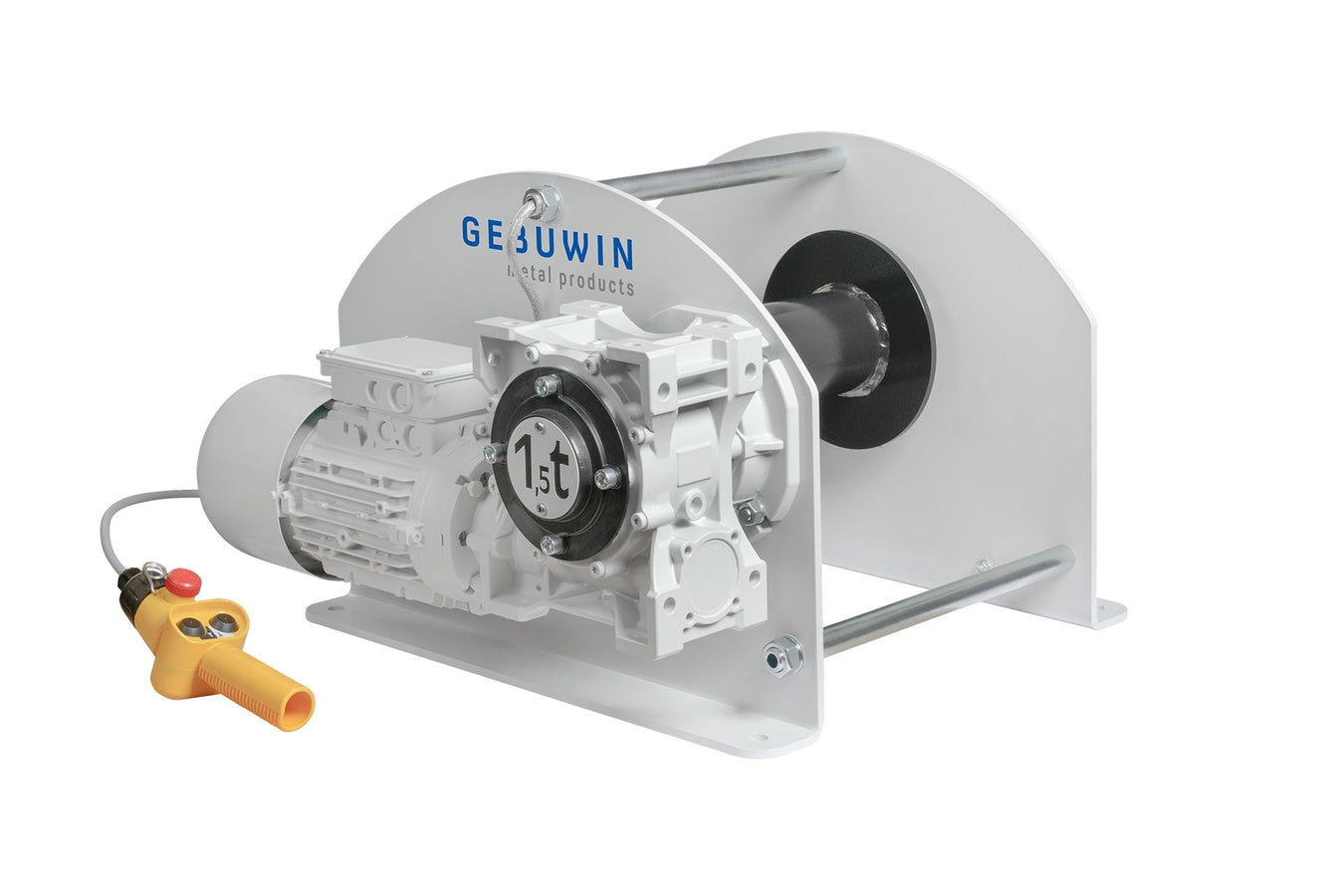

This electric winch is truly one of Gebuwin’s eye catchers. It’s a robust winch that has been reissued by Gebuwin this year and in which the team of engineers have incorporated all of today’s innovations.

This makes Gebuwin’s e-Winch a nice strong but affordable product in its price class. Gebuwin hopes to be able to satisfy its customers even better with this winch. This winch is suitable for both lifting* and pulling applications and is equipped with a powerful three-phase motor. Strong in its power, caring for your budget.

*The e-Winch is available with or without limits, if used for lifting applications limits are required above for all models with a WLL above 1,000kg.

Please note this product has a minimum lead-time of 8 to 10 weeks depending on the model. Please email sales@winchshop.co.uk for a formal quotation, specifying any additional items required.

Spec

  • Robust and safe electric lifting and pulling winch
  • Maintenance free bearings
  • Protection classification IP54, insulation class F
  • Standard overload protection as from 1000 kg
  • Powerful three-phase motor for multirange voltage 380 – 415V / 50 Hz or 60 Hz

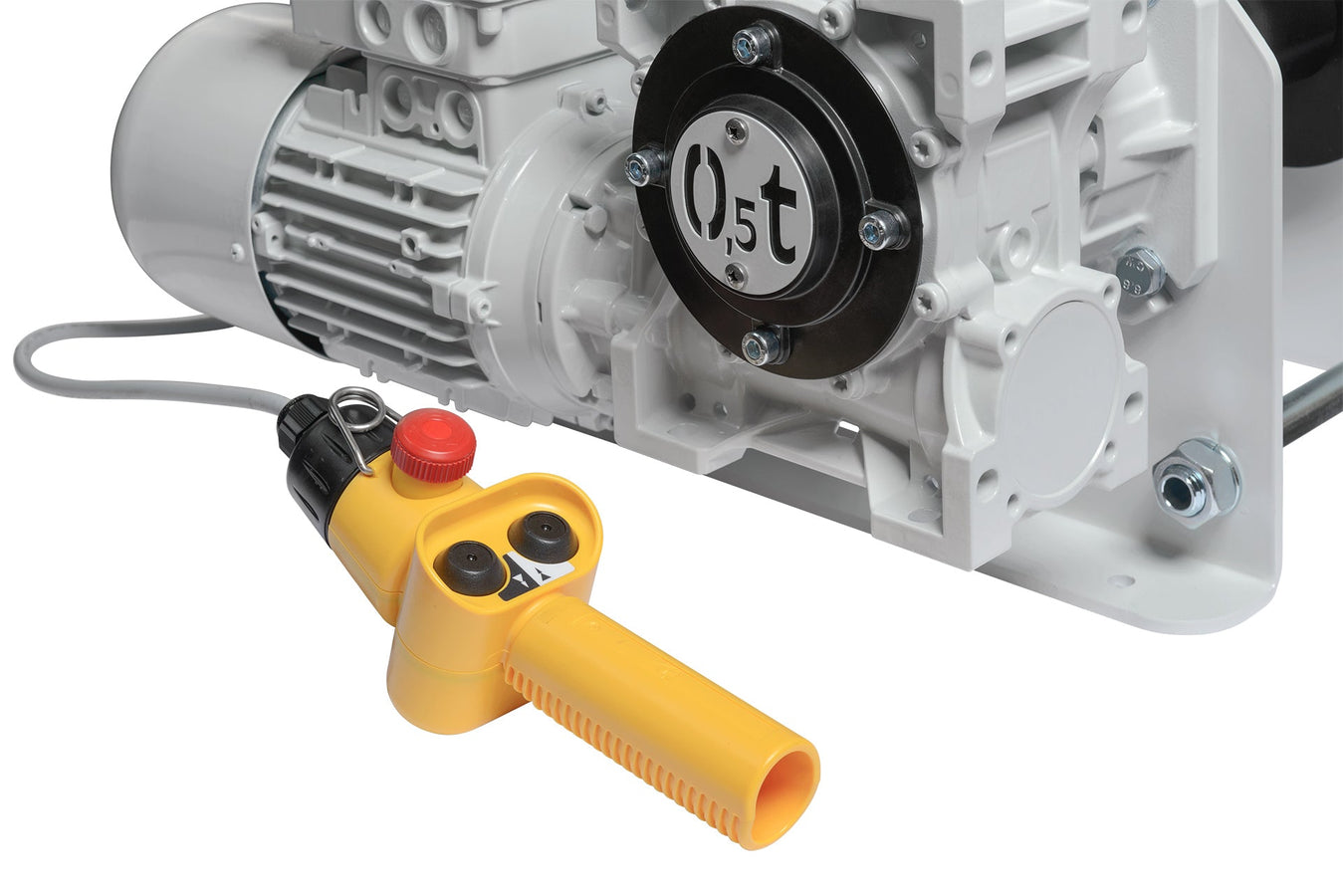

  • 1 speed pendant control with 1m cable
  • Standard 2 meter power cable including 16A CEE plug
  • Paint thickness is 60-80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL7035/9005

Options

  • Pendant control switch*
  • Control cable per metre (additional)
  • Increase in cable storage
  • Grooved drum (GD)
  • Pressure roller (PR)
  • 2 drum compartment (2D)
  • Radio control (RC)
  • External limit switch (EL)
  • Protection class IP55 (IP55)
  • 2 speed available as from e-W1000 (2S)
  • Frequency control available as from eW1000 (FC)
  • Soft start/stop available as from e-W1000 (SS)
  • Low voltage control (48V) + overload protection***
  • Manual emergency crank

* Pendant control and 1 metre control cable included

*** 1000kg > low voltage & overload protection included

Downloads

  Duct rod data sheetProduct data sheet

Questions & Answers

Have a Question?

Ask a Question
  • How long is the pulling cable on the 1000kg model?

    Hi, its 100m as per the data sheet on our site, please see LINK
