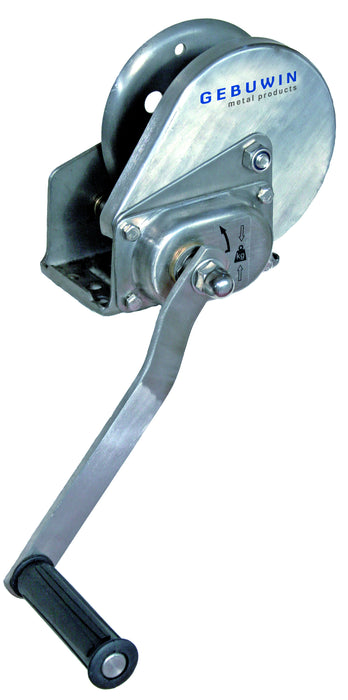

GEBUWIN -SPUR GEAR WINCHES-HOISTING HW 200-800 kg Ref: 156-18

by Gebuwin
SKU 156-18-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $104.00 - Original price $877.00
Original price
$104.00
$104.00 - $877.00
Current price $104.00
Model: HW200 GR
Finish: GR
Capacity (Kg): 200

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

GEBUWIN -SPUR GEAR WINCHES-HOISTING  HW 200-800 kg Ref: 156-18

Gebuwin has two ranges of spur gear winches which are used for hoisting loads. All of the spur gear winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The hoisting capacities are calculated according to the first cable layer on the cable drum. Due to the minimal friction loss in the transmission, the spur gear winches have a high performance efficiency. Most parts are made from steel and have been either painted or zinc plated.

The coding is as follows: The first two letters refer to the type and the subsequent numbers refer to the hoisting capacity in kg’s. A few letters then follow; these refer to the surface treatment and the type of winch. The explanation for the coding is as follows:

Type coding:
HW = economy hand driven winches
TL = spur gear winches

Version coding:
D = cable drum for 1 cable
2D = cable drum for 2 cables
GR = grey (RAL 7035) / black (RAL 9005) painted according to DIN 12944-C1
EV = electrolyte zinc plated, min. 6 microns
SS = stainless steel 14301
EX = ATEX 114 certified for zones 2 and 22 (TC only)

Spec

Technical specifications HW200 HW800
1st cable layer (kg) 200 800
Last cable layer (kg) 86 491
Crankforce 1st cable position (daN) 8 13
Hoisting length by one rotation of the crank, 1st layer (mm) 40 26
Cable capacity (m) 31 15
Diameter cable (mm) 4 8
Min. breaking load cable (kN) 9 34
Own weight (kg) 4 10



Tech Area

Gebuwin HW 200Data Sheet
