Doughty Heavy Duty Pulley, Triple Sheave

Doughty Heavy Duty Pulley, Triple Sheave

by Doughty
SKU 300-54-3
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Sold out
£196.84 - £358.97
£196.84
£196.84 - £358.97
£196.84

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

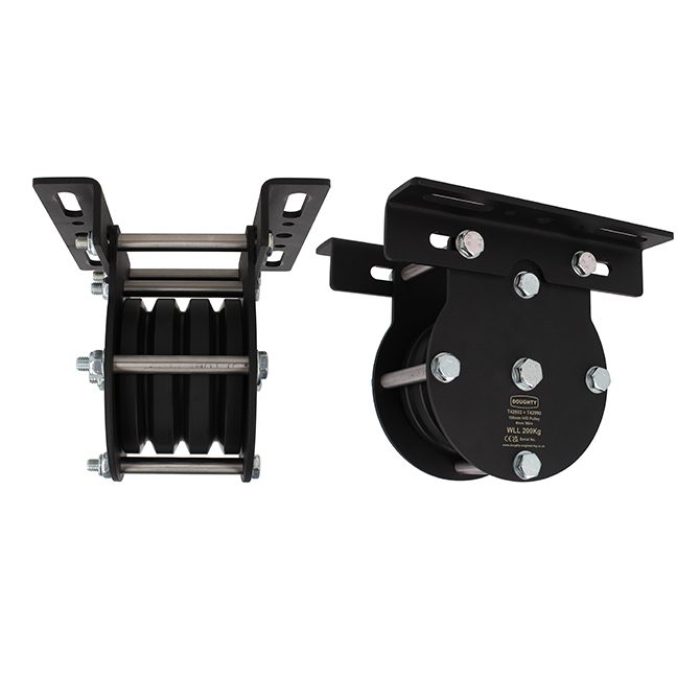

Doughty Heavy Duty Pulley, Triple Sheave, for Wire or Rope

A basic triple sheave pulley ready to accept any of our Doughty range of fixings.

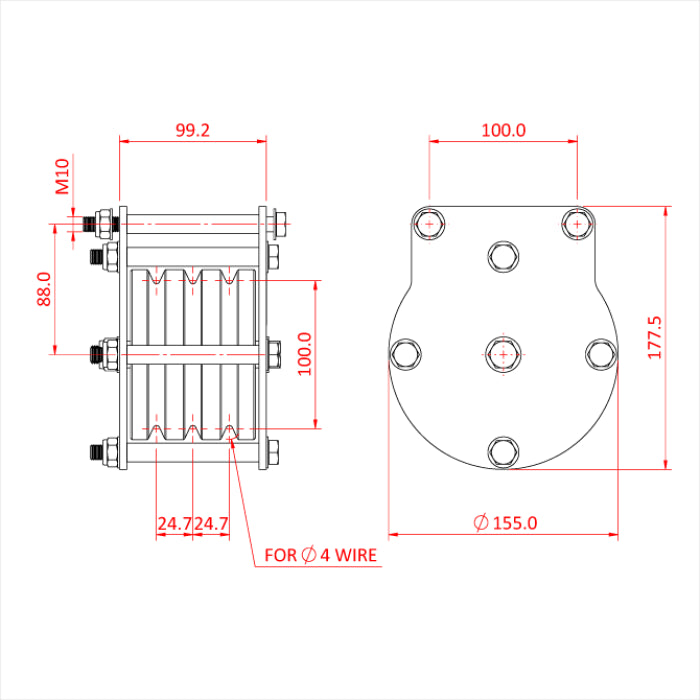

Available from 100mm Diameter to 200mm Diameter, for Wire or Rope.

The recommended sizes and for Hand Ropes & Wires are:

100mm Diameter Sheave - 12mm Rope – 4mm Wire

150mm Diameter Sheave - 18mm Rope – 6mm Wire

200mm Diameter Sheave - 18mm Rope – 6mm Wire

Spec

SKU 300-54-3: 100mm (triple sheave) for wire - SWL 200 Kg

SKU 300-55-3: 150mm (triple sheave) for wire - SWL 400 Kg

SKU 300-56-3: 200mm (triple sheave) for wire - SWL 600 Kg

SKU 300-57-3: 100mm (triple sheave) for rope - SWL 200 Kg

SKU 300-58-3: 150mm (triple sheave) for rope - SWL 400 Kg

SKU 300-59-3: 200mm (triple sheave) for rope - SWL 600 Kg
