Doughty Heavy Duty Multibeam Brackets WLL 600kg

Doughty Heavy Duty Multibeam Brackets WLL 600kg

by Doughty
SKU 300-61-7
£71.06 - £72.05
£72.05
£71.06 - £72.05
£72.05

Delivery Lead-Time from Order

The current lead-time for this product if not in stock in our warehouse can vary from 3 to 4 weeks.

If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with a 3 to 4 week lead-time please pre-order online and we will confirm order details by email after you have ordered.

Description

Doughty Heavy Duty Multibeam Girder Brackets

A pair of mild steel universal drilled and slotted angle brackets for heavy duty pulleys. Ideal for making upright guide, wall-ceiling mounted pulleys, or used with U bolts to mount on barrel. Black powder paint finish. Safety factor of 5:1.

Suits any sized heavy duty Doughty pulley.

WLL: 600kg

Available in two sizes:

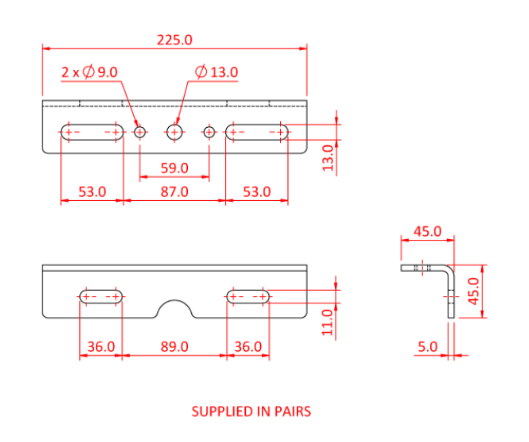

  • 75mm - 150mm (3" - 6") girders (225mm) SKU:300-61-7

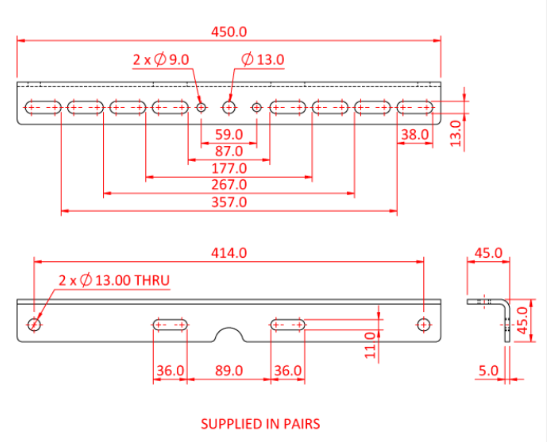

  • 150mm - 300mm (6" - 12") girders (450mm) SKU:300-61-9

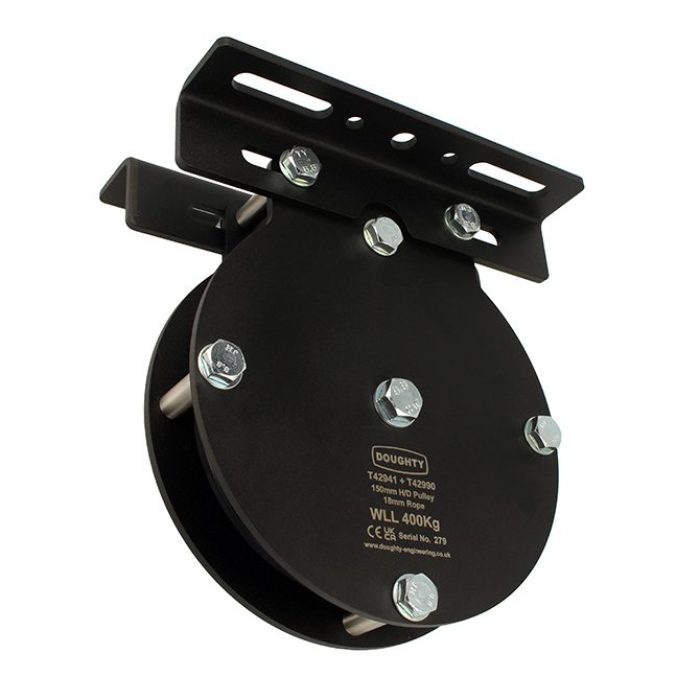

Please note: Pictures are for reference purposes only, pulleys shown attached to fixing brackets are extra cost.

Pulleys are supplied without fixing brackets. The fixing brackets will need to be selected and ordered additionally to suit individual requirements. Fixing brackets must be factory fitted to the pulleys.
